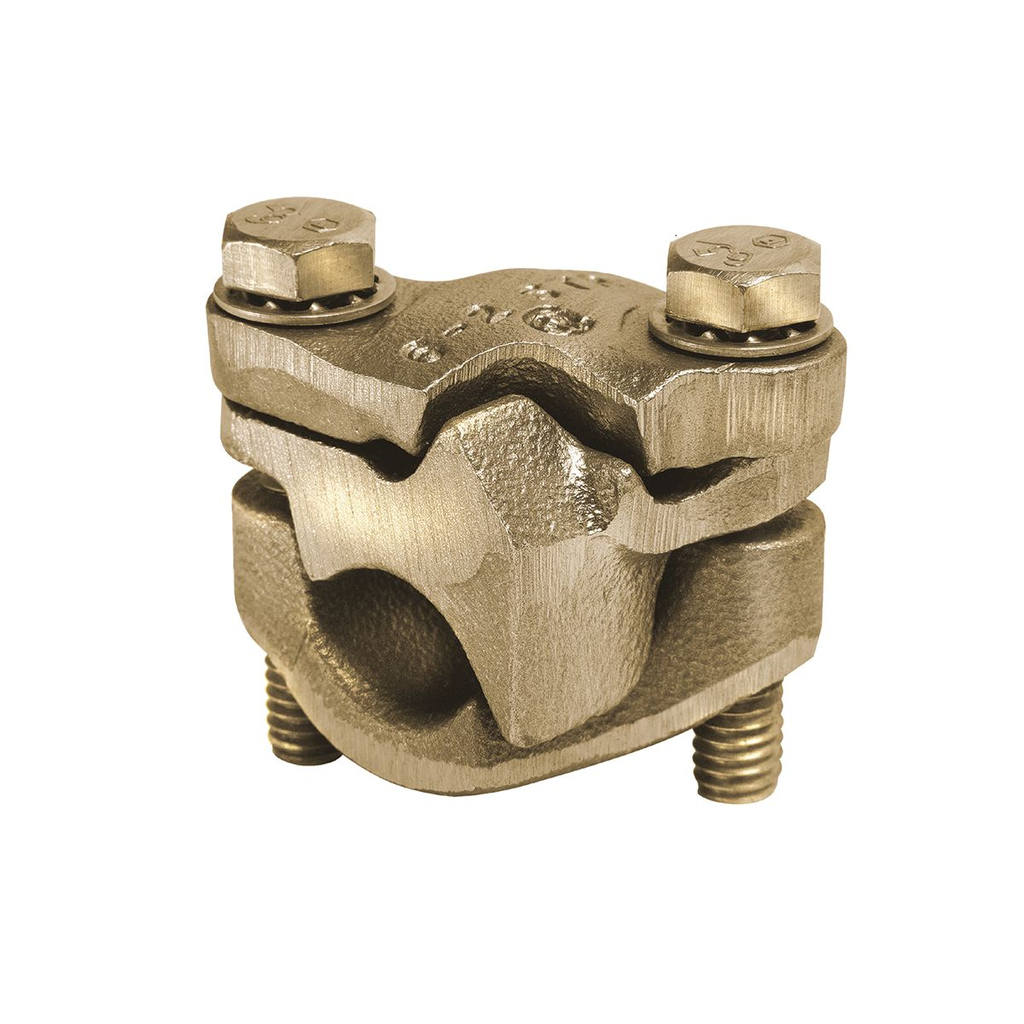

VERSITAP™ Mechanical Parallel Clamp for Copper, Run: 500-1000 kcmil, Tap: #1-4/0 AWG
SKU: #331784
Part: #QPX4428
UPC: 781810345252
VERSITAP™ Mechanical Parallel Clamp for Copper, Run: 500-1000 kcmil, Tap: #1-4/0 AWG
SKU: #331784
Part: #QPX4428
UPC: 781810345252
Description
VERSITAP™ Mechanical Parallel Clamp for Copper, Run: 500-1000 kcmil, Tap: #1-4/0 AWG - Copper Tapping Connector
The VERSITAP™ Mechanical Parallel Clamp by Burndy is a heavy-duty copper tapping connector designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It supports Tee, Cross, Parallel, Butt, and Tap configurations, accommodating copper conductor sizes from 500 to 1000 kcmil for the run and #1 to 4/0 AWG for the tap. This universal clamp is suitable for complex electrical distribution and lighting solutions where secure parallel connections are essential.
Specifications
- Application: For Tee, Cross, Parallel, Butt And Tap Connections
- Material: Copper
- Connection Type: Universal Clamp
- Run Conductor Range: 500-1000 kcmil
- Tap Conductor Range: #1 - 4/0 AWG
- Installation Torque: 240 in-lb
- Width: 2.44 in (62 mm)
- Height: 2.88 in (73.2 mm)
- Length Overall: 1.81 in (46 mm)
- Minimum Voltage Rating: 600 V
- Certification: UL Listed, CSA Approved, cULus Compliant
- Industry Standards: UL 486A-486B
- RoHS Compliance Status: EX
- Country of Origin: Mexico
- Product Weight: 1.26 lbs
- Manufacturer Part Number: QPX4428
Features
- Capable of Tee, Cross, Parallel, Butt, and Tap configurations
- Range-taking design requires only 10 connectors to cover conductor sizes from #6 stranded to 1000 kcmil
- Edges are rounded for easy taping
- High conductivity copper alloy center plate with high strength copper alloy clamping plates
- Clamped together by high strength DURIUM™ silicon bronze cap screws
