Versatile non conductive outlet box for new construction, single gang screw on. 22 cu inches. Ultra thin alignment tabs allows for no drywall buldge. 2 Hour Fire Rating.
SKU: #72315
Part: #FN101FL
UPC: 018997098146
Versatile non conductive outlet box for new construction, single gang screw on. 22 cu inches. Ultra thin alignment tabs allows for no drywall buldge. 2 Hour Fire Rating.
SKU: #72315
Part: #FN101FL
UPC: 018997098146
Description
Versatile Non Conductive Outlet Box for New Construction – Electrical Distributor Lighting Solutions

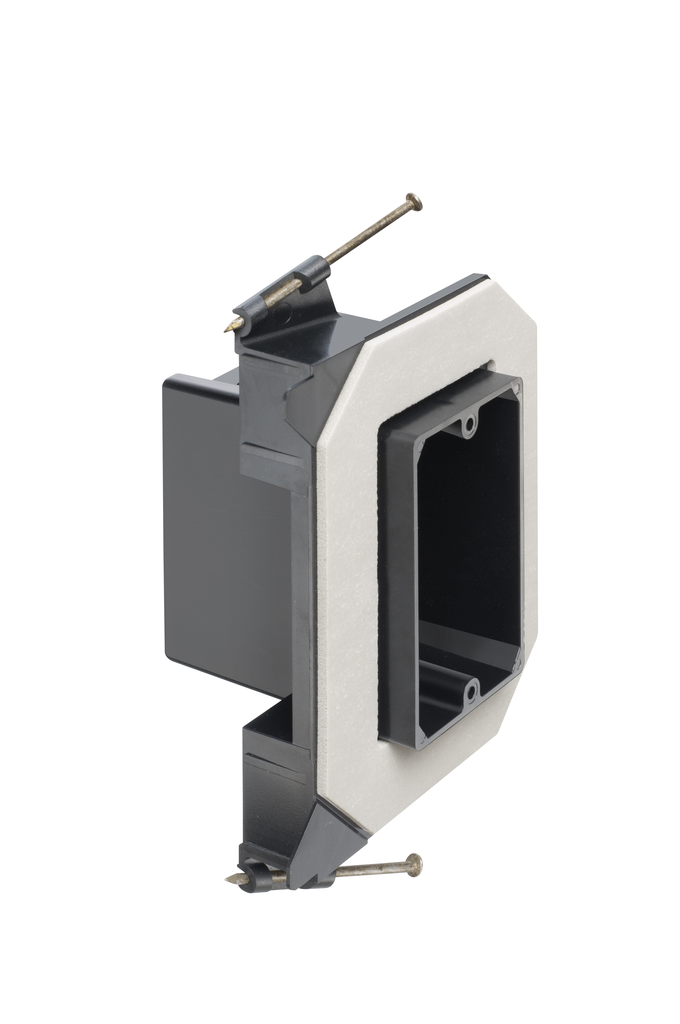

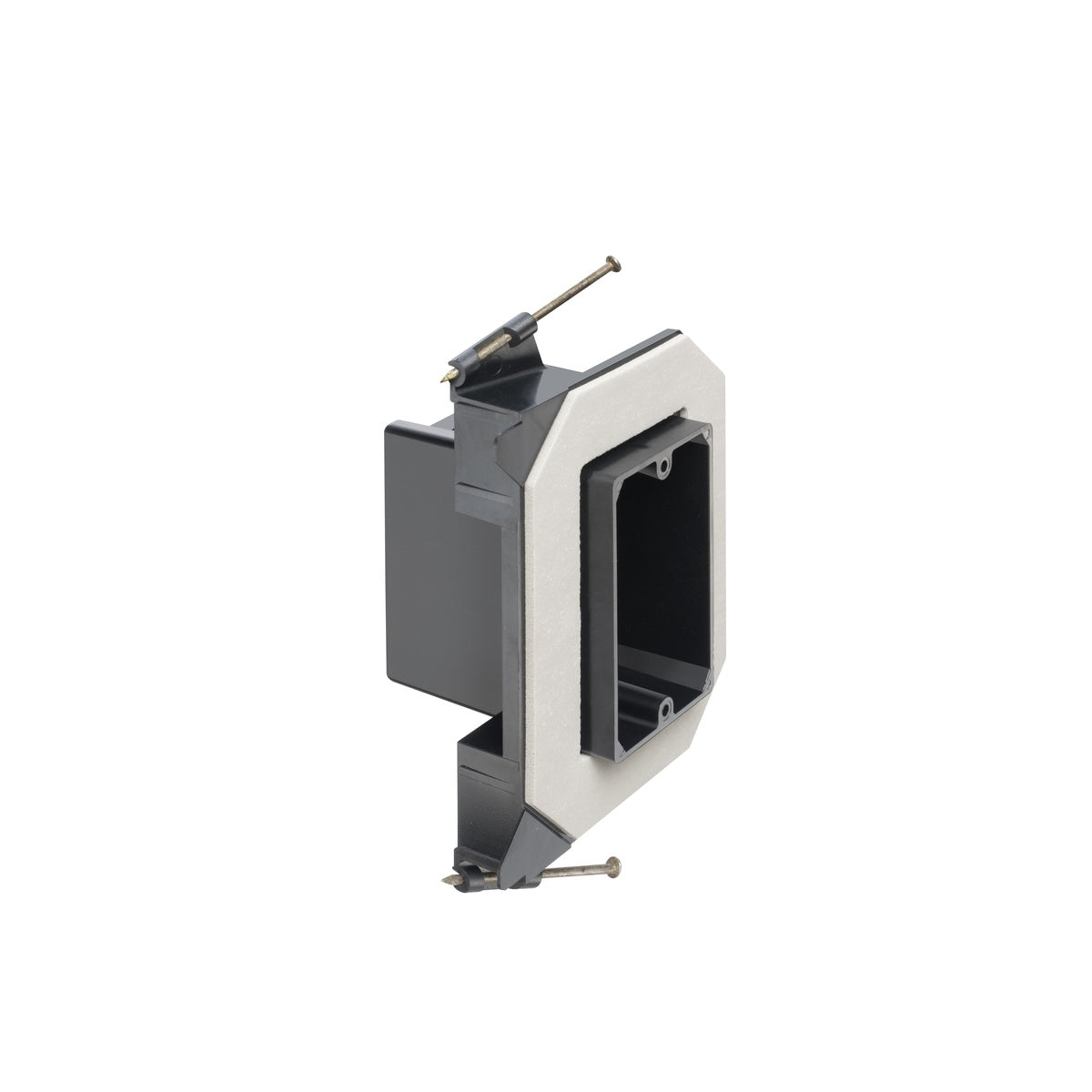

This single gang, non-metallic outlet box from Arlington Industries is designed for new construction applications. It features a nail-on installation with captive nails for easy mounting to studs. The box includes built-in gasketed flanges with ultra-thin alignment tabs to prevent drywall bulge, ensuring a flush finish. It is suitable for use with 1/2" or 5/8" drywall and provides a 2-hour fire rating. This product supports air infiltration protection, helping meet International Energy Conservation Codes (IECC), making it an effective solution for electrical distributors and lighting solutions requiring reliable wire and cable enclosures.
Specifications
- Manufacturer Part #: FN101FL
- Color: Black
- Material: Plastic
- Product Weight: 0.3580 lbs
- Volume: 22.8 cubic inches
- Fire Rating: 2 Hour
- UPC: 018997098146
Features
- Non-metallic construction for electrical safety
- Built-in gasketed flange with ultra-thin alignment tabs to eliminate drywall bulge
- Nail-on installation with captive nails for secure mounting
- Pre-installed NM cable connector and attached gasket material for easy assembly
- Suitable for single gang applications with 1/2" or 5/8" drywall
- cULus Listed and UV rated
- NEMA OS-4 rated for air leakage protection
- Helps meet International Energy Conservation Codes (IECC)
