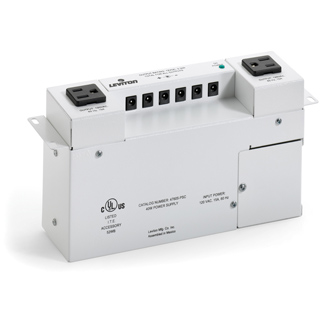

Versatile AC/DC Power Supply Module – Reliable Power Distribution for Structured Media Enclosures

The Versatile AC/DC Power Supply Module by Leviton is designed to provide efficient and unobtrusive power distribution within Leviton Structured Media® enclosures. This module serves electrical distributors and lighting solution providers by offering a consolidated power source for multiple 12V DC devices and AC power adapters, eliminating the need for multiple adapters and simplifying installation. It is suitable for powering Leviton 12V DC modules and supports plug-in AC/DC power adapters for other DC voltages, making it a valuable component for wire and cable management and switchgear supplier applications.

Specifications

• Manufacturer Part #: 47605-PSC
• Country of Origin: Mexico
• Input Voltage: 120 VAC ± 10%
• Maximum Continuous Line Voltage: 134 VAC
• Maximum Input Current: 15 Amps
• Source Frequency: 47/63 Hz
• DC Outputs: Six 12V DC power jacks, ± 2% load regulation, total 40 Watts (3.34 Amps max)
• AC Outputs: Two NEMA 5-15 receptacles, 120 VAC at 15 Amps total load
• DC Power Cords: Six 72-inch (1.83 m) two-conductor cables with 2.1 mm power connectors molded on both ends
• Operating Temperature Range: 0º to 50º C
• Storage Temperature Range: -20º to 85º C
• Humidity: 5% to 95% (non-condensing)
• Product Weight: 18.2 lbs
• Color: White painted cover with black DC connector cables
• LED Indicator: Green LED indicates DC power availability

Features

• Mounts in the bottom cutout of Leviton Structured Media enclosures, projecting less than 1.25 inches into the interior
• Provides six regulated 12V DC outputs via standard 2.1mm power jacks for powering multiple DC modules simultaneously
• Includes two NEMA 5-15 receptacles for AC output, allowing connection of plug-in AC/DC adapters for other voltages
• Continuous DC short circuit overload protection and DC current limiting with a PTC fuse to prevent overcurrent conditions
• Internal AC fuse limits input current to 2 Amps to protect the power supply from overload
• Load regulation within ± 2% and ripple and noise limited to ± 1% peak-to-peak for stable DC output
• Quick and secure AC power connections via included wire nuts on pig-tail leads for hot, neutral, and ground wires
• Designed for use with copper or copper-clad wiring in compliance with electrical codes
• UL and CSA certified to meet Information Technology Equipment standards (UL 60950)
• Compact design with upward-facing AC receptacles optimized for plug-in adapters
