VAN6F26W Fluorescent Vandalproof Wall and Ceiling Fixture

The VAN6F26W by RAB is a versatile fluorescent lighting fixture designed for wall or ceiling mounting in commercial and industrial environments. It features a durable die-cast aluminum housing with a white powder coat finish and a clear vandalproof polycarbonate refractor, making it suitable for applications requiring robust protection against tampering and impact. This fixture is ideal for electrical distributors and lighting solution providers seeking reliable, UL-listed wet location lighting with efficient performance and long lamp life.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: VAN6F26W
• Input Wattage: 36 watts
• Lumens: 1,650 lumens
• Efficacy: 45 lumens per watt
• Weight: 4.0 lbs
• Color: White

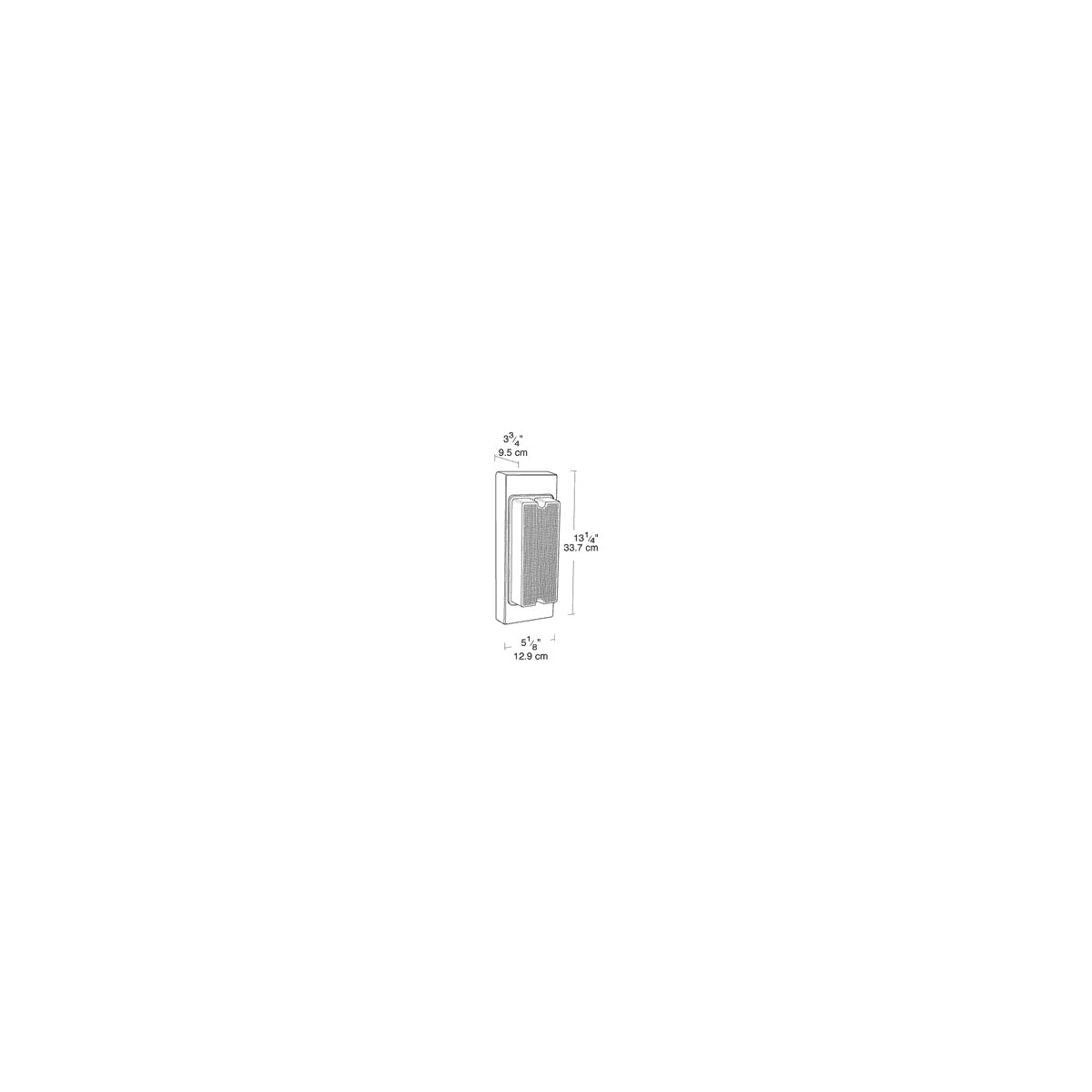

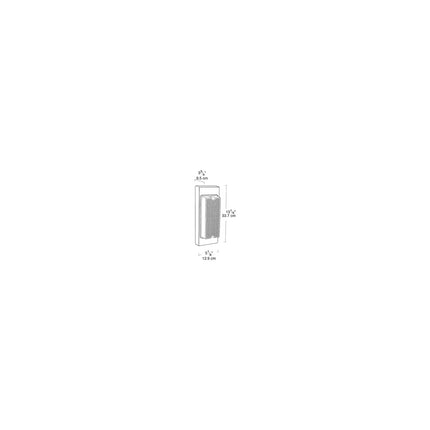

• Dimensions: 13 1/4" H x 5 1/8" W x 3 3/4" D (33.7 cm x 12.9 cm x 9.5 cm)
• Lamp Type: 2-13 watt twin fluorescent (26 watts total)
• Ballast: NPF, 120V, 0.6/0.8A
• UL Listed: Suitable for wet locations, covered ceiling mount only
• Starting Temperature: 32°F (0°C)

Features

• Die-cast aluminum housing with powder coat white finish
• Clear vandalproof polycarbonate refractor for maximum structural strength
• Tamperproof center pin Torx-head and slotted Phillips head stainless steel screws included
• Heavy gauge cold rolled steel reflectors with high reflectance baked white enamel
• Suitable for wet locations and compliant with National Electrical Code installation requirements
• Easy installation with universal crossbar and mounting nipple
• Compatible with photocell and sensor models (lamp supplied)
