VAN6F26/PC Vandalproof Wall and Ceiling Fixture

The VAN6F26/PC by RAB is a versatile vandalproof wall and ceiling lighting fixture designed for commercial and industrial applications. It features a durable die-cast aluminum housing with a bronze powder coat finish and a clear polycarbonate refractor for maximum structural strength and vandal resistance. This fixture is suitable for wet locations and is ideal for electrical distributors and lighting solutions providers seeking reliable, tamper-resistant lighting options. It supports 13 and 26 watt fluorescent lamps and includes a photocell for automated operation with 120V systems.

Specifications

• Manufacturer: RAB
• Model Number: VAN6F26/PC
• Input Wattage: 32 watts
• Lumens: 1,800 lumens
• Efficacy: 56 lumens per watt
• Weight: 4.9 lbs
• Color: Bronze
• Lamp Type: 2-13W Twin Fluorescent
• Ballast Type: NPF 120V, 0.3/0.3A
• UL Listed: Suitable for wet locations, covered ceiling mount only

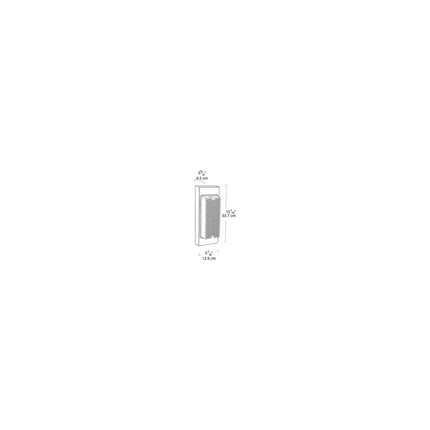

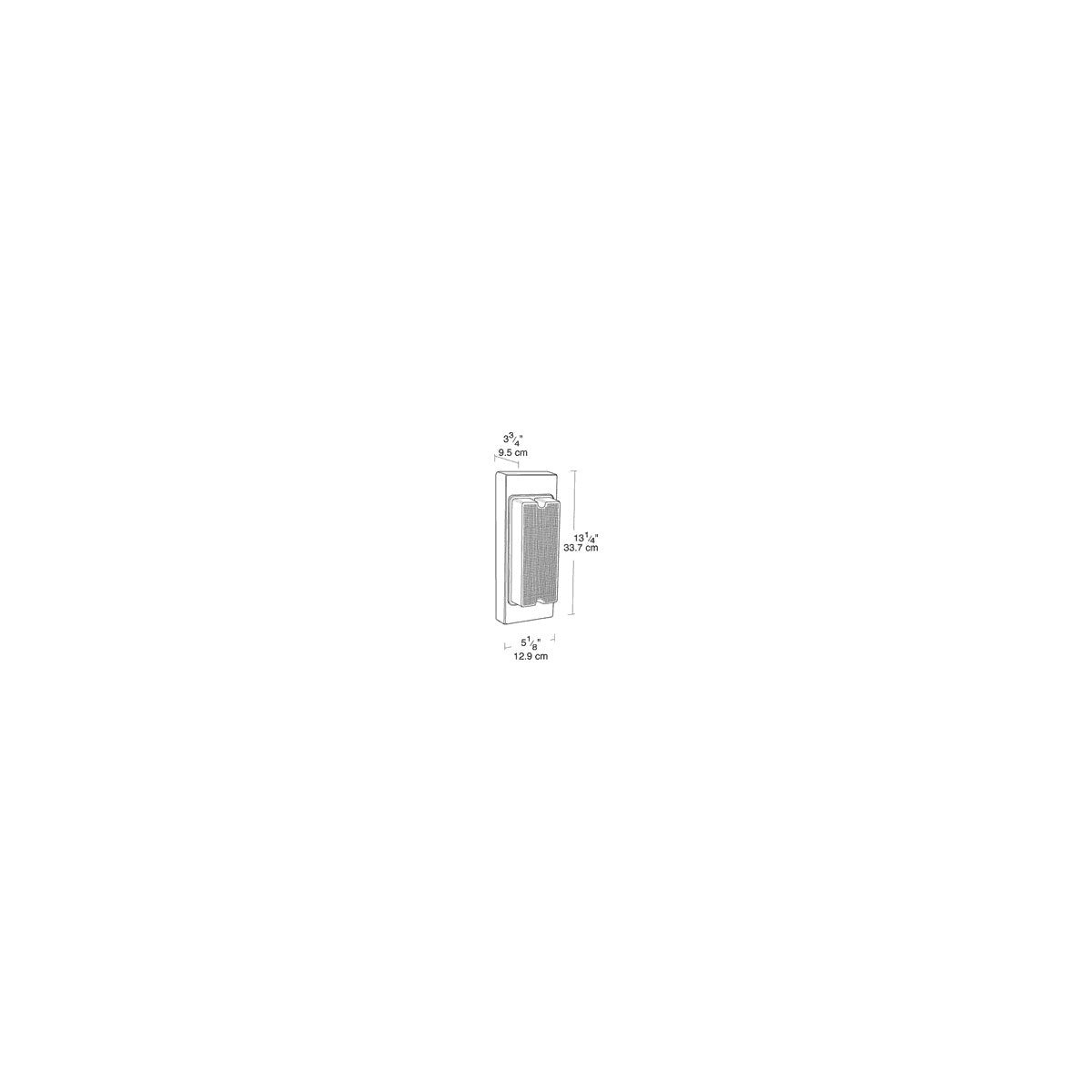

• Dimensions: 13 1/4" H x 5 1/8" W x 3 3/4" D (33.7 cm x 12.9 cm x 9.5 cm)
• Photocell: Button photocell included (120V only)
• Ballast Minimum Starting Temperature: 32°F (0°C)

Features

• Die-cast aluminum housing with powder coat bronze finish
• Clear vandalproof polycarbonate refractor for maximum durability
• Tamperproof center pin Torx-head and slotted Phillips stainless steel screws included
• Heavy gauge cold rolled steel reflectors with high reflectance baked white enamel
• Compatible with HID quartz restrike and fluorescent lamps
• Suitable for wet locations and outdoor use
• Photocell sensor models available for automated lighting control

Downloads & Links

• Instructions
• Spec Sheet
