VAN6F13 Vandalproof Fluorescent Wall and Ceiling Fixture

The VAN6F13 by RAB is a versatile vandalproof lighting fixture designed for wall or ceiling installation, suitable for wet locations and covered ceiling mounts. It features a durable die-cast aluminum housing with a powder coat bronze finish and a clear polycarbonate refractor for maximum structural strength. This fixture is ideal for electrical distributors and lighting solutions providers seeking reliable, secure lighting in commercial or industrial environments.

Specifications

• Manufacturer: RAB
• Model Number: VAN6F13
• Lamp Type: 13W Twin Fluorescent
• Input Wattage: 18 watts
• Lumens: 860 lumens
• Efficacy: 47 lumens per watt
• Weight: 4.6 lbs

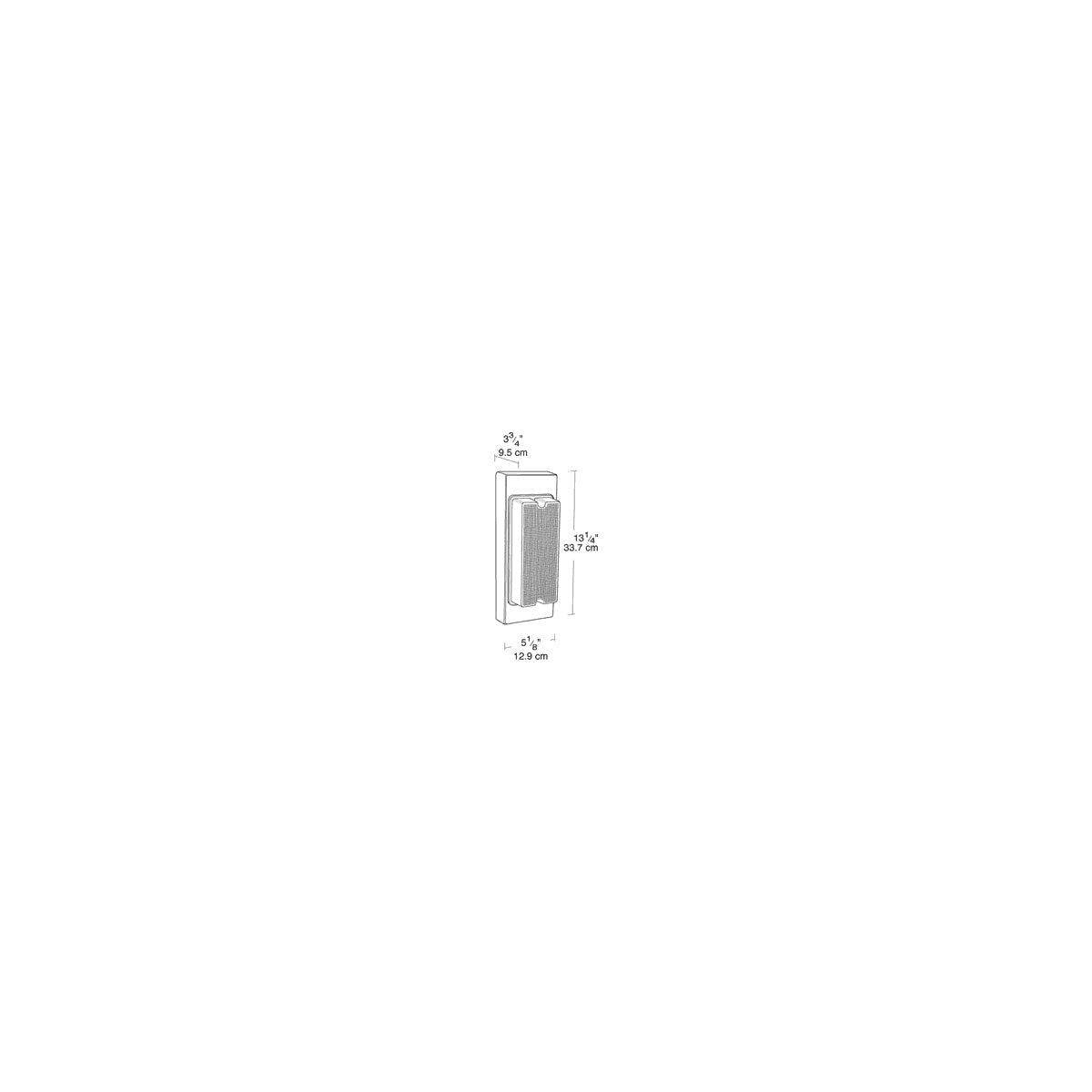

• Dimensions: 13 1/4" H x 5 1/8" W x 3 3/4" D (33.7 cm x 12.9 cm x 9.5 cm)
• Housing Material: Die-cast aluminum with powder coat finish (bronze)
• Refractor Material: Injection molded polycarbonate
• Sockets: HPS Medium base 4kv pulse rated glazed porcelain; CFL plug-in type thermoplastic
• Ballast Type: NPF 120V, 0.3/0.4A
• Starting Temperature: 0°F
• Ballast Minimum Starting Temperature: 32°F
• UL Listed: Suitable for wet locations, covered ceiling mount only

Features

• Vandalproof design with tamperproof center pin Torx-head and slotted Phillips head stainless steel screws
• Tough polycarbonate refractor for enhanced durability
• Die-cast aluminum housing for long-lasting structural integrity
• Compatible with photocell and sensor models (lamp supplied)
• Compliant with National Electrical Code and suitable for 90°C supply wiring when routed away from ballast
• Heavy gauge cold rolled steel reflectors with high reflectance baked white enamel
• Buy American Act compliance available upon request

Downloads & Links

• Instructions
• Spec Sheet
