VAN5S150 Vandalproof Fixture Lighting Solution

The VAN5S150 is a large size ceiling mount vandalproof fixture designed for reliable lighting in demanding environments. It features a vertical lamp HID for improved light distribution and heat dissipation, making it suitable for commercial and industrial applications. This fixture is ideal for electrical distributors and lighting solutions providers seeking durable, high-performance wire and cable compatible lighting products. Its die-cast aluminum housing with a clear polycarbonate refractor ensures vandal resistance and weather durability. The fixture is UL listed for wet locations and designed for covered ceiling mount installations.

Specifications

• Product Weight: 16.4 lbs
• Lumens: 16,000 lumens
• Efficacy: 94 lumens per watt
• Input Wattage: 170 watts
• Socket: Medium base 4kv Pulse Rated Glazed porcelain
• Ballast Type: R-NPF 120V
• Color: Bronze

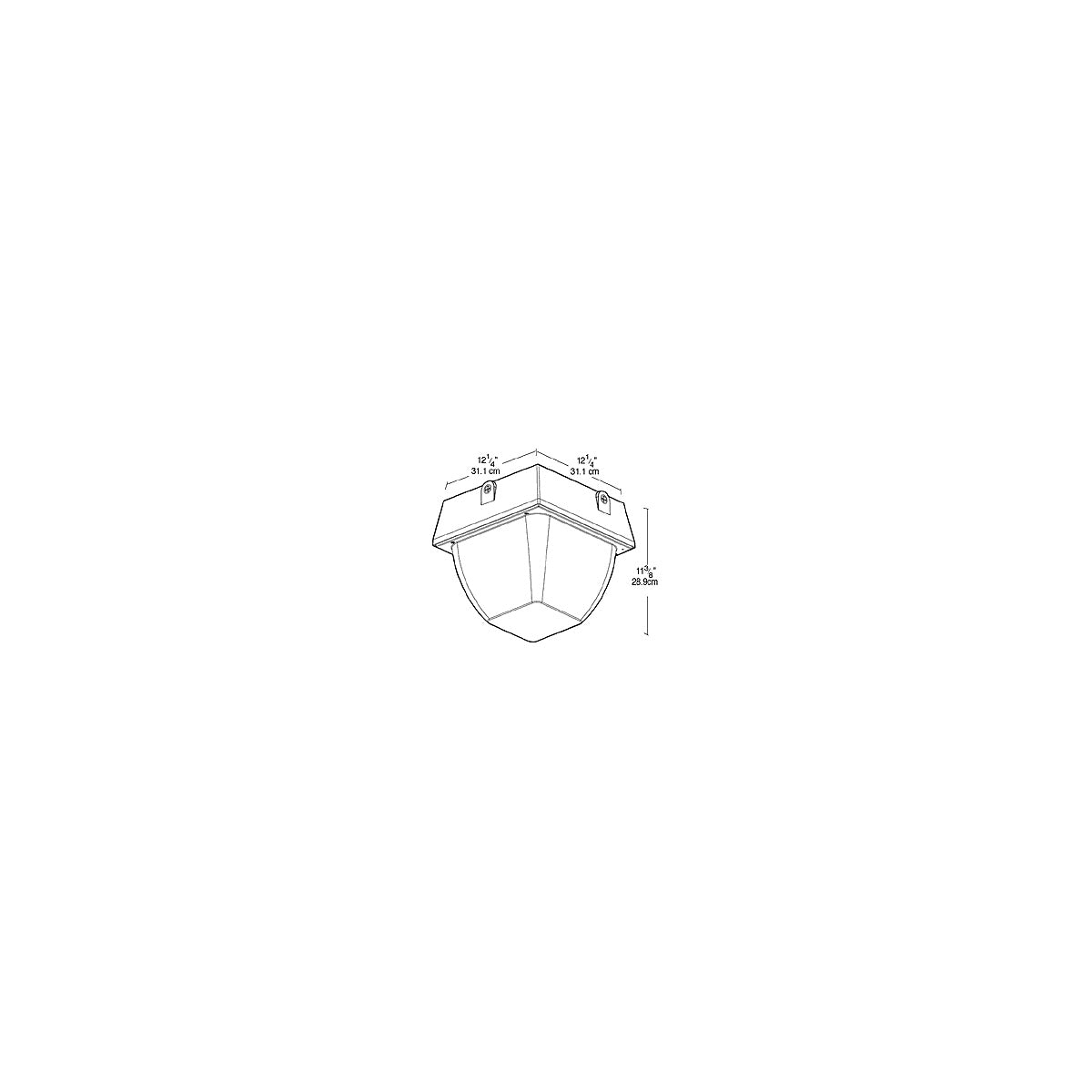

• Dimensions: 12 1/4" x 12 1/4" x 11 3/8"
• UL Listed: Suitable for wet locations, covered ceiling mount only

Features

• Vertical lamp for better light distribution and heat dissipation
• Adjustable 4-way glare guard
• Glare stopper shield to reduce glare
• Vandalproof with tamperproof center pin Torx and slotted Phillips head stainless steel screws
• Tough polycarbonate refractor with die-cast aluminum housing
• Electronic fluorescent ballast with 0°F starting temperature
• Improved heat control to eliminate heat problems

Downloads & Links

• Instructions
• Spec Sheet
