VAN5HH100QTW Vandalproof Lighting Fixture

The VAN5HH100QTW is a large size ceiling mount vandalproof lighting fixture designed for durable and efficient illumination in commercial and industrial applications. Manufactured by RAB, this fixture features a vertical lamp HID configuration for improved light distribution and heat dissipation. It is suitable for wet locations and offers enhanced heat control, making it ideal for use in demanding environments. This product is relevant for electrical distributors and lighting solutions providers requiring reliable wire and cable compatible fixtures and switchgear suppliers seeking robust lighting options.

Specifications

• Manufacturer: RAB
• Model Number: VAN5HH100QTW
• Input Wattage: 129 watts
• Lumens Output: 9,000 lumens
• Efficacy: 69 lumens per watt
• Weight: 18.1 lbs
• Color: White
• Housing Material: Die-cast aluminum with powder coat finish
• Refractor Material: Clear vandalproof polycarbonate
• Mounting: Ceiling mount, covered ceiling only
• Ballast Type: Electronic Fluorescent Ballast with 0°F starting temperature
• Socket Type: Medium base 4kv pulse rated glazed porcelain
• Voltage Compatibility: 120, 208, 240, 277 Volts (quad tap)

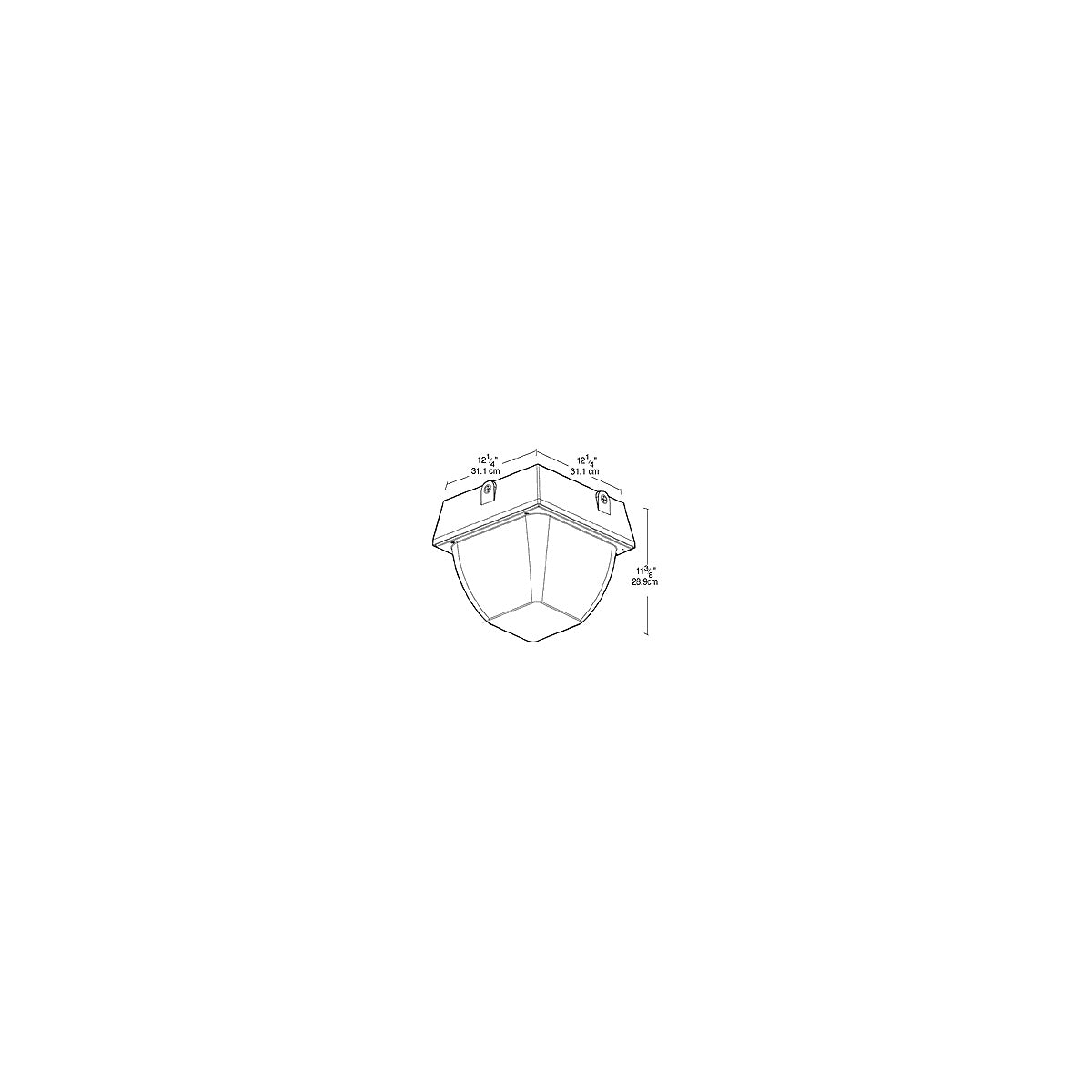

• Dimensions: 12 1/4" W x 12 1/4" D x 11 3/8" H (31.1 cm x 31.1 cm x 28.9 cm)
• UL Listed: Suitable for wet locations
• EISA 2007 Compliant for metal halide ballast efficiency

Features

• Vertical lamp design for better light distribution and heat dissipation
• Adjustable 4-way glare guard for customizable light direction
• Glare stopper shield reduces glare for down and side lighting
• Vandalproof construction with tamperproof center pin Torx and slotted Phillips head stainless steel screws
• Tough polycarbonate refractor with die-cast aluminum housing for durability
• Improved heat control to eliminate heat-related fixture issues
• Compatible with HID quartz restrike for immediate illumination during power interruptions

Downloads & Links

• Instructions
• Spec Sheet
