VAN5HH100QT Vandalproof Ceiling Mount Fixture

The VAN5HH100QT by RAB is a large-size ceiling mount vandalproof lighting fixture designed for commercial and industrial applications. It features a vertical lamp HID for improved light distribution and heat dissipation, making it suitable for wet locations and covered ceiling mounts. This fixture is ideal for electrical distributors and lighting solutions providers seeking durable, high-performance wire and cable compatible fixtures with robust construction.

Specifications

• Manufacturer: RAB
• Model Number: VAN5HH100QT
• Lumens: 9,000 lumens
• Efficacy: 69 lumens per watt
• Input Wattage: 129 watts
• Weight: 18.1 lbs
• Color: Bronze

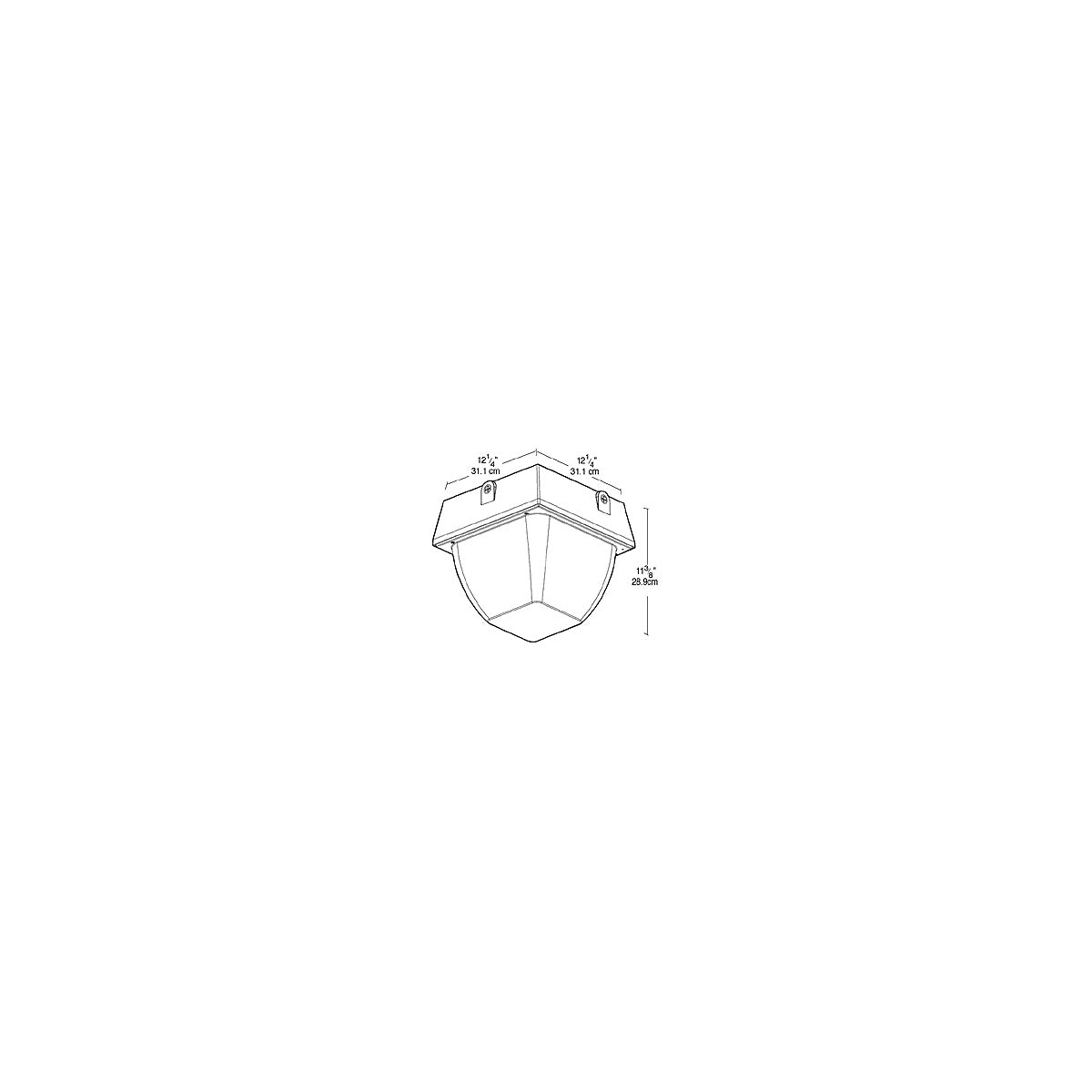

• Dimensions: 12 1/4" W x 12 1/4" D x 11 3/8" H (31.1 cm x 31.1 cm x 28.9 cm)
• UL Listed: Suitable for wet locations, covered ceiling mount only
• Socket: Medium base 4kv pulse rated glazed porcelain
• Electrical: Quad tap for 120, 208, 240, and 277 volts
• Housing: Die-cast aluminum with powder coat bronze finish
• Refractor: Injection molded polycarbonate

Features

• Vertical lamp for enhanced light distribution and heat dissipation
• Adjustable 4-way glare guard for customizable light direction
• Glare stopper shield reduces glare for safer lighting conditions
• Vandalproof design with tamperproof center pin Torx and slotted Phillips head screws
• Tough polycarbonate refractor with die-cast aluminum housing for durability
• Electronic fluorescent ballast with 0°F starting temperature
• Improved heat control to prevent fixture overheating
