VAN5F96QTW Vandalproof Ceiling Mount Fixture

The VAN5F96QTW is a large-size ceiling mount fixture designed for horizontal CFL lamps, providing robust lighting solutions suitable for wet locations. Manufactured by RAB, this fixture is ideal for electrical distributors and switchgear suppliers seeking durable, vandal-resistant lighting options. Its die-cast aluminum housing combined with a clear polycarbonate refractor ensures maximum structural strength and vandalproof protection. The fixture operates efficiently at 108 watts, delivering 7,200 lumens with an efficacy of 66 lumens per watt, suitable for various commercial and industrial lighting applications.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: VAN5F96QTW
• Input Wattage: 108 watts
• Lumens: 7,200 lumens
• Efficacy: 66 lumens per watt
• Product Weight: 10.5 lbs
• Color: White

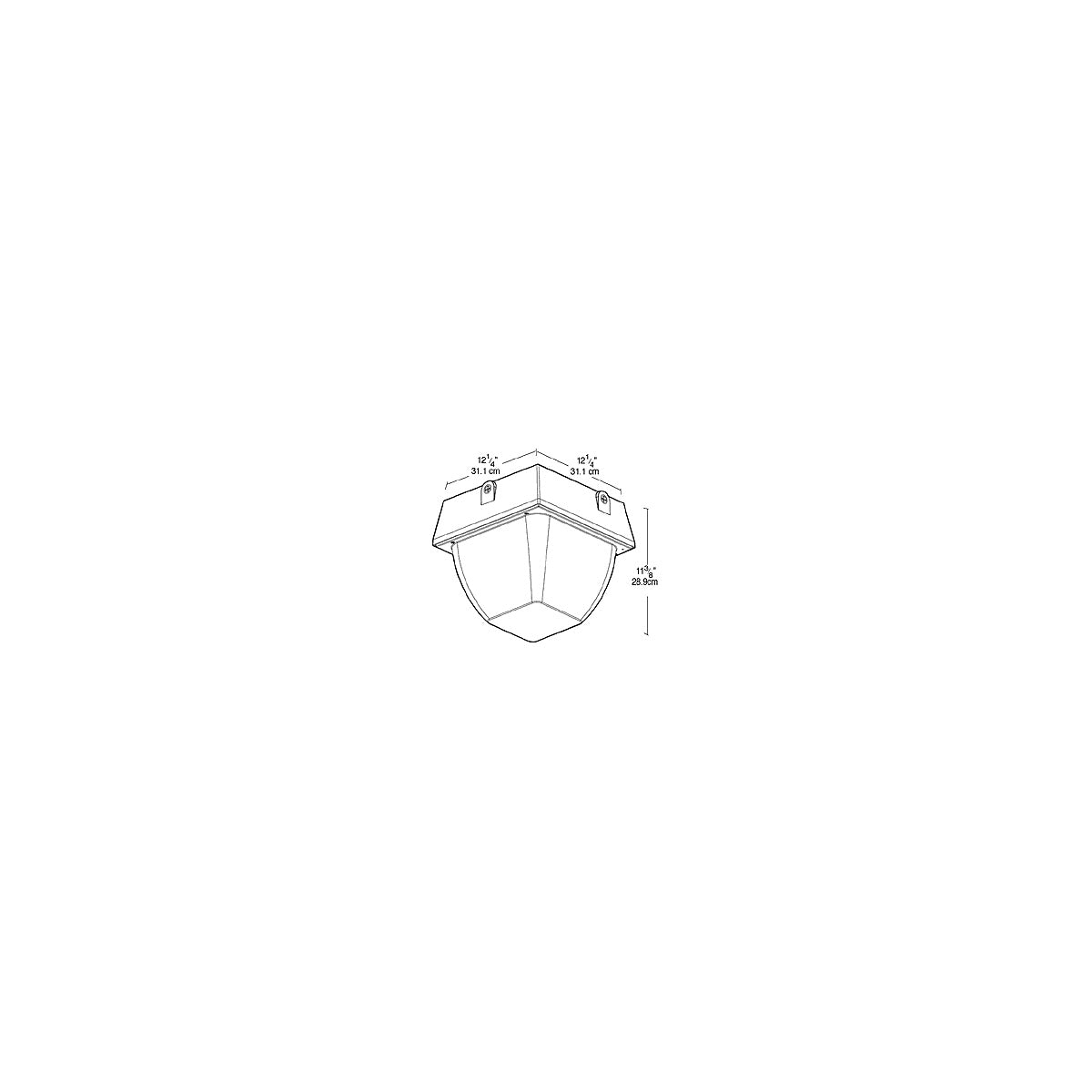

• Dimensions: 12 1/4" x 12 1/4" x 11 3/8" (31.1 cm x 31.1 cm x 28.9 cm)
• UL Listed for wet locations
• Suitable for covered ceiling mount only
• Electrical Voltages: 120V, 208V, 240V, 277V
• Socket Type: Medium base 4kv Pulse Rated glazed porcelain
• Ballast Type: Electronic High Power Factor Quick Trip (Elec HPF QT)
• Ballast Minimum Starting Temperature: 0°F

Features

• Vertical lamp design for improved light distribution and heat dissipation
• Adjustable 4-way glare guard for customizable light control
• Glare stopper shield reduces glare for glare-free down and side lighting
• Vandalproof construction with tamperproof center pin Torx and slotted Phillips head stainless steel screws
• Tough injection molded polycarbonate refractor for maximum structural strength
• Die-cast aluminum housing with powder coat finish (white)
• Electronic fluorescent ballast with 0°F starting temperature for reliable operation in cold environments
• Improved heat control for extended fixture life
• Optional Emergency Battery Backup available with 42 Watt lamp

Downloads & Links

• Spec Sheet
• Instructions
