VAN5F96QT Vandalproof Lighting Fixture

The VAN5F96QT is a robust ceiling-mounted vandalproof lighting fixture designed for commercial and industrial applications. Manufactured by RAB, this fixture features a die-cast aluminum housing with a clear polycarbonate refractor, providing durability and resistance to impact. It is suitable for wet locations and ideal for use by electrical distributors, lighting solutions providers, and switchgear suppliers requiring reliable, high-performance wire and cable compatible fixtures.

Specifications

• Manufacturer: RAB
• Model Number: VAN5F96QT
• Input Wattage: 108 watts
• Lumens: 7,200 lumens
• Efficacy: 66 lumens per watt
• Weight: 10.5 lbs
• Color: Bronze
• Mounting: Ceiling mount, covered ceiling only
• Socket: Medium base 4kv pulse rated glazed porcelain
• Ballast: Electronic fluorescent ballast with 0°F starting temperature
• Voltage Compatibility: 120V, 208V, 240V, 277V quad tap

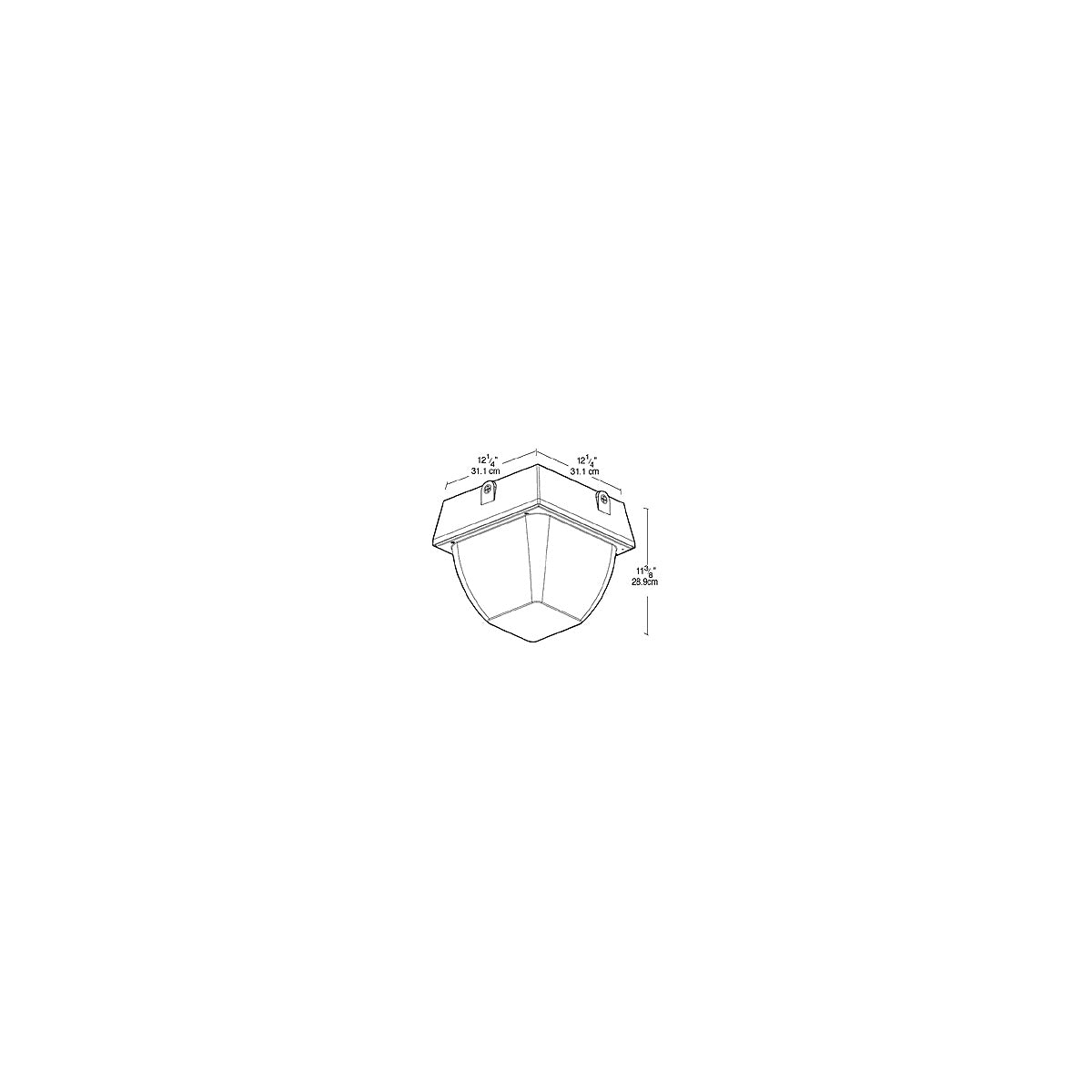

• Dimensions: 12 1/4" x 12 1/4" x 11 3/8" (31.1 cm x 31.1 cm x 28.9 cm)
• UL Listed: Suitable for wet locations

Features

• Vertical lamp for improved light distribution and heat dissipation
• Adjustable 4-way glare guard for customizable light pattern
• Glare stopper shield reduces glare for down and side lighting
• Vandalproof design with tamperproof center pin Torx and slotted Phillips head stainless steel screws
• Tough polycarbonate refractor combined with die-cast aluminum housing
• Electronic fluorescent ballast allowing operation down to 0°F minimum starting temperature
• Improved heat control for enhanced fixture longevity
• Compatibility with 200W Metal Halide or High Pressure Sodium lamps
