VAN5F96MS Vandalproof Sensor-Controlled Lighting Fixture

The VAN5F96MS by RAB is a sensor-controlled vandalproof lighting fixture designed for reliable outdoor illumination. Suitable for electrical distributors and lighting solutions providers, this fixture supports compact fluorescent lamps up to 96 watts, delivering efficient lighting performance ideal for security and perimeter lighting applications.

Specifications

• Manufacturer: RAB
• Model Number: VAN5F96MS
• Input Wattage: 108 watts
• Lamp Type: 3 - 32W Triple Compact Fluorescent Lamp
• Lamp Watts: 96W
• Lamp Lumens: 7,200 lumens
• Efficacy: 66 lumens per watt
• Voltage: 120 volts AC, 60 Hz
• Weight: 11.5 lbs

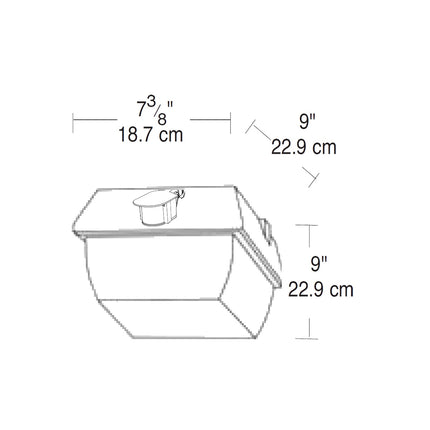

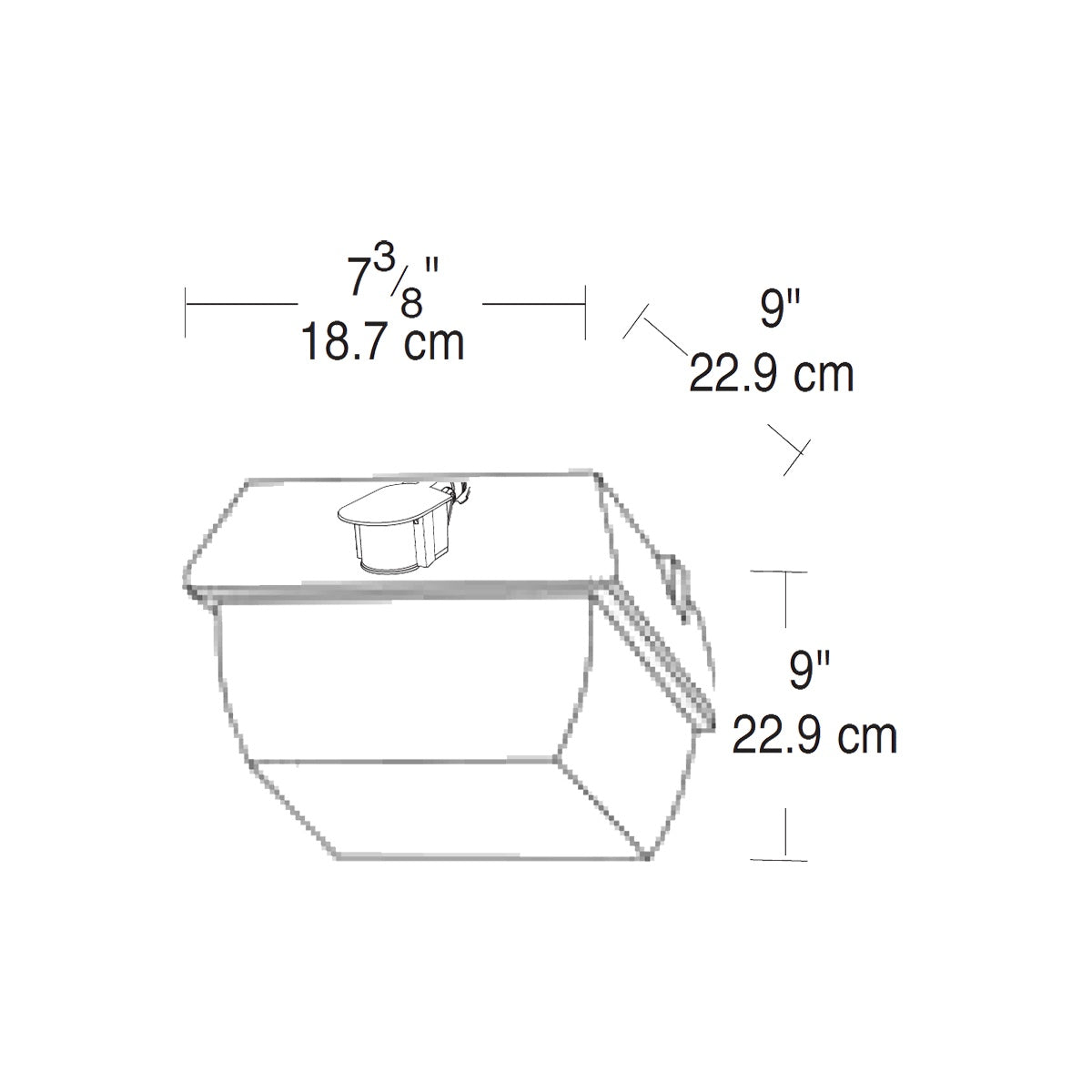

• Dimensions: 7 3/8" (18.7 cm) width, 9" (22.9 cm) height, 9" (22.9 cm) depth
• UL Listed: Suitable for wet locations
• Surge Protection: Withstands up to 3000 volts
• Minimum Starting Temperature: 0°F
• Patents: Pat. D547,484

Features

• Sensor-controlled operation with adjustable mini sensor featuring 180° detection pattern
• Sensor color matched to fixture for seamless integration
• Vandal resistant hard lens construction
• Precision die cast aluminum housing with durable polyester powder coating
• Cutoff and standard wall pack configurations
• LED "on guard" detection indicator glows red day and night for deterrence
• Manual override with double flip wall switch logic that prevents activation by short power outages and resets after 8 hours
• Photocontrol deactivates lights during daylight
• Can be wired in parallel for flexible installation
• Double weatherproofing for extended fixture life in severe conditions
• Quick test mode with 5 seconds test time for fast installation
• "No Hands" auto testing mode starts after 4 minutes with no adjustment needed
