VAN3S50 Medium Size Ceiling Mount Fixture Lighting Solution

The VAN3S50 by RAB is a medium size ceiling mount lighting fixture designed for use with 35, 50, and 70 Watt High Pressure Sodium (HPS) and Metal Halide lamps. This fixture is suitable for covered ceiling mounts in both indoor and outdoor applications, providing reliable illumination with a robust construction ideal for electrical distributors and lighting solutions providers. It features a die-cast aluminum housing with a clear vandalproof polycarbonate refractor, making it durable and secure for various commercial and industrial environments.

Specifications

• Manufacturer: RAB
• Model Number: VAN3S50
• Input Wattage: 62 watts
• Lumens: 4,000 lumens
• Efficacy: 64 lumens per watt
• Weight: 7.8 lbs
• Color: Bronze
• Socket Type: Medium base 4kv Pulse Rated glazed porcelain
• Ballast Type: R-NPF 120V
• Conduit Entry: 1/2 inch

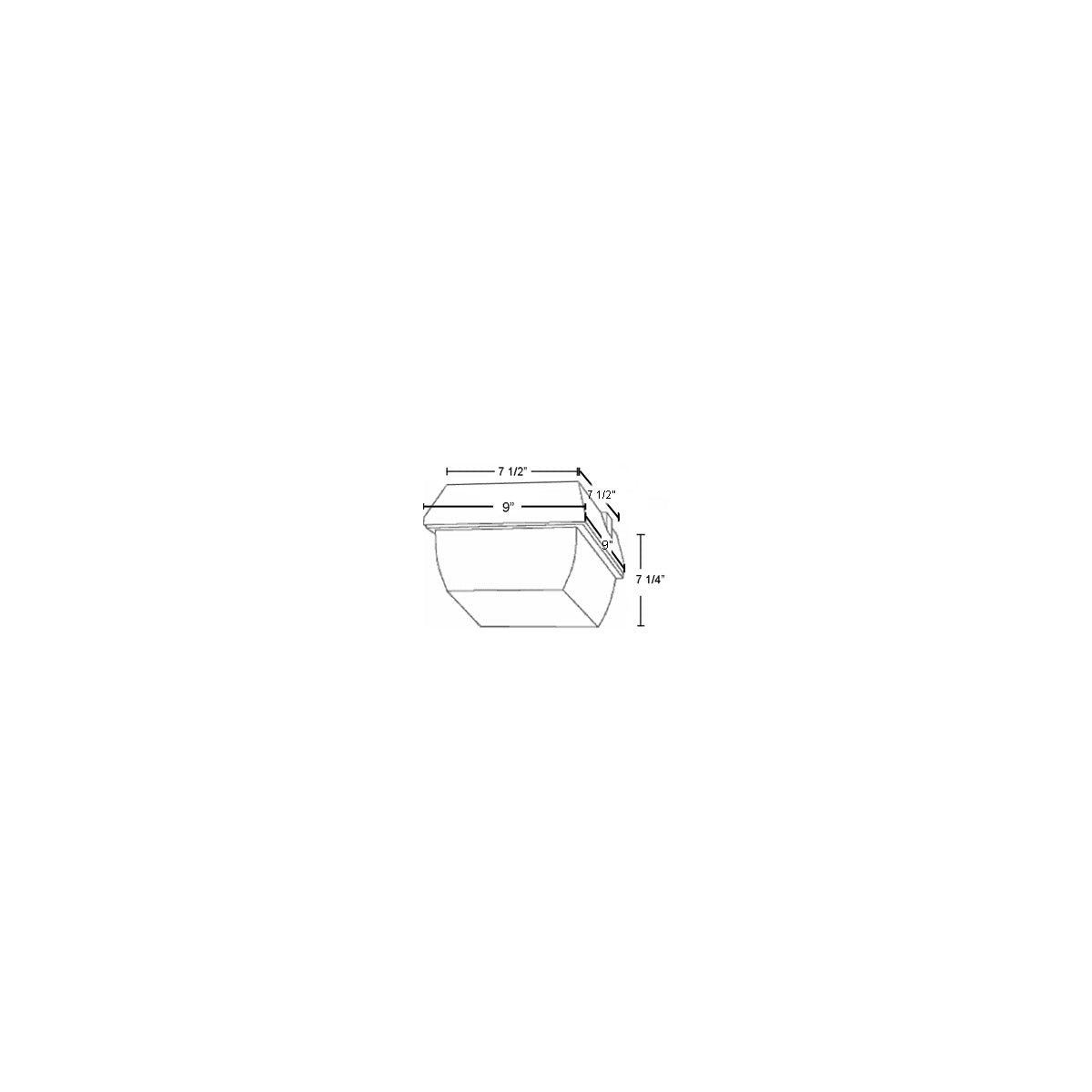

• Dimensions: 9" (W) x 7 1/2" (D) x 7 1/4" (H)
• UL Listed: Suitable for wet locations, covered ceiling mount only

Features

• Die-cast aluminum housing with powder coat bronze finish
• Clear vandalproof polycarbonate refractor designed for maximum structural strength
• Heavy gauge cold rolled steel reflector and backplate with high reflectance baked white enamel
• Both vandalproof center pin Torx and slotted Phillips head stainless steel screws included
• Quartz restrike models available for immediate illumination after momentary power failure (suffix "/QR")
• Fixtures can be wired with 90°C supply wiring if wires are routed 3 inches away from ballast
• Buy American Act compliance available upon request

Downloads & Links

• Spec Sheet
• Instructions
