VAN3S35 Medium Size Ceiling Mount Fixture - Lighting Solutions

The VAN3S35 is a medium size ceiling mount lighting fixture designed for commercial and industrial applications. Manufactured by RAB, this fixture is suitable for use with 35-watt high pressure sodium (HPS) lamps. It is ideal for electrical distributors and switchgear suppliers seeking reliable lighting solutions with durable construction and efficient performance. The fixture features a die-cast aluminum housing with a clear vandal-proof polycarbonate refractor, providing robust protection and long service life.

Specifications

• Manufacturer: RAB
• Model Number: VAN3S35
• Input Wattage: 46 watts
• Lamp Type: ED17 High Pressure Sodium (HPS)
• Lamp Wattage: 35 watts
• Lamp Lumens: 2,250 lumens
• Efficacy: 48 lumens per watt
• Weight: 7.6 lbs
• Color: Bronze

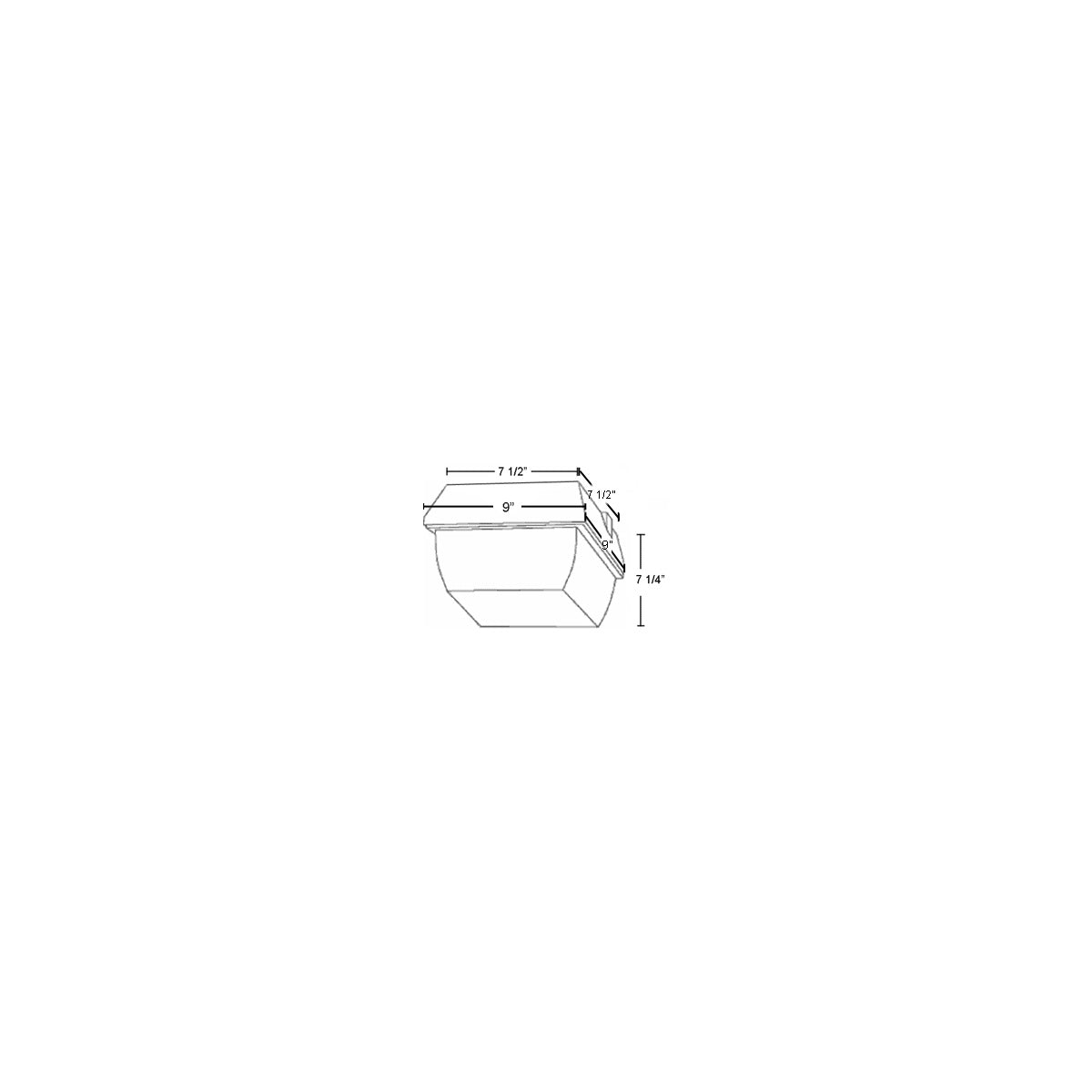

• Dimensions: 9" width x 7 1/2" depth x 7 1/4" height
• Socket: Medium base 4kV pulse rated glazed porcelain
• Ballast Type: R-NPF 120V
• UL Listed: Suitable for wet locations, covered ceiling mount only
• Conduit Entry: 1/2 inch

Features

• Die-cast aluminum housing with powder coat bronze finish
• Clear vandal-proof polycarbonate refractor designed for maximum structural strength
• Tamperproof center pin Torx-head and slotted Phillips head stainless steel screws included
• Quartz restrike models available for immediate illumination after power interruptions
• Heavy gauge cold rolled steel reflectors with high reflectance baked white enamel
• Fixtures can be wired with 90°C supply wiring if wires are routed 3 inches away from ballast
