VAN3HH70QT Medium Size Ceiling Mount Fixture Lighting Solution

The VAN3HH70QT by RAB is a medium size ceiling mount lighting fixture designed for commercial and industrial applications requiring reliable illumination. It supports 35, 50, and 70 Watt High Pressure Sodium (HPS) and Metal Halide lamps, making it suitable for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supplier environments. The fixture features a durable die-cast aluminum housing with a clear vandalproof polycarbonate refractor, engineered for wet locations and covered ceiling mount installations.

Specifications

• Manufacturer: RAB
• Model Number: VAN3HH70QT
• Lumens: 5,600 lumens
• Efficacy: 62 lumens per watt
• Input Wattage: 90 watts
• Weight: 11.7 lbs
• Color: Bronze
• Voltage Compatibility: 120V, 208V, 240V, 277V (Quad Tap)
• Socket Type: Medium base 4kV pulse rated glazed porcelain

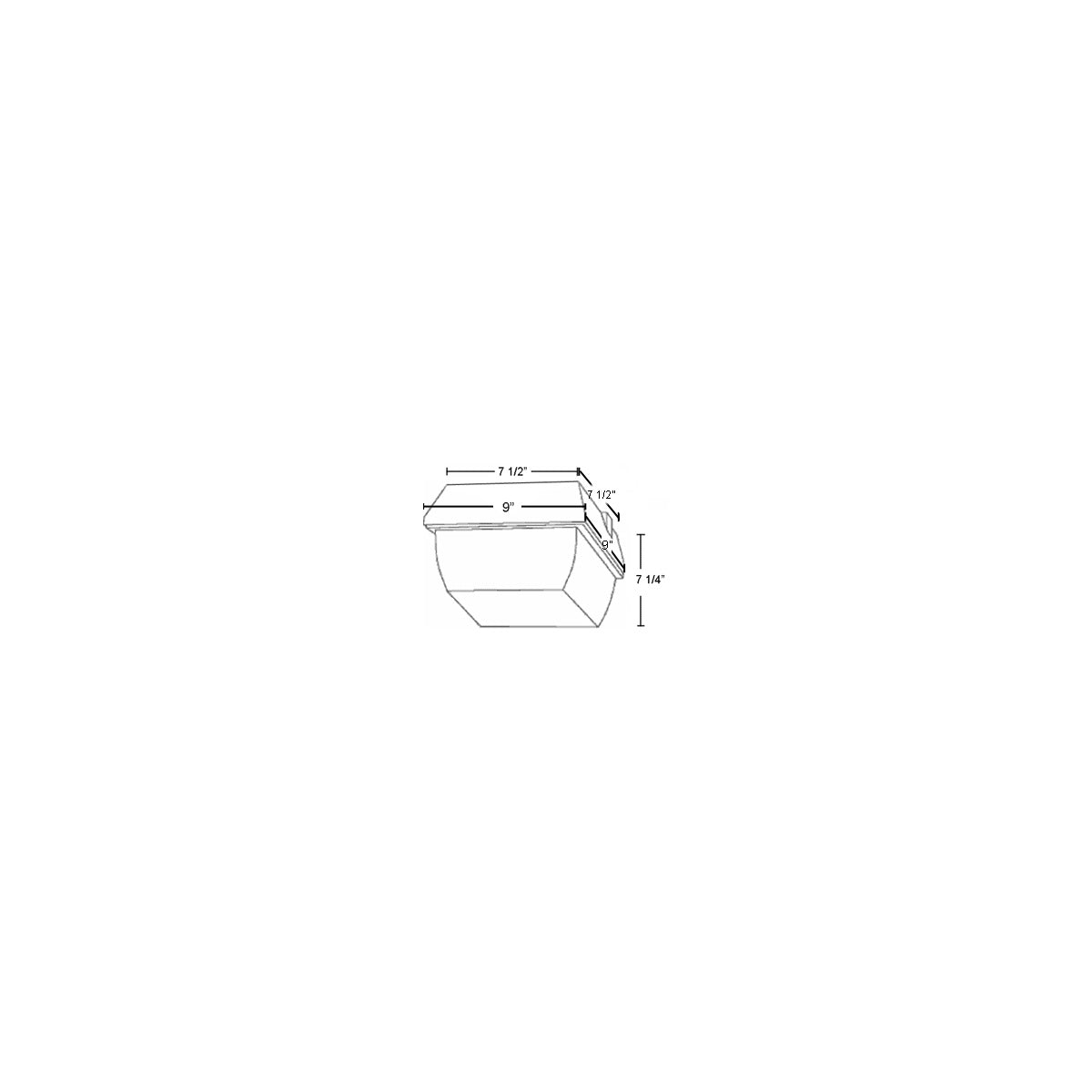

• Dimensions: 9" width x 7 1/2" depth x 7 1/4" height
• UL Listed for wet locations
• Suitable for covered ceiling mount only
• EISA 2007 Compliant for metal halide ballast efficiency
• Ballast Type: HX-HPF QT

Features

• Die-cast aluminum housing with powder coat bronze finish
• Clear vandalproof polycarbonate refractor for maximum structural strength
• Heavy gauge cold rolled steel reflectors with high reflectance white enamel
• Quartz restrike models available for immediate illumination after power interruption
• Tamperproof center pin Torx-head and slotted Phillips head stainless steel screws supplied
• Conduit entry: 1/2 inch
• Fixture compatible with 90°C supply wiring when routed 3 inches away from ballast
