VAN3HH50QT/PC Medium Size Ceiling Mount Fixture - Lighting Solutions

The VAN3HH50QT/PC is a medium size ceiling mount lighting fixture designed for commercial and industrial applications requiring reliable illumination. Manufactured by RAB, this fixture is suitable for use with 35, 50, and 70 Watt High Pressure Sodium (HPS) and Metal Halide lamps. It is engineered for covered ceiling mounting and wet locations, making it a practical choice for electrical distributors and switchgear suppliers seeking durable lighting solutions with vandal-resistant features.

Specifications

• Manufacturer: RAB
• Model Number: VAN3HH50QT/PC
• Input Wattage: 68 watts
• Lumens: 3,400 lumens
• Efficacy: 50 lumens per watt
• Housing Material: Die-cast aluminum with powder coat bronze finish
• Refractor: Clear vandalproof polycarbonate
• Weight: 9.6 lbs

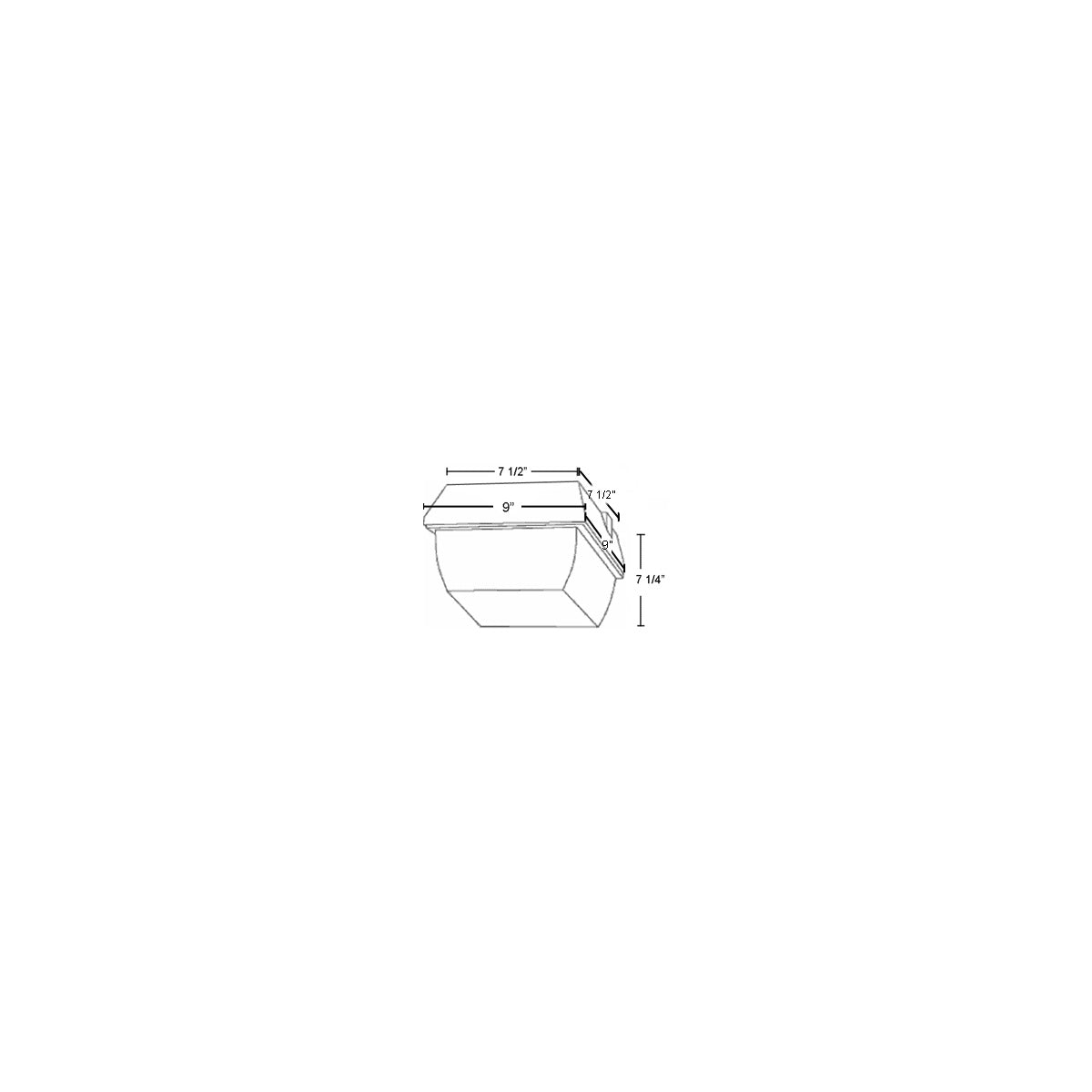

• Dimensions: 9" width x 7 1/2" depth x 7 1/4" height
• Socket Type: Medium base 4kV pulse rated glazed porcelain
• Voltage Compatibility: Quad tap for 120, 208, 240, and 277 volts
• UL Listed for wet locations
• Suitable for covered ceiling mount only
• Ballast Type: High power factor quartz (HX-HPF QT)
• Photocell: 120V button photocell included (compatible only with 120V)

Features

• Die-cast aluminum housing provides robust construction and corrosion resistance
• Tough injection molded polycarbonate refractor for vandal resistance
• Includes both vandalproof center pin Torx-head and slotted Phillips head stainless steel screws
• Quartz restrike models available for immediate illumination after power interruptions
• Complies with EISA 2007 standards for metal halide ballast efficiency
• Conduit entry: 1/2 inch
• Buy American Act compliance available upon request

Downloads & Links

• Spec Sheet
• Instructions
