VAN3HH50QT Medium Size Ceiling Mount Fixture - Lighting Solutions

The VAN3HH50QT by RAB is a medium size ceiling mount lighting fixture designed for commercial and industrial applications requiring reliable illumination. It supports 50 Watt Metal Halide lamps with quartz restrike options, making it suitable for environments needing fast startup and restrike capabilities. This fixture is ideal for electrical distributors and lighting solutions providers focusing on durable and efficient wire and cable compatible products.

Specifications

• Manufacturer: RAB
• Model Number: VAN3HH50QT
• Lamp Type: Metal Halide (ED17)
• Input Wattage: 68 watts
• Lumens: 3400 lumens
• Efficacy: 50 lumens per watt
• Weight: 13.7 lbs
• Color: Bronze

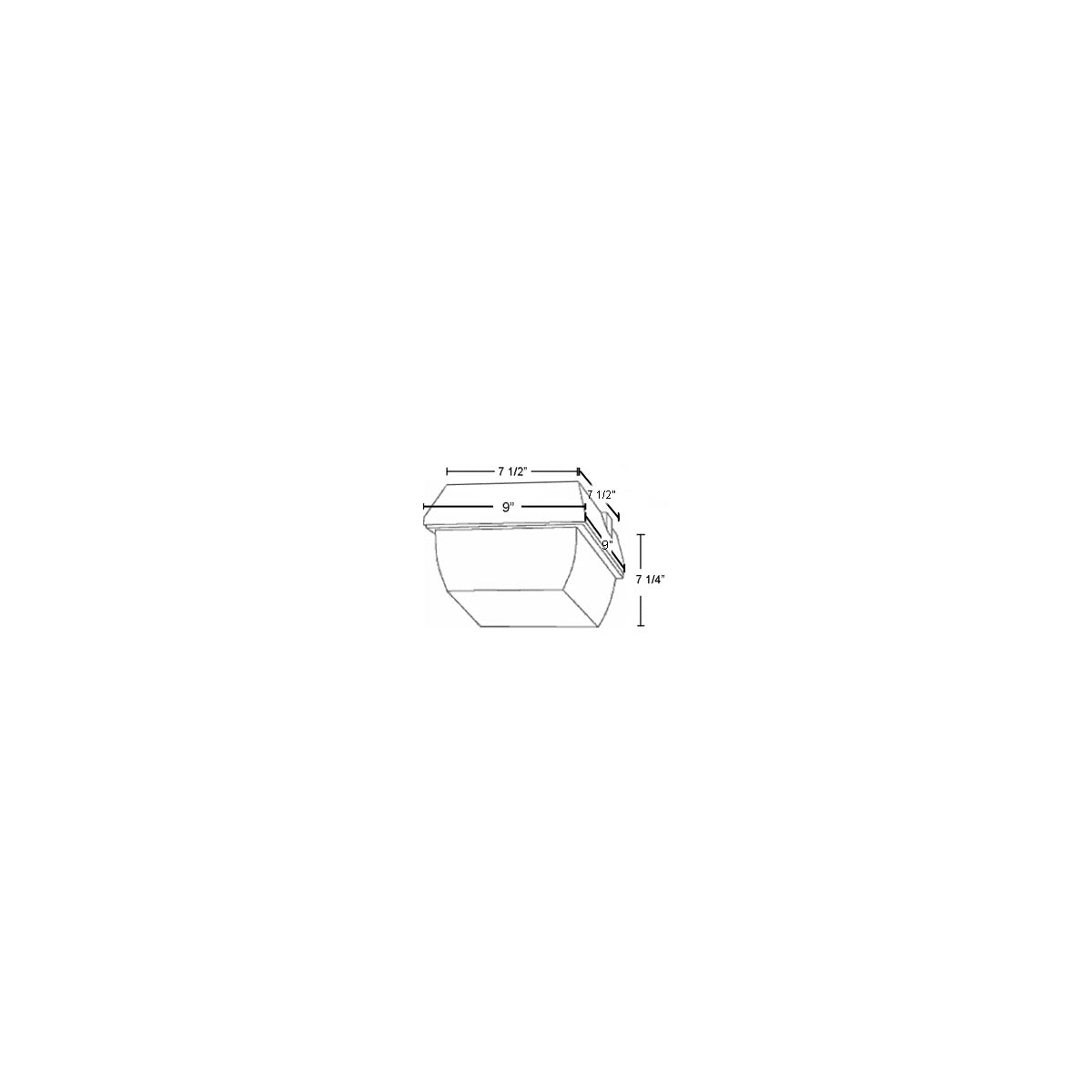

• Dimensions: 9" W x 7 1/2" D x 7 1/4" H
• Voltage Compatibility: 120V, 208V, 240V, 277V
• Socket: Medium base 4kV pulse rated glazed porcelain
• UL Listed: Suitable for wet locations, covered ceiling mount only
• EISA 2007 Compliant: Metal halide ballast efficiency compliant
• Conduit Entry: 1/2"

Features

• Die-cast aluminum housing with powder coat bronze finish
• Clear vandalproof polycarbonate refractor for durability
• Quartz restrike models available for immediate illumination after power interruptions
• Tamperproof center pin Torx-head and slotted Phillips head stainless steel screws included
• Heavy gauge cold rolled steel reflectors with high reflectance baked white enamel
• Quad tap ballast for multiple voltage operation

Downloads & Links

• Spec Sheet
• Instructions
