VAN2F32QTW Vandalproof Lighting Fixture

The VAN2F32QTW by RAB is a medium-size vandalproof lighting fixture designed for use with 26 and 32 Watt compact fluorescent lamps. It is suitable for covered ceiling mount applications and is UL listed for wet locations, making it a reliable choice for both indoor and outdoor environments requiring durable lighting solutions. This fixture is ideal for electrical distributors and switchgear suppliers seeking robust lighting options with vandal-resistant features and compatibility with cold weather conditions.

Specifications

• Manufacturer: RAB
• Model Number: VAN2F32QTW
• Weight: 3.6 lbs
• Lamp Wattage: 26W & 32W Compact Fluorescent Lamp
• Mounting: Covered Ceiling Mount
• UL Listed: Suitable for wet locations
• Ballast Minimum Starting Temperature: 0°F
• Sockets: Plug-in type, thermoplastic
• Reflector Material: Heavy gauge cold rolled steel with high reflectance baked white enamel
• Refractor: Injection molded clear polycarbonate, vandalproof
• Screws: Tamperproof center pin Torx-head and slotted Phillips head stainless steel screws provided

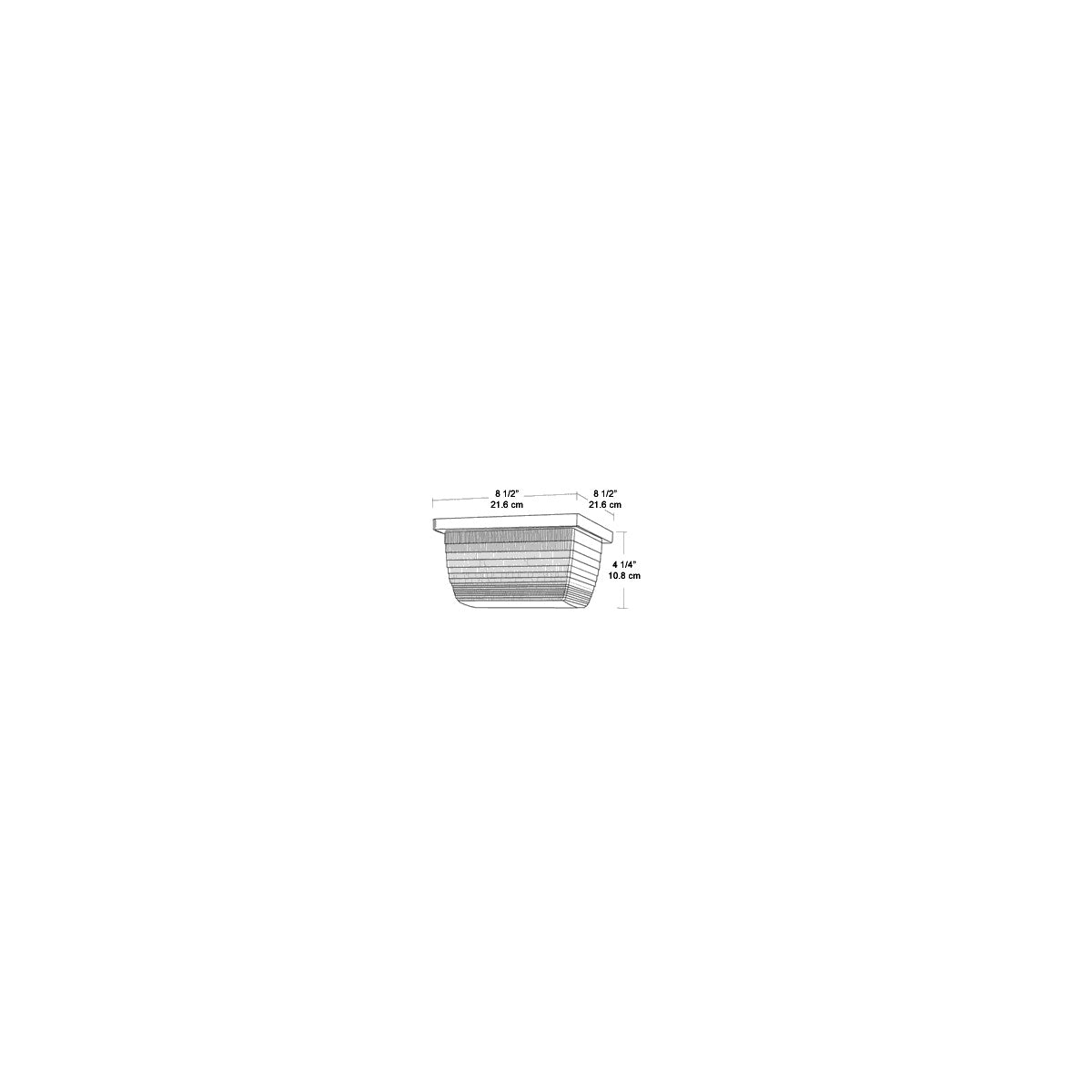

• Dimensions: 8 1/2" x 8 1/2" x 4 1/4" (21.6 cm x 21.6 cm x 10.8 cm)

Features

• Die-formed heavy gauge steel reflector with white finish
• Clear vandalproof polycarbonate refractor for maximum structural strength
• 26W & 32W Electronic CFL ballasts with cold weather starting temperature of 0°F
• Both vandalproof center pin Torx and slotted Phillips head screws supplied for enhanced security
• Die cast aluminum housings for durability
• Tough polycarbonate refractors resistant to impact
• Fixtures can be wired with 90°C supply wiring if supply wires are routed 3" away from ballast
• Buy American Act compliance available upon request
