Value pack,Plug-on neutral main circuit breaker loadcenter,200A,X8,Aluminum,Cover included,NEMA 1,Metallic,25 kAIC,CSR,80 circuits,Single pole,40 spaces,Two hots, a neutral, and a ground,Single-phase,#6-2/0 AWG Cu/Al,Combination,NEMA 1,Type
SKU: #384674
Part: #BRP40B200V25
UPC: 786689055288
Value pack,Plug-on neutral main circuit breaker loadcenter,200A,X8,Aluminum,Cover included,NEMA 1,Metallic,25 kAIC,CSR,80 circuits,Single pole,40 spaces,Two hots, a neutral, and a ground,Single-phase,#6-2/0 AWG Cu/Al,Combination,NEMA 1,Type
SKU: #384674
Part: #BRP40B200V25
UPC: 786689055288
Next day delivery
Description
Value pack, Plug-on neutral main circuit breaker loadcenter – Electrical Distributor and Lighting Solutions

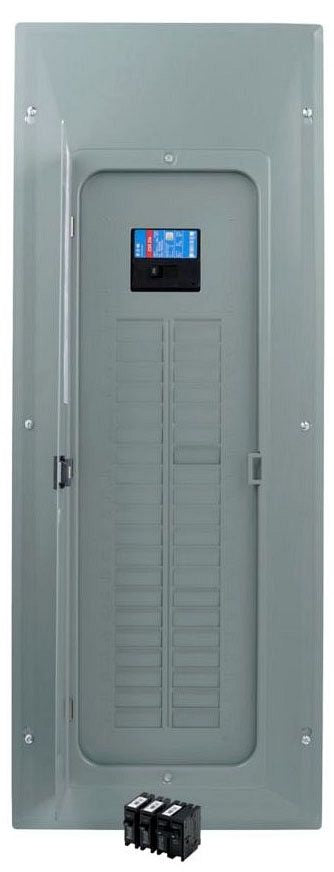

The Eaton Value Pack Plug-on Neutral Main Circuit Breaker Loadcenter is a versatile electrical distribution panel designed for residential and light commercial applications. It provides reliable power distribution with a 200 ampere main breaker capacity, accommodating up to 80 circuits and 40 spaces. Engineered with aluminum bus material and a metallic enclosure, this loadcenter ensures durability and safety. Its combination mounting type and NEMA 1 rating make it suitable for indoor installations, supporting single-phase electrical systems. This loadcenter is an ideal solution for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking robust, code-compliant power distribution equipment.
- Manufacturer: Eaton
- Model Number: BRP40B200V25
- Main Breaker Amperage: 200 amperes
- Number of Circuits: 80
- Number of Spaces: 40
- Number of Phases: Single-phase
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Mounting Type: Combination (flush/surface)
- Dimensions (W x H x D): 14.31 in x 3.88 in x 39 in
- NEMA Rating: NEMA 1 (indoor use)
- Interrupting Rating: 25 kAIC
- Wire Size Range: #6-2/0 AWG Copper/Aluminum
- Weight: 36.4 lbs
Specifications
- Plug-on neutral design for faster and cleaner installation
- Combination mounting allows for flexible installation options
- Silver-flashed copper bus for superior conductivity and corrosion resistance
- Full length neutral bars for easy placement of electronic breakers
- Factory-installed ground bar included
- Compatible with Eaton Type CH circuit breakers
- Durable powder-coated metallic enclosure with a sandalwood finish
- Supports single-phase 120/240V electrical systems
- Meets UL 67 and NEMA standards for loadcenters
- Suitable for use as service entrance equipment or sub-panel
