Vacancy Sensor, Multi-Technology (PIR Sensor / Ultrasonic Sensor), Wall Switch, 2400SF, 120-277V, No Neutral, White, Self-Adaptive, Decora® - Multi-Technology Vacancy Sensor

This Leviton OSSMT-GTW multi-technology vacancy sensor is designed for commercial lighting control applications, providing energy savings by automatically turning off lights when rooms are unoccupied. It combines passive infrared (PIR) and ultrasonic sensing technologies to detect motion within a maximum coverage area of 2400 square feet. The sensor operates without a neutral wire, making it suitable for retrofit installations where neutral wiring is unavailable. Compatible with incandescent, low-voltage lighting with electronic and magnetic transformers, fluorescent ballasts, and fans, this vacancy sensor is ideal for electrical distributors and lighting solutions providers seeking reliable occupancy sensing devices for wire and cable installations and switchgear applications.

Specifications

• Voltage: 120/208/220/230/240/277V, 50/60Hz

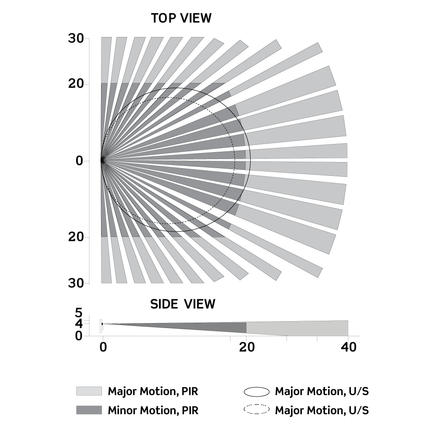

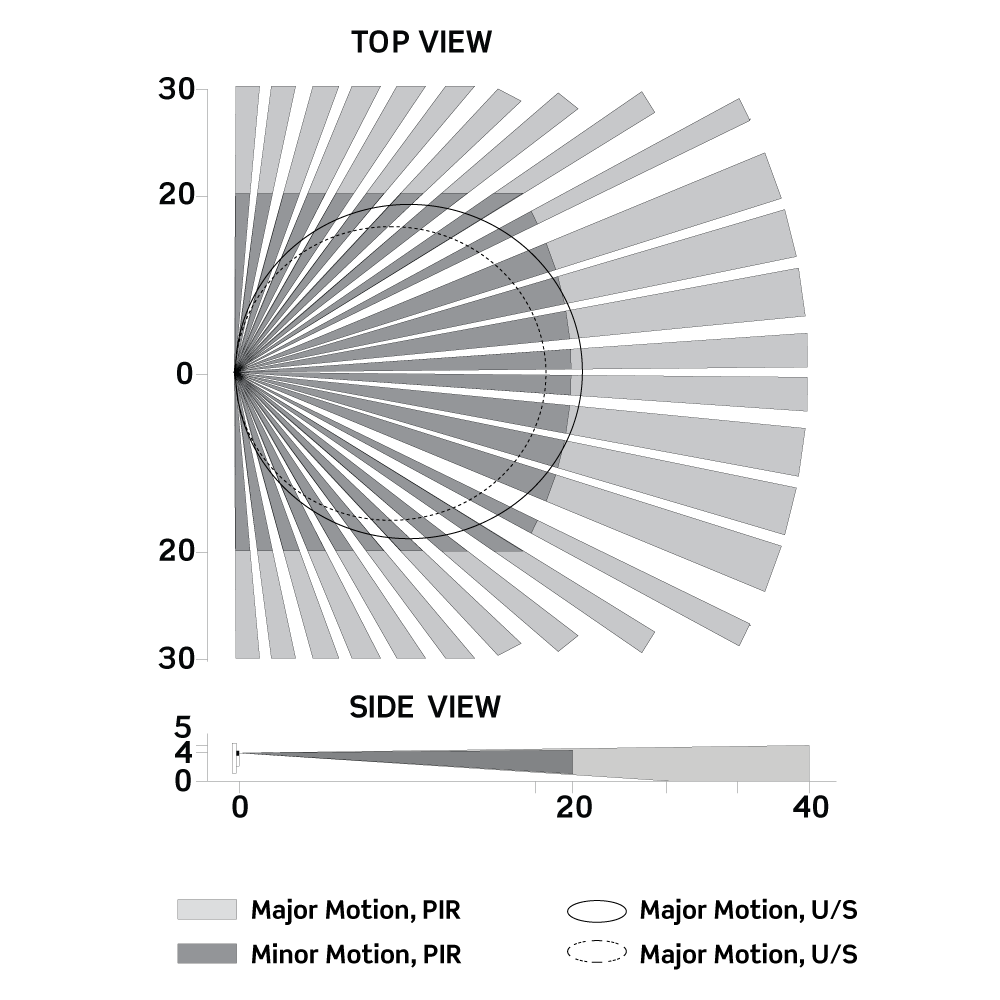

• Coverage Area: 2400 square feet
• Mounting Type: Wall Switch
• Color: White
• Device Type: Vacancy Sensor
• Grade: Commercial
• Operating Temperature: 0°C to 40°C
• LED Indicator Color: Green
• Product Weight: 3.8 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: OSSMT-GTW
• Compliance: CEC Title 20/24 Compliant

Features

• Multi-technology sensing combining passive infrared (PIR) and ultrasonic sensors for enhanced motion detection
• No neutral wire required, suitable for retrofit installations
• Self-adaptive time delay adjusts to occupancy patterns to prevent lights from remaining on unnecessarily
• Manual ON operation with automatic vacancy sensing

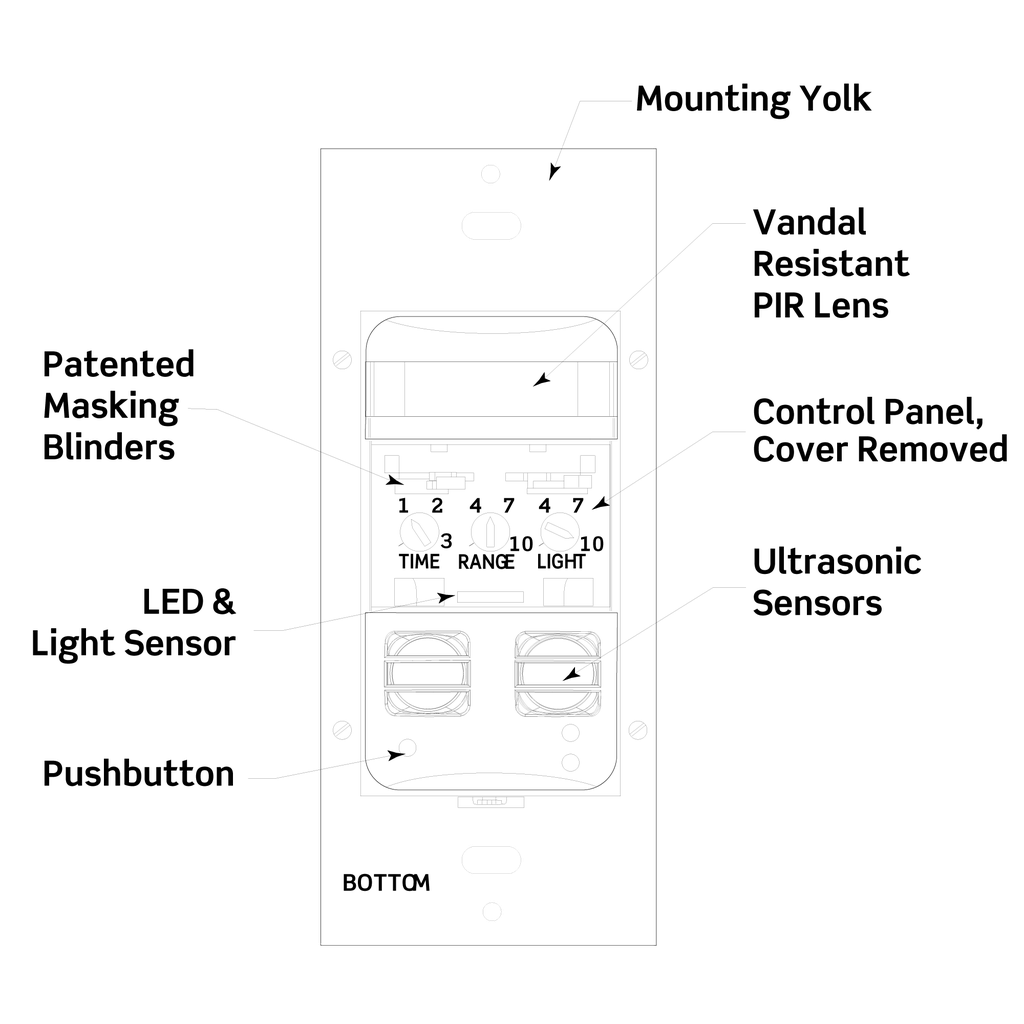

• Adjustable horizontal masking blinds for PIR sensor to block unwanted detection zones
• Walk-through time-out feature prevents lights from staying on after momentary occupancy
• Compatible with a wide range of lighting loads including incandescent, electronic and magnetic low-voltage transformers, fluorescent ballasts, and fans
• Green LED status indicator for sensor operation and motion detection feedback
• Wall switch form factor with Decora® style design
• UL, cUL, ETL, and cETL listed for safety and performance
• USMCA compliant
