Features

• The Leviton Provolt™ Dual Relay Vacancy Sensors combine line voltage vacancy sensors into a self-contained unit. The integrated design alleviates the need for separate power pack and vacancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor-based technology to optimize performance.
• Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
• Vacancy Sensing Time Outs (Delayed OFF Timer, Exclusive Walk-through Feature, False Detection Timer: (M/T) PIR scans for movement and shuts lights off after 31 minutes of vacancy preventing false triggers from HVAC systems (U/S), Time delay and saved settings are protected during power outages and will return to the last known state
• Output short circuit protection
• Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
• Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
• Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
• Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
• Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays

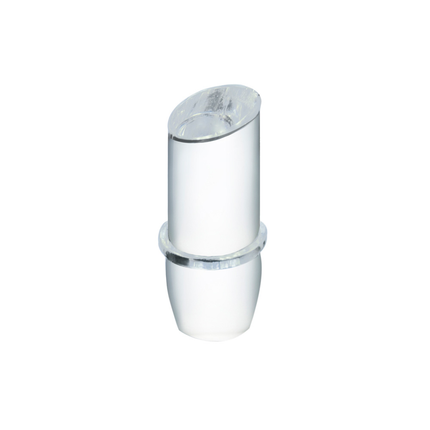

• Lenses on PIR models are easily replaceable and color-coded red (mid range) for contractors and end-users to easily identify lenses from the ground
• Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays (Red - Blinks when infrared is detecting motion and solid during device malfunction, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed, Green - Blinks when U/S is detected)

Color Variations

• White

Specifications

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Application: Code Compliance, Manual ON/Auto OFF
• Color: White
• Feature: Multi-Technology Line Voltage Dual Relay
• Grade: Commercial

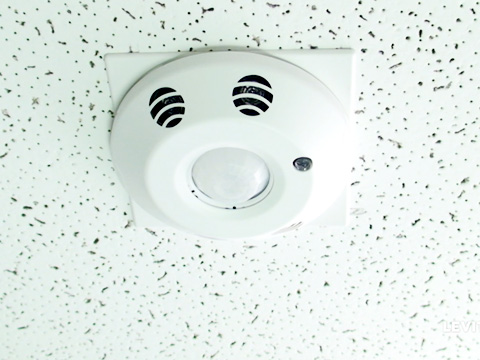

• Mounting: Ceiling Mount
• Product Line: Provolt
• Sensor Technology: Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
• Sensor Type: Vacancy, Photocell
• Time Delay: 30s-30m
• Vacancy Sensor: Yes

Performance Specifications

• Coverage (Sq.Ft.): 2000
• Pattern: 360°

Electrical Specifications

• Current Consumption: 60-30mA
• Frequency: 50/60Hz
• Load Rating: 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Tungsten Magnetic Ballast, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
• Neutral Wire Connection: Required
• Title 24 Compliant: Yes
• Voltage: 120/230/277 VAC

Standards and Certifications

• Listings: Can be used to comply with Title 24, Part 6 vacancy sensing requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL listed, CE compliant, NOM certified, RoHS compliant, NY LLC48 compliant

Mechanical Specifications

• Mounting Type: Ceiling Mount
• Relay Type: Dual Relay
• Size: Width 4.80" (121.92mm), Depth 2.39" (60.71mm)

Environmental Specifications

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Relative Humidity: 0% to 90% non-condensing
• Storage Temperature Range: -15° to 160°F (-26° to 71°C)

Type

• Product Type: Vacancy Sensor and Photocell

Warranty

• Warranty: 5-Year Limited
