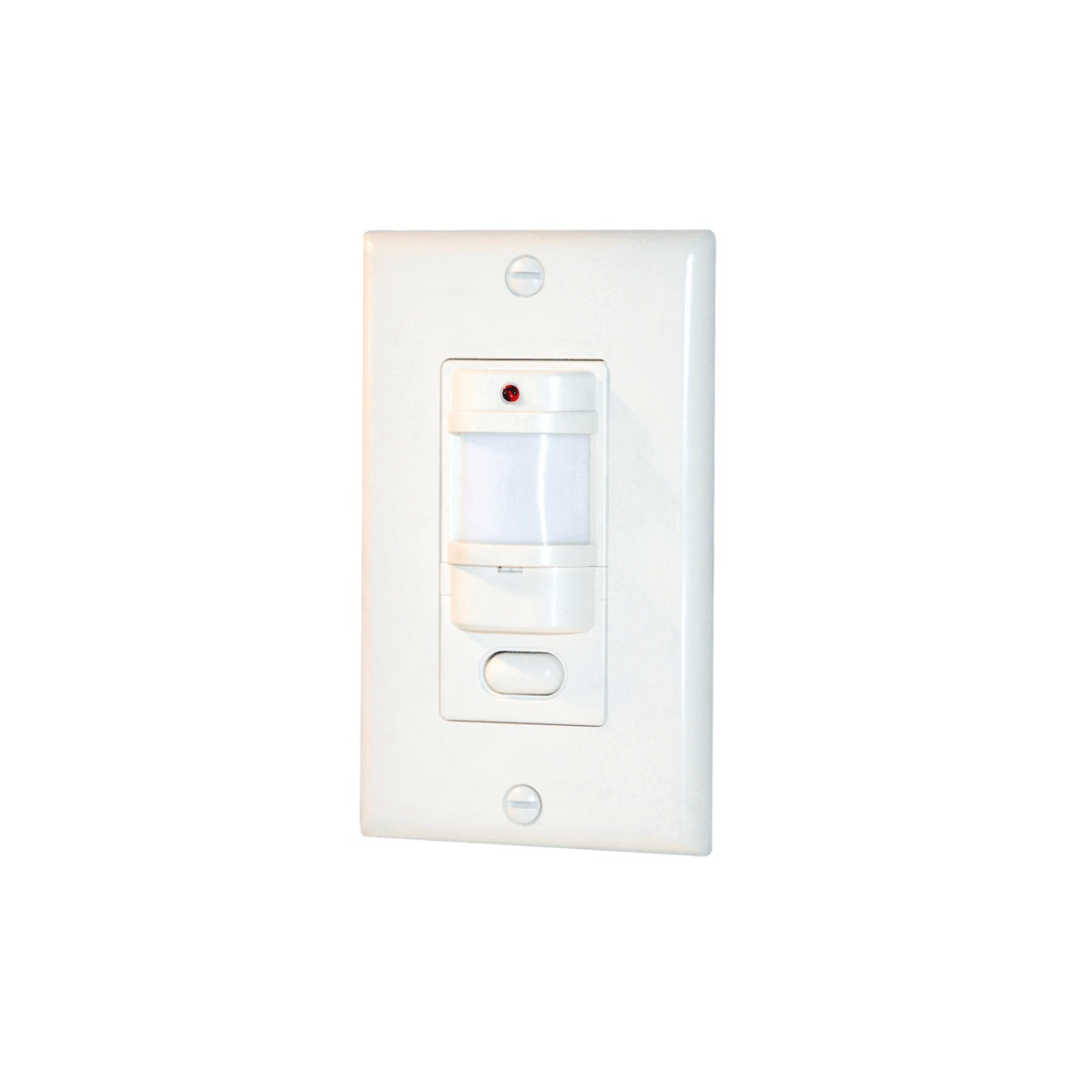

Vacancy Sensor 800W 120 Wall White – Smart Switch Vacancy Sensor

The Vacancy Sensor 800W 120 Wall White by RAB is a smart switch designed for energy-efficient lighting control in indoor applications. It features a sensitive passive infrared motion detector with a 180° wide-angle view covering up to 1000 square feet, ideal for offices, schools, gyms, and other commercial spaces. This sensor requires manual activation with automatic shut-off, complying with California Title 24 energy conservation standards. It supports both incandescent and fluorescent lighting loads and is compatible with most electronic ballasts, making it a reliable component for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer Part #: LVS800W/120
• Color: White
• Coverage Area: 1000 square feet
• Detection Angle: 180°
• Detection Zones: 18 zones
• Detection Range: Up to 32 feet
• Time Delay Adjustment: 8 seconds to 15 minutes
• Switching Capacity: 800W Incandescent & Fluorescent @ 120V, 1200W @ 277V
• Power Consumption: Negligible
• Wiring: Hot and common wires required, no ground required
• Temperature Range: -4°F to +104°F (-20°C to +40°C)
• Humidity Range: 93% relative humidity
• Weight: 0.3 lbs (3.3 oz)
• Dimensions: 4.06" H x 1.69" W x 2.56" D (103mm x 43mm x 65mm)
• UL Listed Photocontrol UL Standard 773A
• Compliance: California Title 24

Features

• Manual ON switch with automatic OFF for energy savings
• Full 180° view with 18 detection zones to eliminate dead spots
• LED detection indicator for walk testing and status
• Tough, vandal-resistant lens and decorator style wall plate included
• Fits single or multi-gang boxes without special adapters
• Works with electronic ballasts and has no minimum load requirement
• Vandal-proof design suitable for high abuse areas such as schools and gyms
• Easy installation replacing single-pole wall switches without additional wiring
