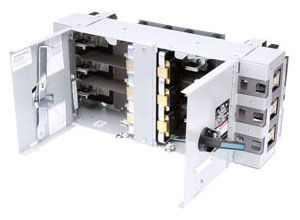

V7H3605 Panelboard Disconnect Switch - Electrical Disconnect Switch

The Siemens V7H3605 is a 400-ampere, 3-pole panelboard disconnect switch designed for reliable electrical distribution and control. It is suitable for use in switchboards and panelboards, offering robust performance for industrial and commercial electrical systems. This switch is engineered for seamless integration by electrical distributors and lighting solutions providers, supporting wire and cable connections with high-quality switchgear components.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: V7H3605
• Current Rating: 400 amperes
• Number of Poles: 3
• Voltage Rating: 600 VAC
• Dimensions (WxHxD): 17" x 15" x 10.5"
• Weight: 44 lbs
• Lug Wire Range: (2)-#1/0 to 750 kcmil or (4)-#1/0 to #4/0 copper/aluminum
• Fuse Classes: H, R, J, T
• Mounting: Bidirectional (left or right side load cabling)
• Standard: UL Listed (File #E6849), Meets UL98 and NEMA KS-1-2001

Features

• Double-break switching action for reduced heat generation and increased switching speed
• Visible blade design with highly visible ON/OFF indication
• Self-aligning knife blades ensure positive and reliable contact
• KIRK™ key integration option for enhanced security
• Standard 750 kcmil lugs with spring-loaded heat sink fuse clip
• Lay-in lugs for easy cabling on 15” version
• Pressure terminal connections suitable for aluminum or copper wire
• Moveable base eliminates need for J-class fuse kit
• Backward compatible with legacy switches
• Meets NFPA 79 for defeatable ON/OFF operation with door open
