V24GB606 Steel Plugmold® Multioutlet Strip - Multioutlet Electrical Power Distribution

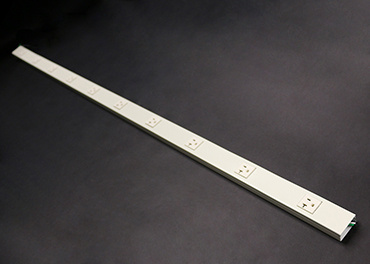

The V24GB606 Steel Plugmold® Multioutlet Strip by Wiremold is a 6-foot multioutlet power strip designed for efficient electrical distribution in commercial and industrial environments. It features 12 single receptacles spaced 6 inches apart, providing convenient access to multiple electrical outlets along a compact steel raceway. This product is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring reliable multioutlet assemblies for small appliance branch circuits or similar applications.

Specifications

• Product Name: V24GB606 Steel Plugmold® Multioutlet Strip
• Length: 6 feet
• Number of Receptacles: 12 single receptacles
• Receptacle Spacing: 6 inches
• Material: Steel
• Dimensions: Depth - 0.9 inches, Width - 1.9 inches, Length - 1.9 inches
• Product Weight: 5.95 lbs
• Voltage and Current Rating: 20A, 125V (grounding type receptacles prewired with No. 12 type THHN conductors)
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Wiremold
• Manufacturer Part Number: V24GB606

Features

• Prewired with No. 12 THHN conductors for 20 Amp feed-through capability
• UL Listed for U.S. and Canadian safety standards
• Steel construction for durability and surface mounting
• Designed for easy installation with snap-on covers and coupling options
• Compliant with National Electrical Code requirements for small appliance branch circuits
• Compatible with Wiremold V2400 raceway system components for flexible installation

Downloads & Links

• Installation Guidelines for Receptacles on Small Appliance Branch Circuits
• 2400 Series Plugmold Multioutlet System - V2400
• 2400 Series Steel Plugmold Multioutlet System with Insulated/Isolated Grounding Receptacles
• Plugmold Series Part List - COO
• 2400 Series Steel Plugmold Multioutlet System - 24S
• 2400 Series Steel Plugmold Multioutlet System
• Spec Sheet
• Plugmold¬Æ Raceway & Multioutlet Assemblies
• Metal Raceway
• Installation Guidelines for Receptacles on Small Appliance Branch Circuits in the City of Chicago
