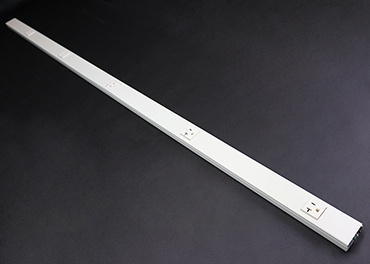

V24GB512 Steel Plugmold® Multioutlet Strip – Electrical Distributor Lighting Solutions

The V24GB512 Steel Plugmold® Multioutlet Strip by Wiremold is a 5-foot multioutlet strip designed for efficient power distribution in commercial and industrial electrical applications. It features five single outlets spaced 12 inches apart, providing convenient access to multiple power points along a steel raceway. Suitable for use in wire and cable management systems, this product supports streamlined installations for lighting solutions and electrical distribution setups, making it a reliable component for switchgear suppliers and electrical distributors.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part Number: V24GB512
• Length: 5 feet
• Outlet Configuration: 5 single outlets spaced 12 inches apart
• Material: Steel
• Product Weight: 4.78 lbs
• Dimensions: Depth 0.9 in, Width 1.9 in, Length 1.9 in
• Voltage Rating: 125V, 20A grounding type receptacles prewired with No. 12 THHN conductors (from installation instructions)
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776085426

Features

• Prewired with No. 12 type THHN conductors for 20A, 125V grounding receptacles ensuring compliance with NEC standards
• Steel construction provides durability and secure mounting for electrical distribution
• Designed for surface mounting with included hardware and compatible with Wiremold V2400 raceway system components
• Modular design allows coupling with additional Plugmold sections to extend power distribution runs
• Supports installation methods including end-feeding and back-feeding from flexible or rigid metal conduit
• UL Listed for U.S. and Canadian safety standards, suitable for interior use
• Compatible with W30 pressure-type wire connectors for secure wiring connections
