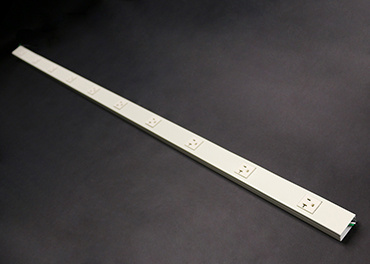

V24GB306 Steel Plugmold® Multioutlet Strip – Electrical Distributor Power Strip

The V24GB306 Steel Plugmold® Multioutlet Strip is a 3-foot long multioutlet assembly designed for use in commercial and industrial electrical distribution applications. It features six single receptacles spaced 6 inches apart, providing multiple power access points along a compact steel raceway. This product is suitable for electrical distributors and switchgear suppliers seeking reliable lighting solutions and wire and cable management in interior environments. Manufactured by Wiremold in the United States, it supports 20-amp, 125-volt circuits with prewired grounding-type receptacles and is compliant with National Electrical Code standards.

Specifications

• Product Name: V24GB306 Steel Plugmold® Multioutlet Strip
• Length: 3 feet
• Receptacles: 6 single receptacles spaced 6 inches apart
• Material: Steel
• Dimensions: 1.9 in width × 1.9 in length × 0.9 in depth
• Product Weight: 3.15 lbs
• Voltage Rating: 125V
• Current Rating: 20A grounding type receptacles
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part Number: V24GB306
• Made in USA: Yes

Features

• Prewired with No. 12 THHN conductors for 20A feed-through
• Steel construction ensures durability and grounding compliance
• Compact design facilitates installation in raceway systems or surface mounts
• Compliant with NEC requirements for small appliance branch circuits
• Supports multiple wiring feed methods including end feeding and back feeding
• Includes components for secure mounting and raceway coupling
