Features

• High Sensitivity for Exceptional Performance
• Two Relays for Control of Two Separate Lighting Loads or Circuits
• Selectable Operation, Walk through, Test and Presentation Modes for Increased Energy Savings and Convenience
• Low Profile Design
• Defaults to Auto-On to 50% Operation for Maximum Energy Savings
• Part of a Comprehensive Line of PIR, Ultrasonic and Dual Technology Wall Switch Sensors
• Detection Signature Processing Eliminates False Triggers and Provide Immunity to RFI and EMI
• Zero Crossing for Long Relay Life
• Selectable Audible or Visual Alerts for Impending ShutOff
• Test Mode Allows Quick and Easy Adjustments
• In Automatic Mode, Sensor Returns Automatically to Auto-On after Lights are Turned Off Manually
• Ideal for Presentations
• LED Indicates Occupancy Detection
• Service Mode Allows Sensor to Operate as a Service Switch in the Unlikely Event of a Failure

Specifications

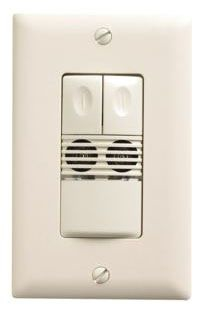

• Type: Wall Switch Occupancy Sensor with Dual Relay
• Sensor Type: Ultrasonic
• Voltage Rating: 120/277 VAC at 50/60 Hz
• Load Type: Ballast/Tungsten
• Load Rating: 0 to 800 W at 120 VAC (Ballast/Tungsten), 0 to 1200 W at 277 VAC (Ballast)
• Area Coverage: 20 Ft x 20 Ft (Major Motion), 15 Ft x 15 Ft (Minor Motion)
• Time Delay: 5 to 30 Min
• Wall Plate Type: Decorator (Included)

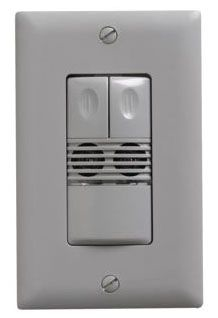

• Finish: Gray
• Mounting: Wall
• Size: 2.73 Inch L x 1.76 Inch W x 1.83 Inch D
• Application: Restroom, Utility/Storage Room
• Approval: UL, CUL
• Series/Model: UW-200
