UW-100-LA, Wall Switch Occupancy Sensor
SKU: #255111
Part: #UW-100-LA
UPC: 754182919499
UW-100-LA, Wall Switch Occupancy Sensor
SKU: #255111
Part: #UW-100-LA
UPC: 754182919499
Next day delivery
Description

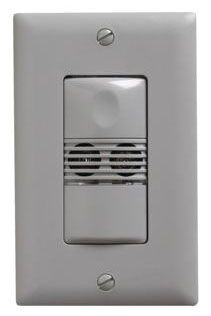

UW-100-LA Wall Switch Occupancy Sensor
The UW-100-LA is a light almond ultrasonic wall switch occupancy sensor designed to control lighting based on occupancy detection. It is ideal for spaces with partially obstructed lines of sight such as individual restrooms, restrooms with two stalls, and utility or storage rooms. This sensor uses high-frequency (40kHz) ultrasound to detect occupancy, automatically turning lights ON when the space is occupied and OFF after a preset time delay when vacated. It is suitable for electrical distributors and lighting solutions providers seeking reliable occupancy sensing for energy management in commercial and institutional applications.
Specifications
- Mounting Type: Wall
- Finish: Light Almond
- Product Weight: 4.35 lbs
- Voltage: 120/277 VAC; 50/60 Hz
- Load Rating: @120 VAC, 0-800 W ballast or tungsten, 1/6 hp; @277 VAC, 0-1200 W ballast
- Time Delays: 5, 10, 15, 20, 25, or 30 minutes, walk-through, test mode
- Coverage: Major motion 20’ x 20’; Minor motion 15’ x 15’
- Sensitivity Adjustment: Ultrasonic, fully variable
- Dimensions: 2.73” x 1.76” x 1.83” (69.3 mm x 44.7 mm x 46.5 mm) L x W x D
- UL and cUL Listed
- Five Year Warranty
Features
- High sensitivity ultrasonic detection for exceptional performance
- Low profile design fits in a single junction box
- Selectable operation modes including Manual-ON (default) and Auto-ON
- Walk-through mode turns lights off after 3 minutes if no motion detected
- Selectable audible and/or visual alerts for impending shutoff
- Detection Signature Processing eliminates false triggers and provides RFI/EMI immunity
- Zero-crossing relay for extended relay life
- LED indicator for occupancy detection
- Optional light level sensing with simple setup
- Service mode allows sensor to operate as a service switch in case of failure
- Compatible with decorator wall plates
- Sensor coverage tested to NEMA Guide Publication WD 7-2000
