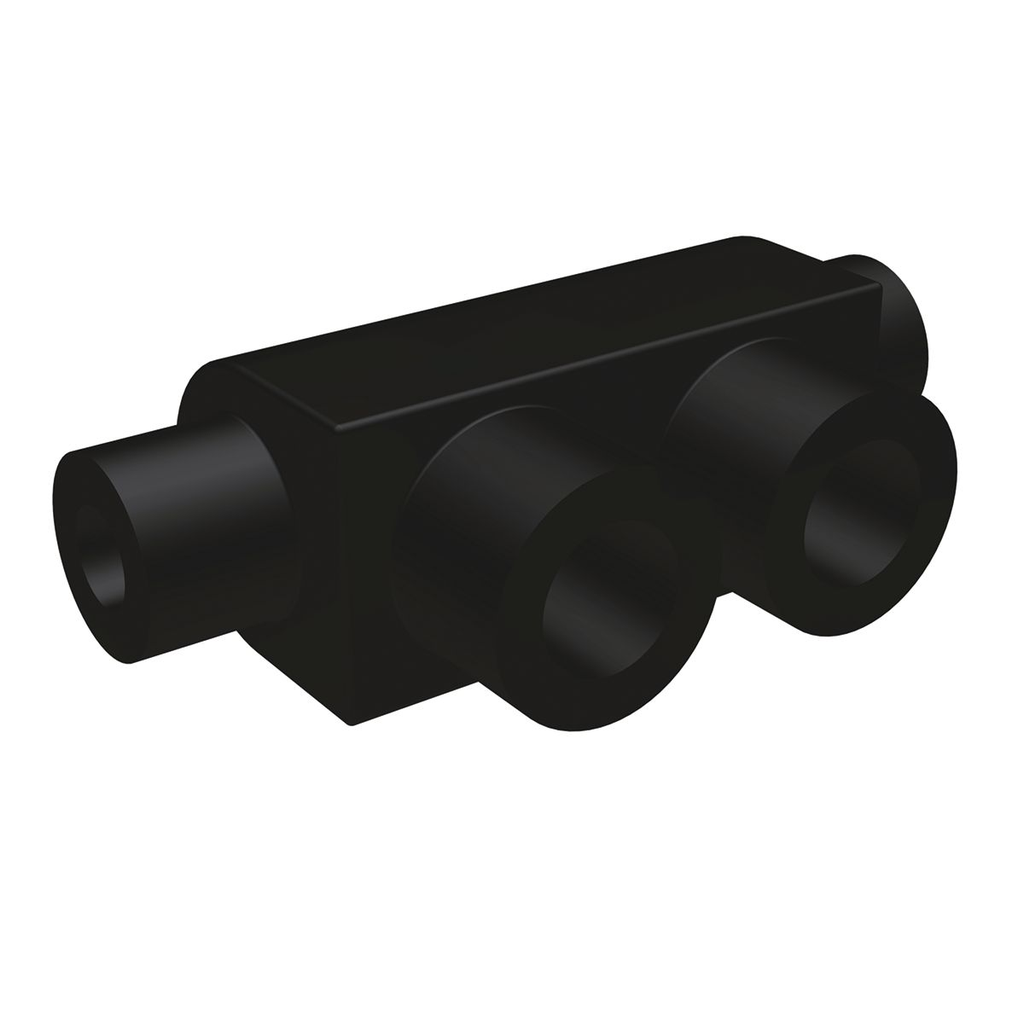

UV Rated Black UNITAP™ Splice/Reducer – Electrical Wire Connector

The UV Rated Black UNITAP™ Splice/Reducer is designed for indoor use with copper or stranded aluminum conductors, offering a reliable solution for electrical distributors, lighting solutions, and wire and cable applications. This splice/reducer provides a multi-tap connection type with plastisol insulation, ensuring durable and safe electrical connections. It is manufactured in the USA by Burndy, a trusted switchgear supplier, and supports conductor sizes ranging from 6 AWG to 500 KCMIL.

Specifications

• Name: UV Rated Black UNITAP™ Splice/Reducer
• Conductor Size: 6 AWG - 500 KCMIL
• Material: Aluminum
• Connection Type: Multi Tap
• Insulation Type: Plastisol
• Width: 1.62 in
• Product Weight: 0.6700 lbs
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: 1PBS500

Features

• UV Rated black insulation suitable for indoor electrical installations
• Multi-tap design for flexible wiring configurations
• Plastisol insulation for enhanced durability and electrical protection
• Range-taking conductor ports to accommodate a wide range of wire sizes
• Pre-filled conductor ports with oxide inhibitor to prevent corrosion

Downloads & Links

• Catalog Full Asset Reference 1
• Customer Notices Asset Reference
• Catalog Full Asset Reference 2
• Sales Drawing Asset Reference
• Spec Sheet
