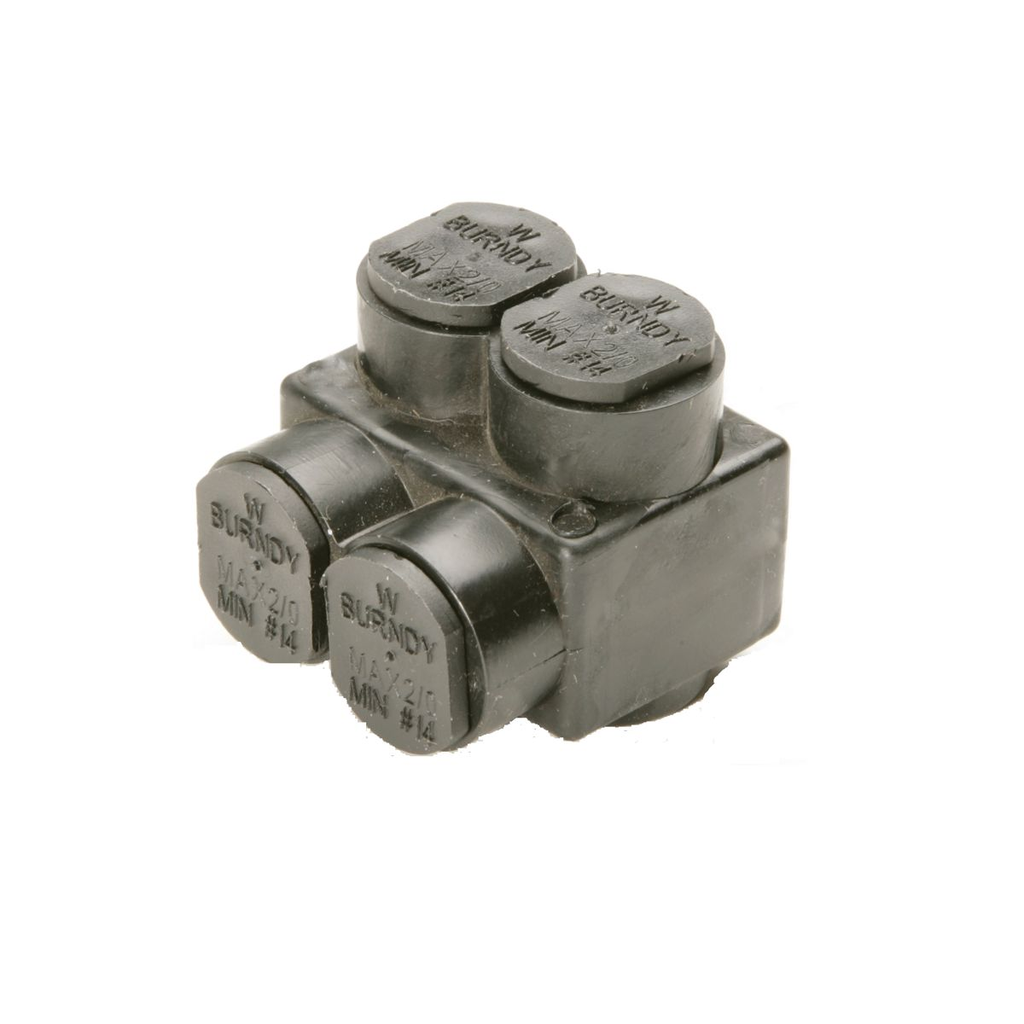

UV Rated Black UNITAP‚Ñ¢ Connector; Multi Tap Aluminum Connector

The UV Rated Black UNITAP‚Ñ¢ Connector is a multi-port aluminum electrical connector designed for indoor use with copper or stranded aluminum conductors. It features a 2-port, single-sided entry configuration suitable for wire and cable applications requiring reliable multi-tap connections. This connector is ideal for electrical distributors and switchgear suppliers seeking durable, code-compliant components for lighting solutions and general electrical distribution.

Specifications

• Material: Aluminum
• Connection Type: Multi Tap
• Conductor Size: 14-2/0 AWG
• Insulation Type: Plastisol
• Number of Ports: 2
• Width: 1.40 in
• Voltage Maximum: 600 V
• Temperature Rating: 194¬∞ F
• Installation Torque Recommended: 120 in-lb
• Country of Origin: United States
• UL Listed: Yes
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• UPC: 781810287484

Features

• UV Rated covering over AL6061-T6 aluminum body eliminates the need for taping and reduces installation time
• Pre-installed oxide inhibitor prevents moisture and contaminants from entering the contact area
• Range-taking capability minimizes the number of connectors required in inventory
• Plastisol insulation provides reliable electrical insulation
• Manufactured in the USA ensuring consistent quality and compliance
