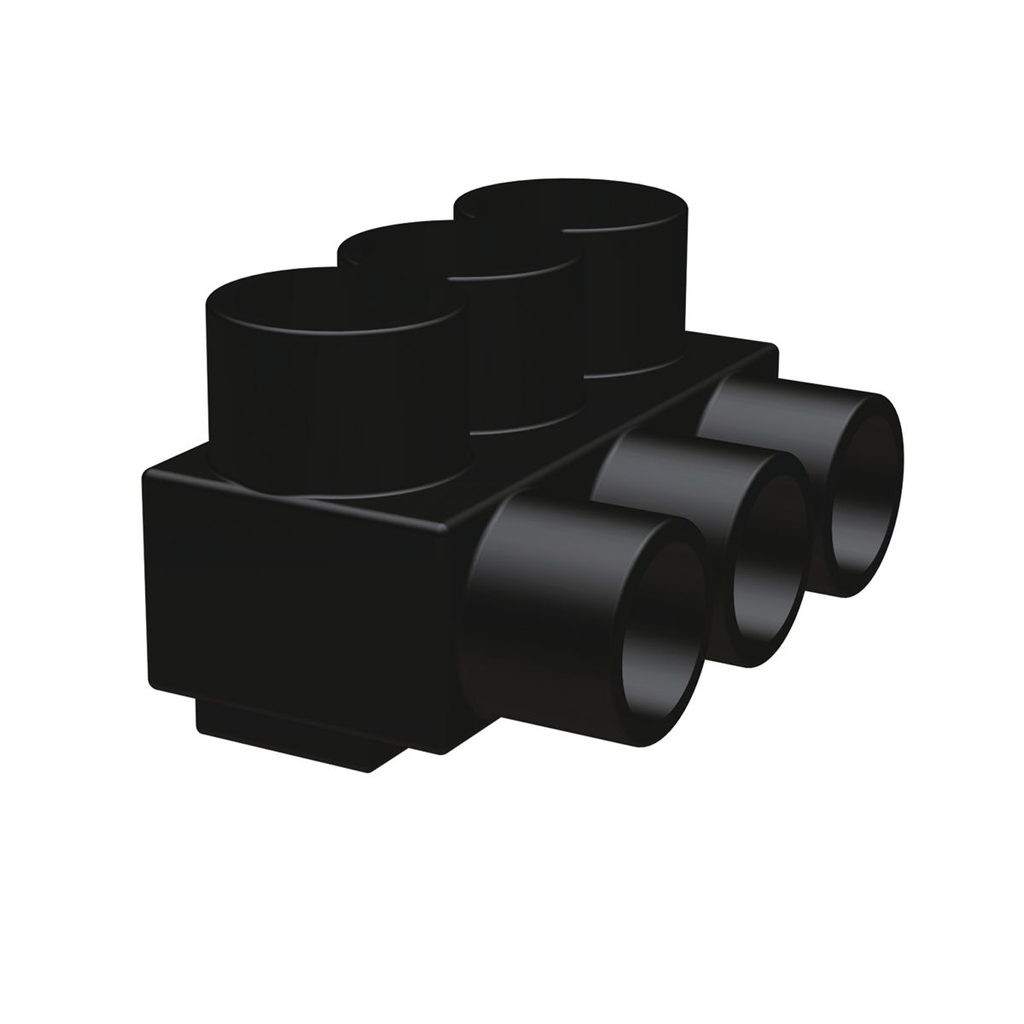

UV Rated Black UNITAP™ Connector – Electrical Connector

The UV Rated Black UNITAP™ Connector by Burndy is designed for indoor electrical applications requiring reliable multi-tap connections. This connector is suitable for copper or stranded aluminum conductors and provides a range-taking capability that reduces inventory needs. It is ideal for electrical distributors and lighting solutions providers seeking durable wire and cable connectors with robust insulation and corrosion resistance.

Specifications

• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Conductor Size: 14-4 AWG
• Connection Type: Multi Tap
• Material: Aluminum
• Insulation Type: Plastisol
• Width: 1.25 in
• Product Weight: 0.1100 lbs
• Manufacturer: Burndy
• Manufacturer Part #: 1PL44
• Country of Origin: United States
• Made in USA: Yes

Features

• UV Rated black plastisol covered body for sunlight exposure protection
• Range-taking conductor ports reduce the number of connectors required in inventory
• Pre-filled conductor ports with oxide inhibitor to prevent moisture and contaminants
• Single-sided entry and offset entry configurations available
• Compact dimensions for ease of installation (approx. 2.03 in length)
