Utility Boxes Handy Box - Electrical Distributor Wire and Cable Solution

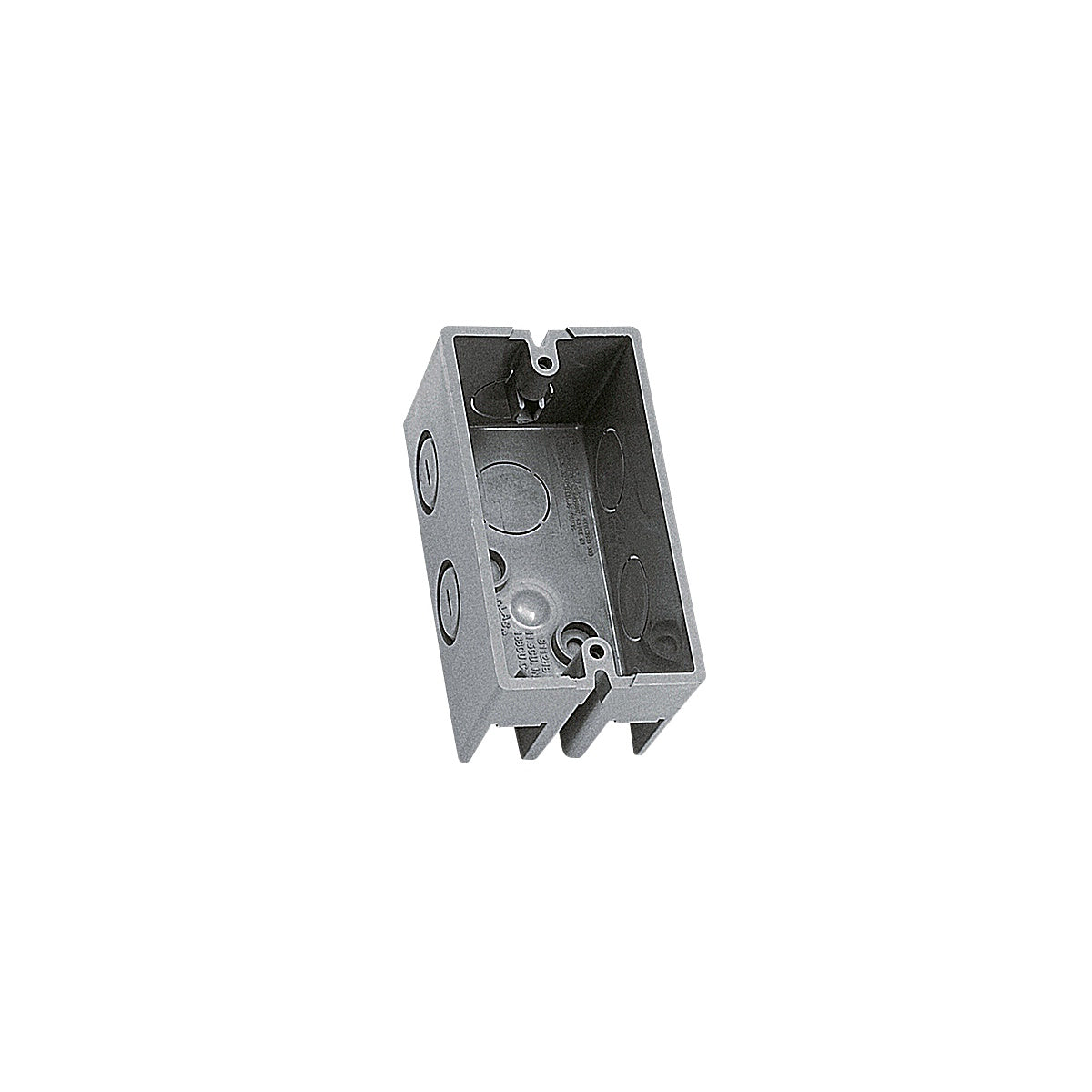

The Carlon Utility Boxes Handy Box is a one-gang device connection box designed for electrical distributors and lighting solutions applications. Constructed from non-metallic thermoplastic material, it offers a durable, rust-resistant enclosure for wiring installations. This gray, rectangular box provides 12 cubic inches of capacity and is suitable for mounting switching equipment with adjustable bar hangers, making it ideal for wire and cable management in commercial and residential switchgear supply.

Specifications

• Manufacturer: Carlon
• Manufacturer Part #: B112HB
• Material: Non-Metallic Plastic
• Color: Gray
• Dimensions: Length 4 in (101.6 mm), Width 1-7/8 in (47.625 mm), Depth 2-1/8 in (53.975 mm)
• Cubic Capacity: 12 cubic inches
• Construction Type: Device connection box (round/square)
• Mounting Method: Adjustable bar hanger, Screwing
• Box Quantity: 50
• Product Weight: 18.5 lbs per 100 units
• Standard: E 11461

Features

• Thermoplastic construction that will not rust or conduct electricity
• Gray color for standard electrical installations
• Designed for use as a one-gang handy box with multiple knockout options
• Compatible with mounting switching equipment and adjustable bar hangers
• Non-metallic design enhances safety and corrosion resistance

Downloads & Links

• Technical Drawing / Data Sheet
• Spec Sheet
