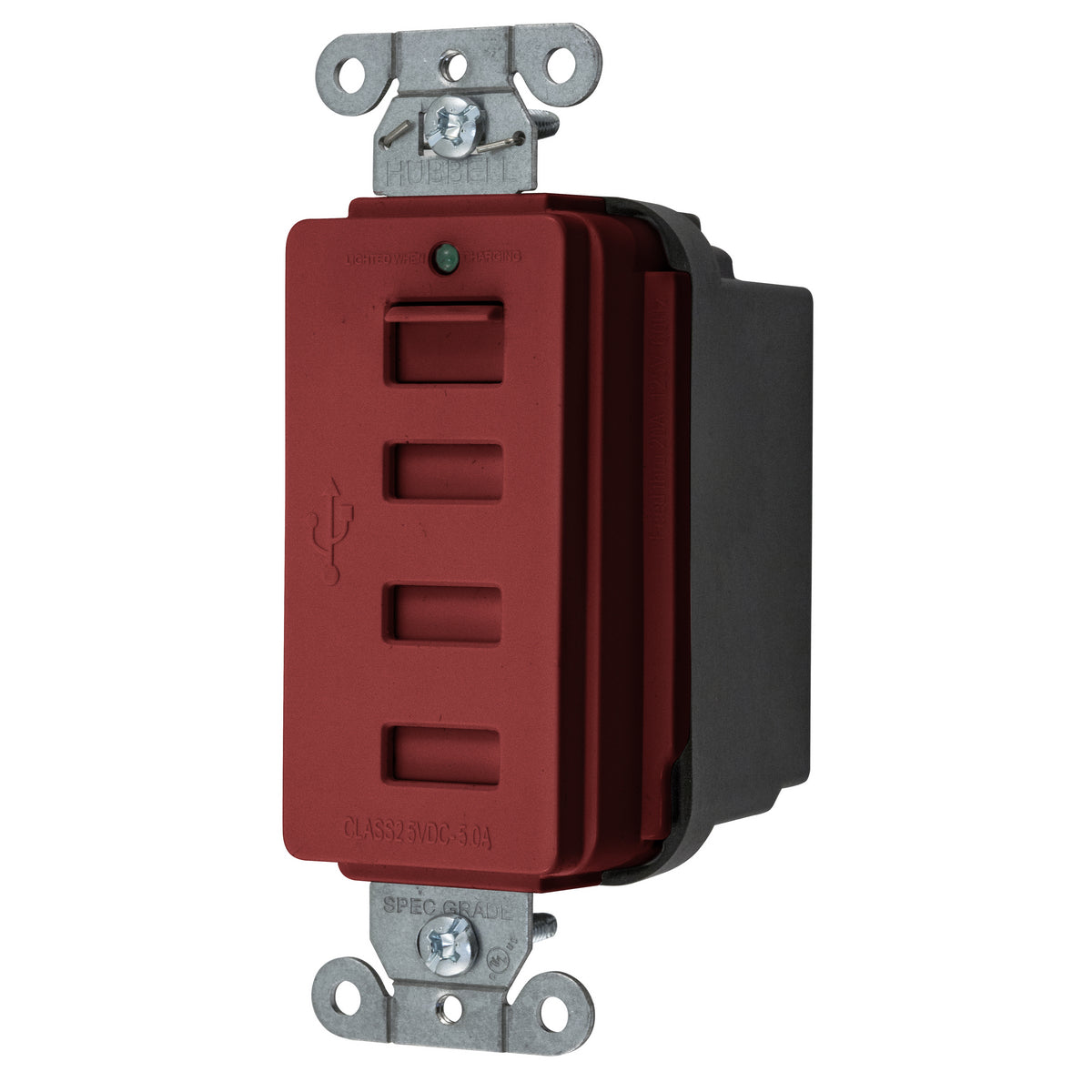

USB4R, USB Charger and Straight Blade Receptacle – USB Charging Solutions

The USB4R is a combination USB charger and straight blade receptacle designed for power and USB device charging applications. This device is suitable for electrical distributors and lighting solutions providers looking to offer integrated wire and cable charging options. It features a tamper-resistant design with four Type A USB ports, providing 5 Amp, 5 Volt DC charging alongside a 125 Volt AC, 20 Amp receptacle. The unit is constructed with reinforced thermoplastic for durability and includes a green LED indicator to show USB power availability.

Specifications

• Application: Power and USB Device Charging
• Voltage Rating: 125 Volt AC, 5 Volt DC (USB Port)
• Current Rating: 20 Amp (Receptacle), 5 Amp (USB Port)
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Ground Type: Grounding
• Material: Reinforced Thermoplastic
• Color: Red
• Dimensions: 4.16 in (Length) x 2.14 in (Width) x 1.91 in (Height)
• Mounting: Screw Mount
• Connection: Terminal Screws
• NEMA Rating: 5-15R
• Dielectric Voltage: 2000 Volt
• Wire Size: 14 to 10 AWG
• Temperature Rating: -40 to 75 °C
• Environmental Conditions: Indoor Dry unless protected by additional means
• Approval: UL 131, ETL (Canada and US)
• Product Weight: 0.35 lbs

Features

• Four USB Type A ports, 5 Amp, 5 Volt DC, Class 2.0
• Switch-activated port door for zero no-load power draw when closed
• Tamper-resistant decorator duplex receptacle design
• Green LED indicator to show USB power availability
• Compatible with USB 1.1, 2.0, and 3.0 devices, including Apple products
• USB ports rated for 10,000 plug insertions and removals
• Auto self-grounding stainless steel staple for reliable grounding
• Face and base constructed of reinforced thermoplastic (RTP)
• Mounting strap made of galvanized steel with zinc-plated mounting screws
