Features

LED Indicator, Shallow Profile

• Compact depth for use in raceway, delivery systems and where space is limited
• 2 stainless steel ports rated for 10,000 insertions and removals
• Switch activated port door; when open enables power; when closed, all power is switched off, for a “zero” no-load draw
• Bidirectional clamp wiring allows horizontal or back entry of solid or stranded wire
• Compatible with USB 1.1/2.0/3.0 devices, including Apple® products

Specifications

• Application: USB Charger Specification Grade
• Color: Gray
• Indicator(s) Type: Green LED

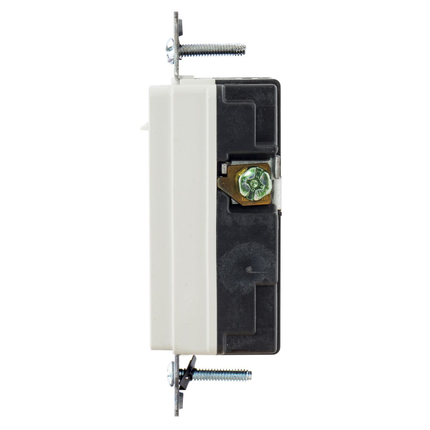

• Item Type: USB Charger 2 Port Outlet Style Line Decorator
• Material: Thermoplastic
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance

• Electrical - Dielectric Voltage - Withstands 1,500V minimum
• Electrical - Feed-Through - Circuit feed-through 20 Amp, 125 Volt
• Electrical - Rating - 3A, 5V DC
• Environmental - Flammability - UL 5VA
• Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Mechanical - USB Port - Stainless steel Rated for 10,000 plug insertions and removal

• Series: 2 Port Outlet
• Style: Style Line Decorator
• Type: Two Type 2.0 Ports
• UPC: 883778305269
• Dimensions: 4.12 in x 1.65 in x 1.31 in
• Height: 1.31 in
• Length: 4.12 in
• Width: 1.65 in
• Amperage Rating: 3 A

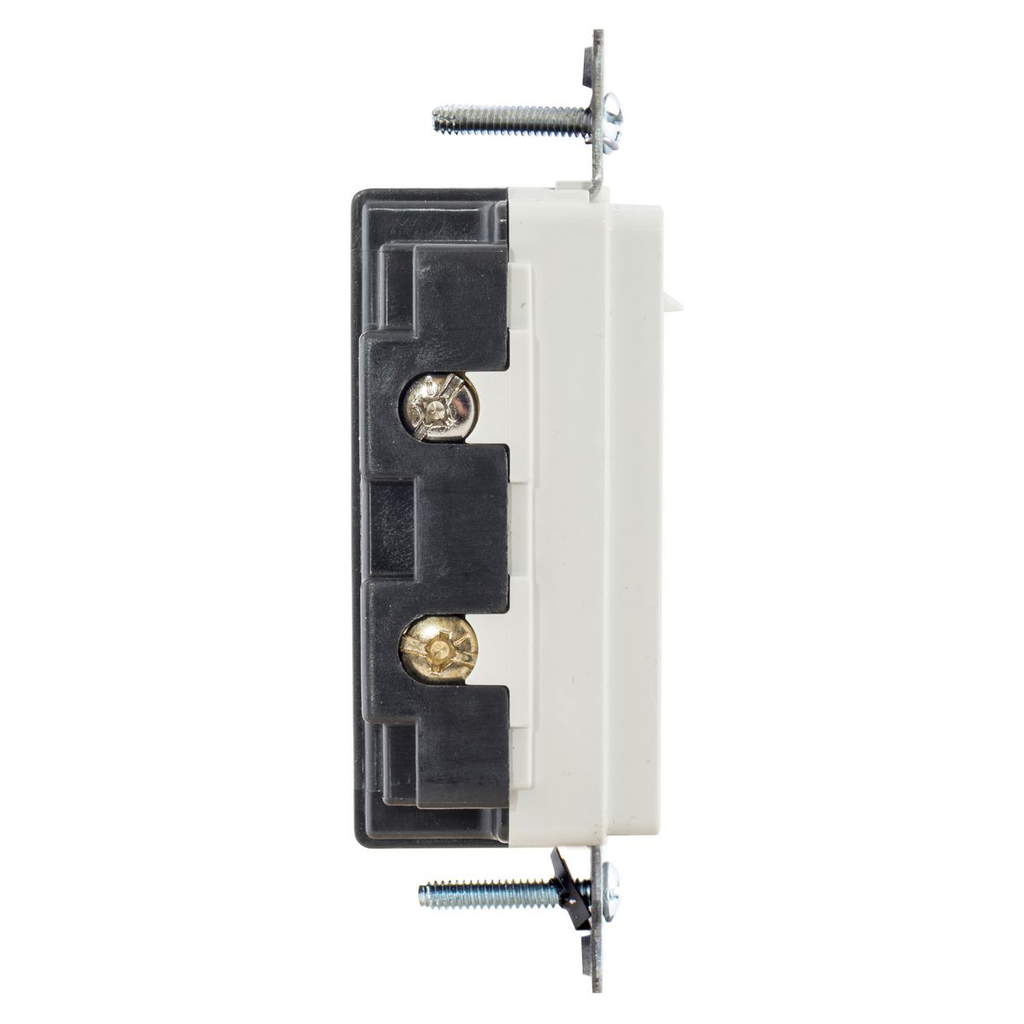

• Connectivity: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 1,500V minimum
• Voltage Rating: 5 V
• Wire Size: #14 AWG to #10 AWG
• Industry Standard(s): cULus to UL 1310
• Carton Quantity: 10
