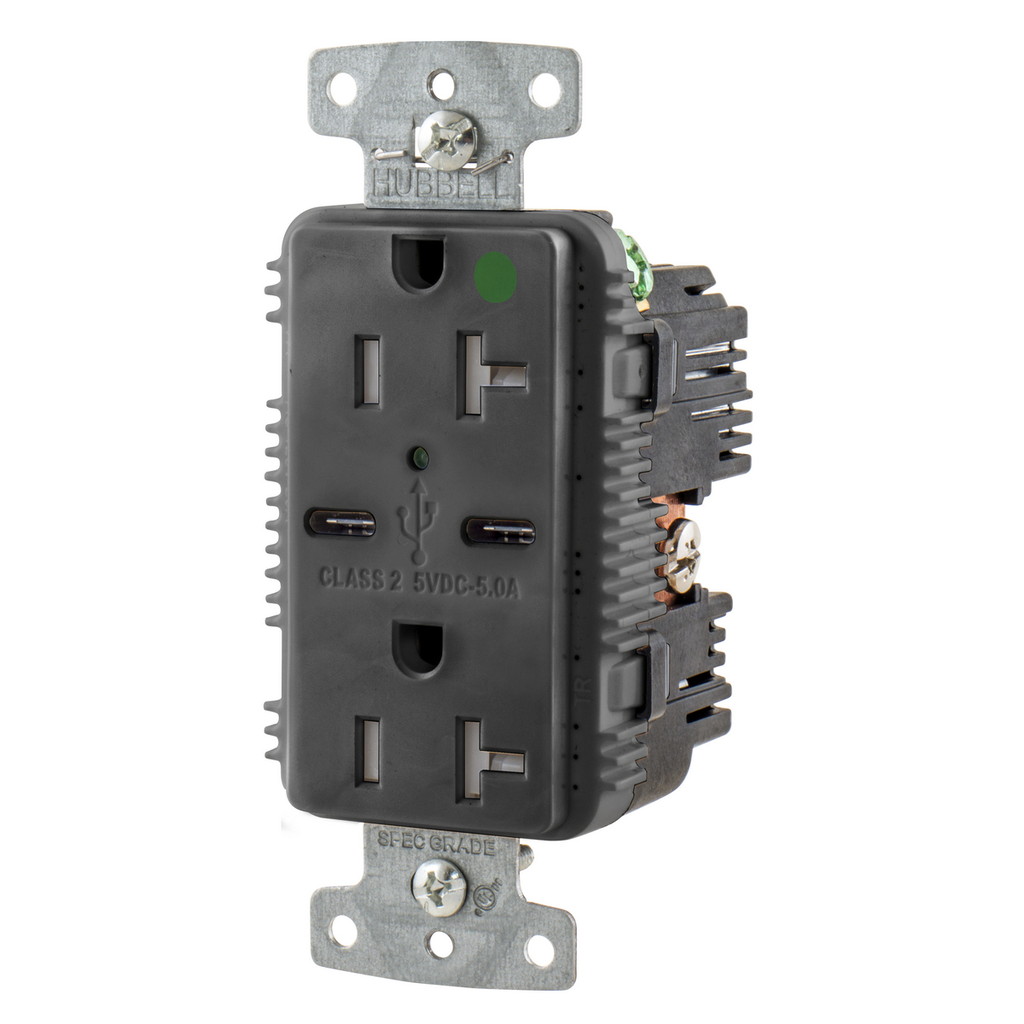

USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 2) 5A "C" Ports, Black

This USB Charger Duplex Receptacle is designed for USB charging and power applications in indoor dry environments. Suitable for electrical distributors and switchgear suppliers, it integrates standard 20A, 125V duplex receptacle functionality with two 5A USB Type-C charging ports. The device supports 2-pole, 3-wire grounding wiring and complies with NEMA 5-20R rating, making it appropriate for commercial and healthcare settings requiring hospital-grade components.

Specifications

• Application: USB Charging/Power
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 125V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Composite
• Color: Black
• Width: 2.2 in
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Product Weight: 4.05 lbs
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China
• Manufacturer Part #: USB8300C5BK

Features

• Hospital-grade construction for reliable performance in healthcare environments
• Two integrated 5A USB Type-C charging ports for simultaneous device charging
• Duplex receptacle design compatible with standard 5-20R plugs
• Composite material housing for durability and safety
• Standard mounting and terminal screw connections for easy installation
