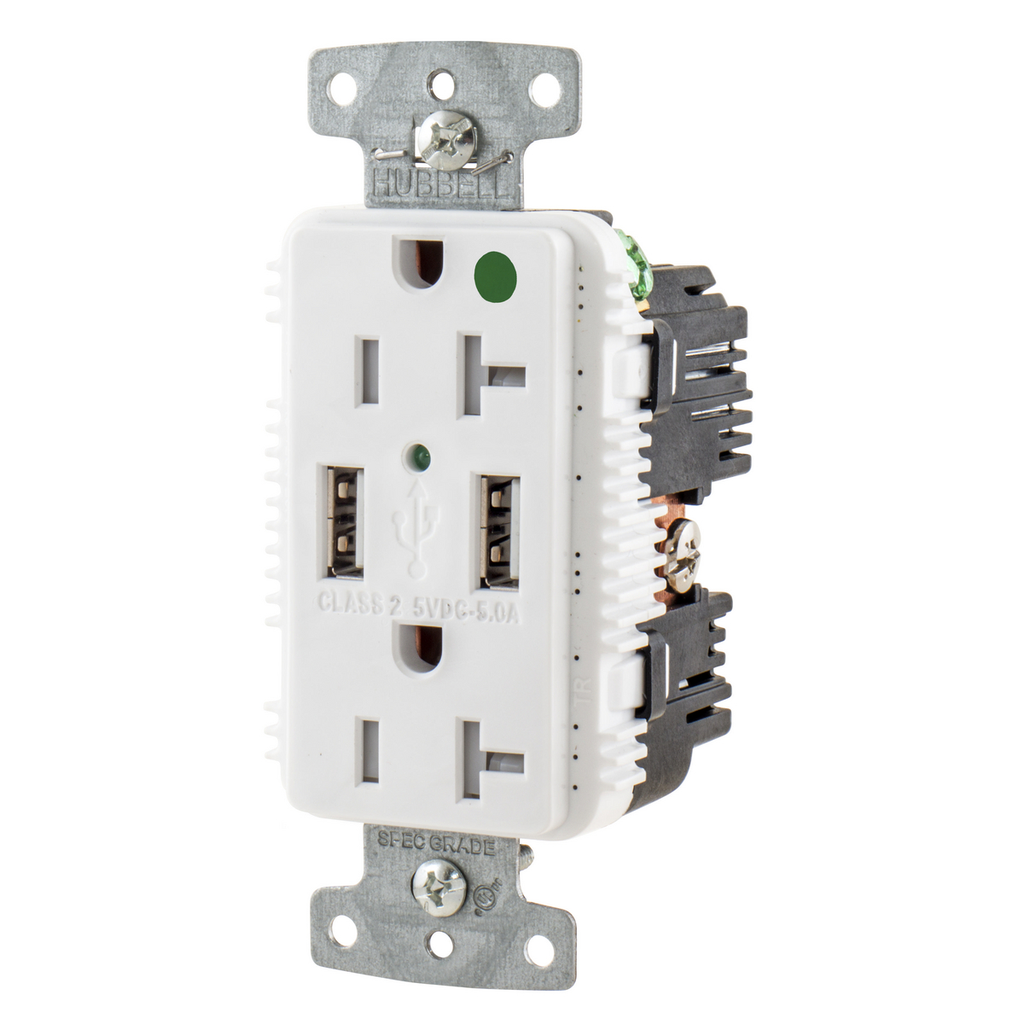

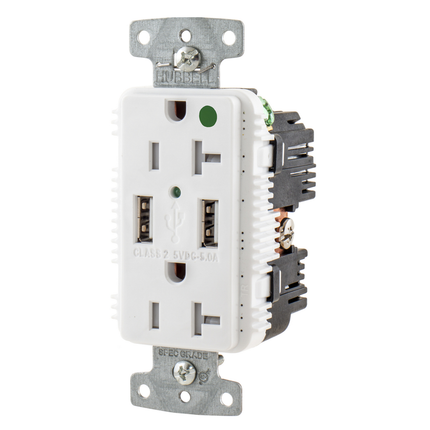

USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 2) 5A "A" USB Ports,White
SKU: #155413
Part: #USB8300A5W
UPC: 883778307102
USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 2) 5A "A" USB Ports,White
SKU: #155413
Part: #USB8300A5W
UPC: 883778307102
Next day delivery
Description
USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 2) 5A "A" USB Ports, White
This USB charger duplex receptacle is designed for hospital-grade applications, providing reliable USB charging and power delivery. It supports a 20 amp, 125 volt electrical supply with a 2-pole, 3-wire grounding configuration. Suitable for indoor dry environments unless additional protection is applied, this device integrates two 5-amp USB Type-A ports alongside standard electrical outlets, eliminating the need for external adapters. Ideal for electrical distributors and lighting solutions requiring integrated USB charging within switchgear and wiring device setups.
Specifications
- Application: USB Charging/Power
- Amperage Rating: 20 A
- Current: 20 amperes
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Color: White
- Width: 2.200 in
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: USB8300A5W
- Country of Origin: China
- Product Weight: 0.4000 lbs
Features
- Hospital Grade USB Charger Duplex Receptacle with tamper-resistant design
- Two 5A USB Type-A ports delivering 5 Volt, 5 Amp power output
- Compatible with USB BC1.2 Battery Charging and USB 2.0, 3.0, 3.1 devices
- Heavy duty stainless steel USB ports rated for 10,000 cord insertions and removals
- Patented Hubbell tamper-resistant technology with cam action shutters for enhanced safety
- Maintains standard electrical outlet function alongside USB charging capability
