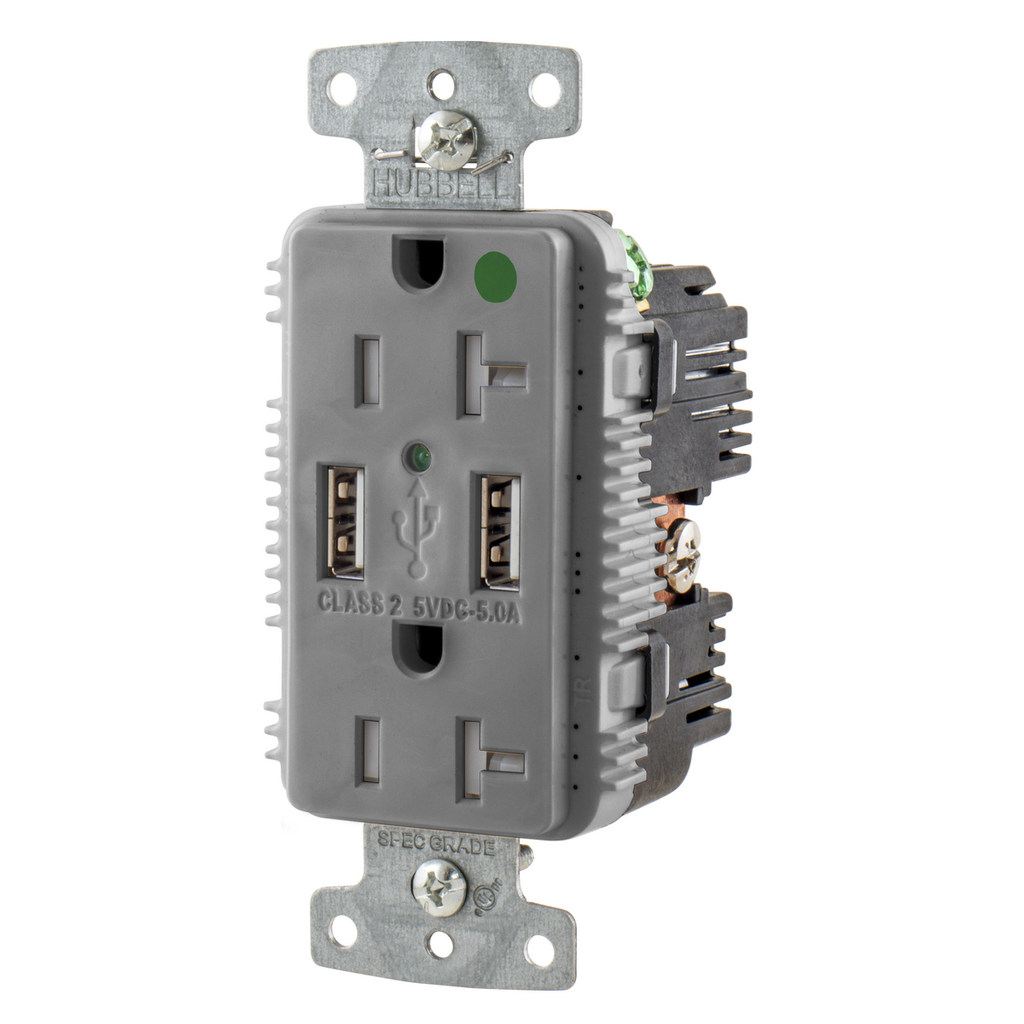

USB Charger Duplex Receptacle Hospital Grade 20A 125V

This USB Charger Duplex Receptacle is designed for USB charging and power applications, providing reliable electrical connectivity in healthcare and commercial environments. As a hospital-grade device, it meets rigorous standards for safety and durability. The receptacle features two Type A USB ports delivering 5 volts at 5 amps each, supporting USB BC1.2 Battery Charging and USB 3.0 Power Delivery specifications. It is suitable for indoor dry environments unless additional protection is applied, making it ideal for electrical distributors and switchgear suppliers focusing on lighting solutions, wire and cable, and integrated power systems.

Specifications

• Application: USB Charging/Power
• Current: 20 amperes
• Voltage Rating: 125V
• Poles: 2-Pole
• Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Material: Composite
• Color: Gray
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Width: 2.2 in
• Product Weight: 4.1 lbs
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB8300A5GY
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• LED Indicator: Green
• USB Ports: Two Type A, rated for 10,000 plug insertions/removals
• Compliance: cULus Listed to UL498, UL1310

Features

• High Power 5 Amp, 5 Volt USB Output per port
• Tamper Resistant Hospital Grade Duplex Compatible
• USB Ports constructed with stainless steel for durability
• Certified for current interrupting at full rated current
• Dielectric voltage withstands 2,000V minimum
• Terminal accommodation for #14-#10 AWG copper stranded or solid conductors
• Flammability rated UL 94V-2
• Operating temperature range from -40°C to 75°C continuous
