USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 1) 5A "C" USB and "A"Ports, Black
SKU: #155438
Part: #USB8300AC5BK
UPC: 883778307416
USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 1) 5A "C" USB and "A"Ports, Black
SKU: #155438
Part: #USB8300AC5BK
UPC: 883778307416
Description

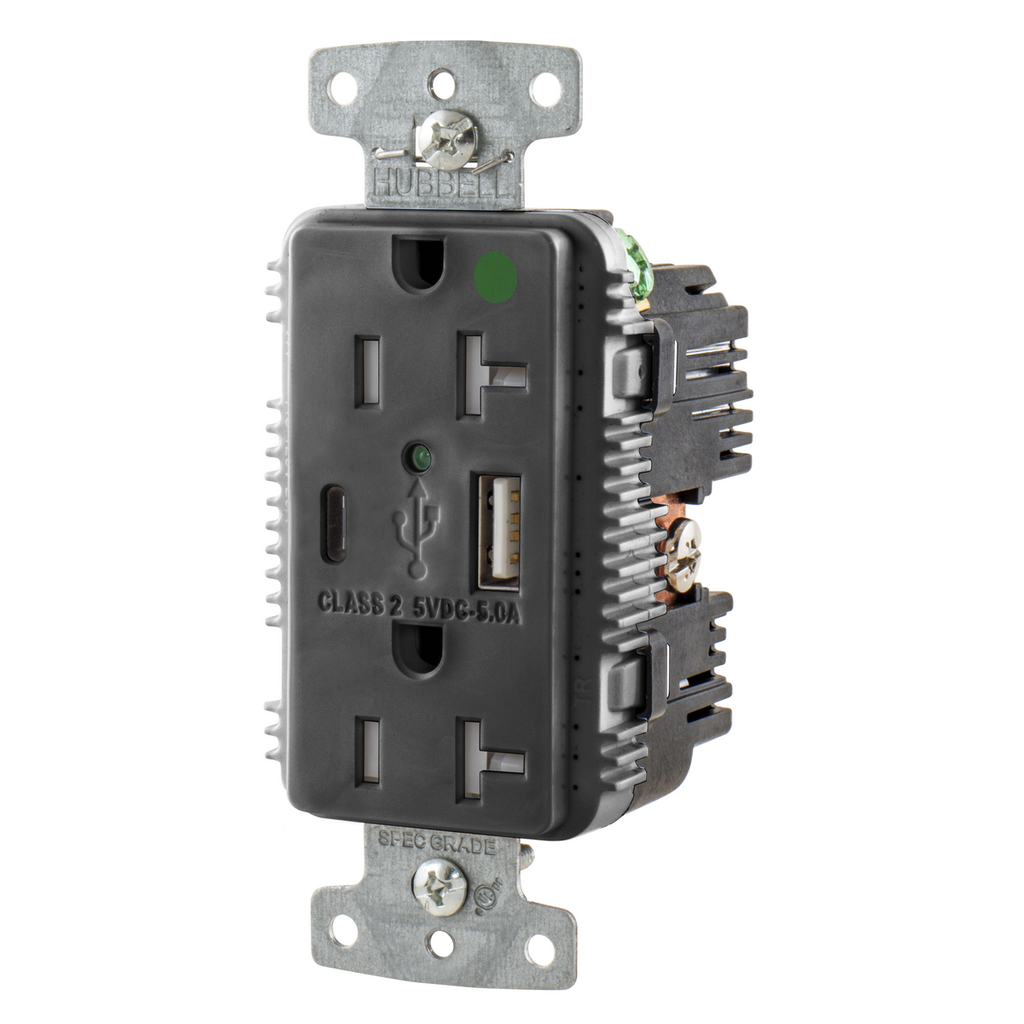

USB Charger Duplex Receptacle, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, USB Charging/Power
This Hubbell USB Charger Duplex Receptacle is a hospital-grade electrical device designed for reliable USB charging and power delivery in indoor dry environments. It features a tamper-resistant duplex receptacle with integrated USB ports, combining one Type A and one Type C USB port capable of delivering up to 5 amps at 5 volts DC. Suitable for healthcare and commercial applications, it supports wiring with #14 to #10 AWG copper conductors and complies with UL and cULus standards, making it a dependable component for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: USB8300AC5BK
- Current Rating: 20 amperes
- Voltage Rating: 125 volts
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- NEMA Rating: 5-20R
- USB Output: 5V DC, 5 Amp total
- USB Ports: Combination of one Type A and one Type C
- Material: Composite
- Color: Black
- Mounting: Mounting Screws
- Connection Type: Terminal Screws (#14-#10 AWG copper conductors only)
- Product Weight: 4.05 lbs
- Width: 2.2 inches
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Certifications: cULus Listed to UL498, UL1310
- Flammability Rating: UL 94V-2
- Operating Temperature: -40°C to 75°C continuous
- Dielectric Voltage Withstand: 2,000V minimum
- USB Port Durability: Rated for 10,000 plug insertions and removals
Features
- Hospital Grade tamper-resistant duplex receptacle
- High power USB charger with 5 Amp, 5 Volt output
- Combination USB ports: one Type A and one Type C
- Green LED indicator shows USB port power status
- Certified for current interrupting at full rated current
- Plated steel contacts, clamps, and terminal screws for durability
- Stainless steel USB ports for extended durability and corrosion resistance
- Complies with USB Battery Charging Specification BC1.2 and USB Power Delivery 3.0
- Compatible with standard single gang electrical boxes
