USB Charger Duplex Receptacle, HospitalGrade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A"Ports, Ivory
SKU: #155121
Part: #USB8200AC5I
UPC: 883778307300
USB Charger Duplex Receptacle, HospitalGrade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A"Ports, Ivory
SKU: #155121
Part: #USB8200AC5I
UPC: 883778307300
Description

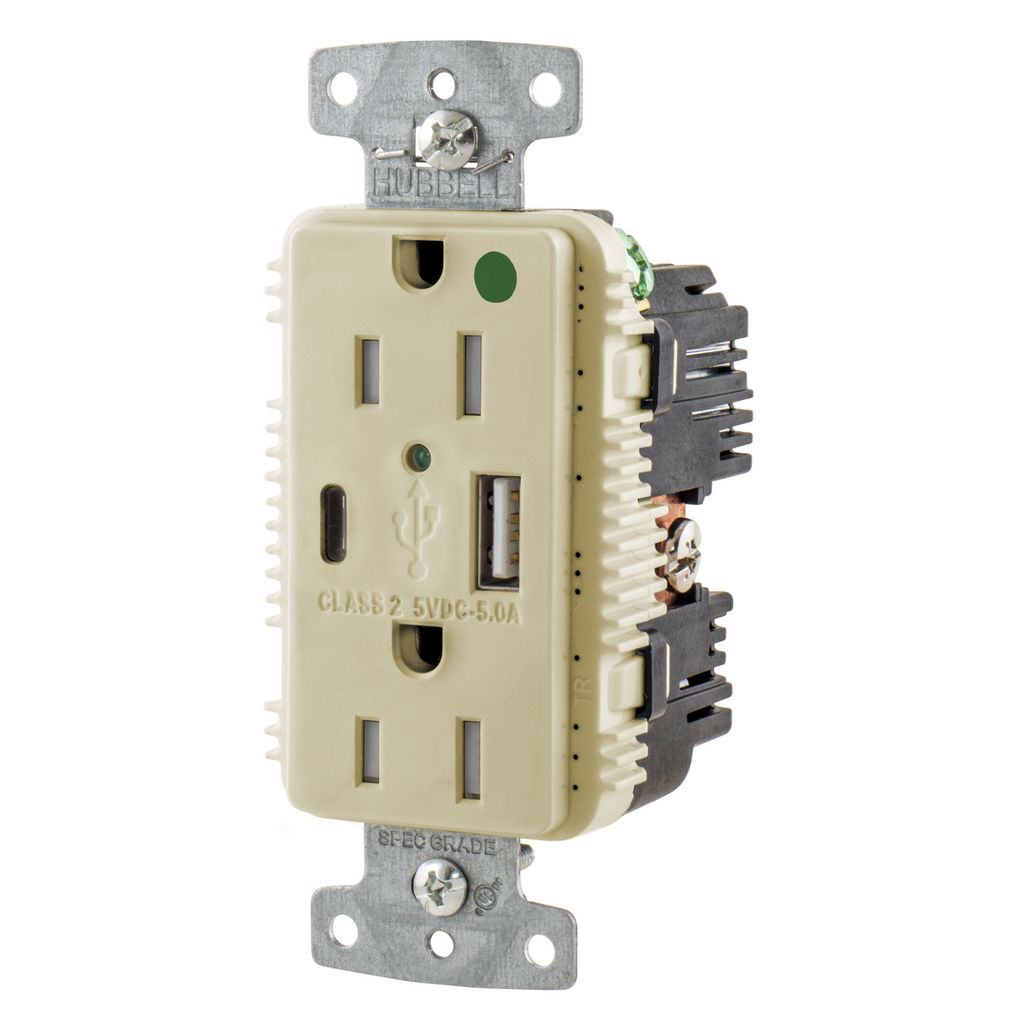

USB Charger Duplex Receptacle, HospitalGrade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A" Ports, Ivory
This hospital-grade USB charger duplex receptacle provides combined electrical power and USB charging capabilities, suitable for healthcare and commercial indoor dry environments. Designed for electrical distributors and switchgear suppliers, it supports 15A, 125V operation with a 2-pole, 3-wire grounding configuration and includes both Type A and Type C USB ports for versatile device charging.
Specifications
- Application: USB Charging/Power
- Current: 15 amperes
- Amperage Rating: 15 A
- NEMA Rating: 5-15R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Color: Ivory
- Width: 2.2 in
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Manufacturer Part #: USB8200AC5I
- Country of Origin: China
Features
- High Power 5 Amp, 5 Volt USB Output
- Combination USB Ports: One Type A, One Type C
- Tamper Resistant Hospital Grade Duplex Compatible
- USB Ports Rated for 10,000 Plug Insertions and Removals
- LED Green Indicator
- Certified for Current Interrupting at Full Rated Current
- Dielectric Voltage Withstands 2,000V Minimum
- Complies with USB BC1.2 Battery Charging and USB Power Delivery 3.0 Specifications
- Terminal Accommodation for #14–#10 AWG Copper Stranded or Solid Conductors
- Flammability Rating UL 94V-2
- Operating Temperature Range: -40°C to 75°C Continuous
