USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding
SKU: #154239
Part: #USB20A
UPC: 883778310034
USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding
SKU: #154239
Part: #USB20A
UPC: 883778310034
Next day delivery
Description

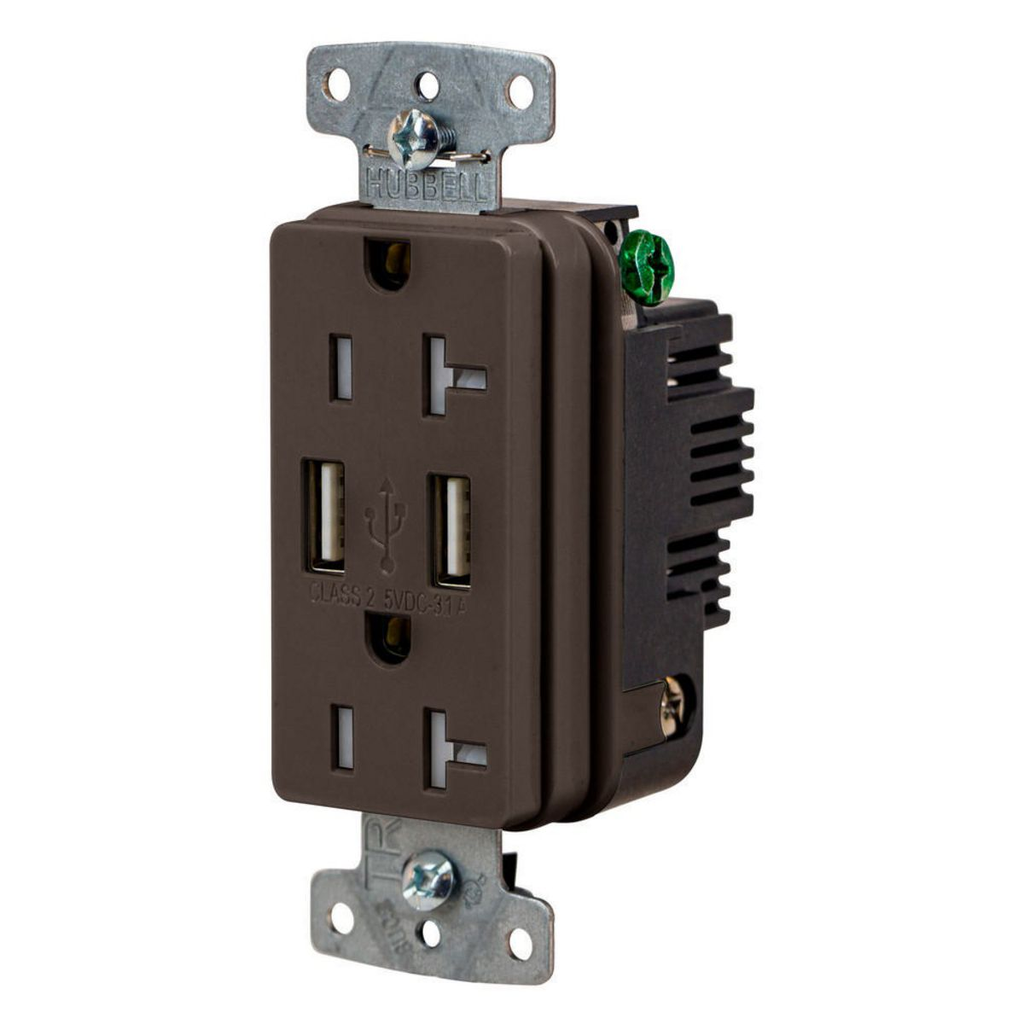

USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding - USB Charging Solutions
This USB Charger Duplex Receptacle provides a combined electrical outlet and USB charging solution designed for indoor dry environments. It supports 20 amperes at 125 volts with a 2-pole, 3-wire grounding configuration, suitable for electrical distributors and lighting solutions requiring integrated wire and cable management. The device features two Type A USB ports delivering a high power 3.1 amp, 5 volt DC output for efficient USB charging alongside standard receptacle use.
Specifications
- Current: 20 amperes
- Voltage Rating: 125V
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- NEMA Rating: 5-20R
- USB Output: 3.1 Amp, 5 Volt DC
- Material: Composite
- Color: Brown
- Width: 2.1 in
- Connection Type: Back Wire Screws
- Mounting Method: Mounting Screws
- Dielectric Strength: 1500 V Withstand
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Compliance: cULus Listed to UL498, UL1310
- Operating Temperature: Maximum continuous 75°C, minimum -40°C (without impact)
- Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
- USB Port Durability: Rated for 10,000 plug insertions and removals
- Manufacturer: Hubbell Wiring Device-Kellems
- Country of Origin: China
Features
- High power USB output of 3.1 Amps at 5 Volts DC for efficient device charging
- Two Type A USB ports integrated with tamper resistant duplex receptacle
- Back wire screw terminals for secure and reliable electrical connections
- Reinforced thermoplastic face and base for durability
- Stainless steel USB port contacts for extended lifecycle
- Complies with USB BC1.2 Battery Charging and USB Power Delivery 3.0 specifications
- Certified for current interrupting at full rated current with 1500 V dielectric voltage withstand
- Designed for standard single gang electrical wall box installation
