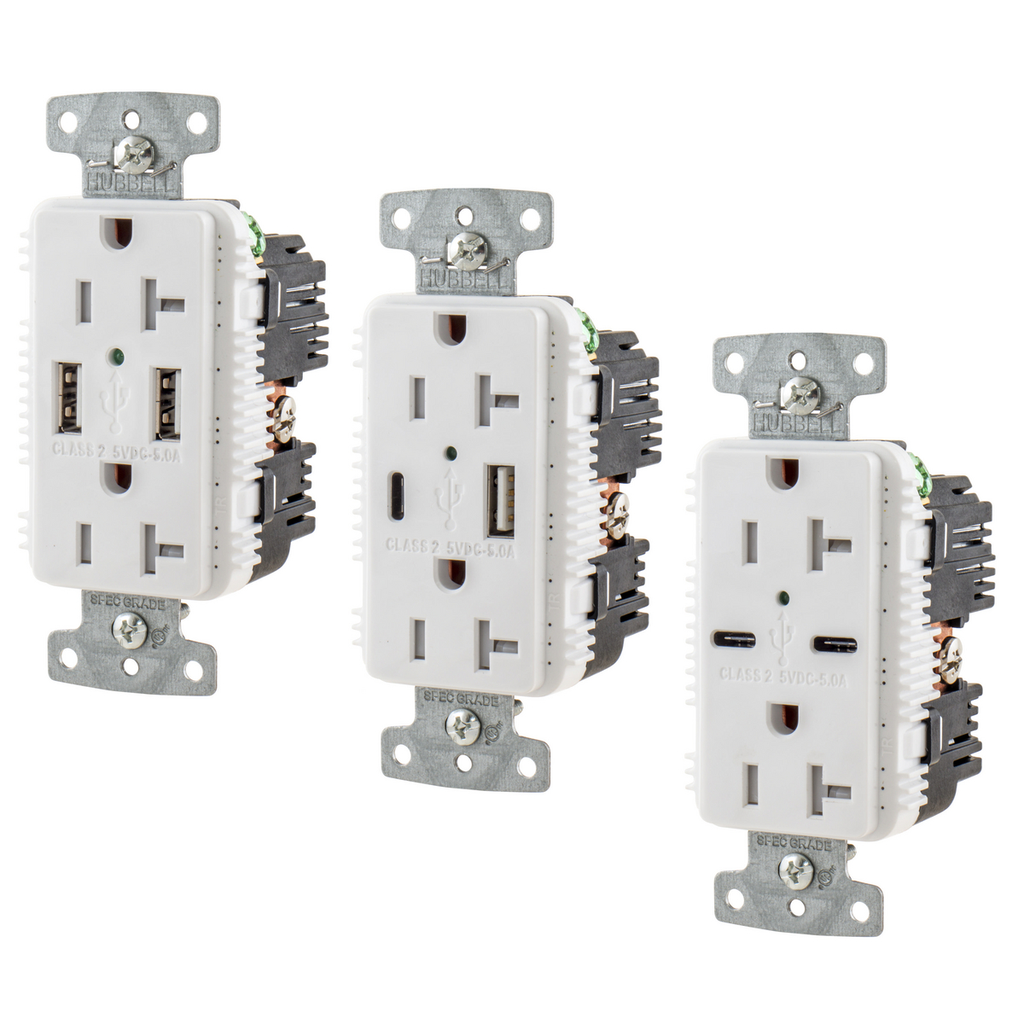

USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 2) 5A USB Ports, White
SKU: #154320
Part: #USB20A5W
UPC: 883778306969
USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 2) 5A USB Ports, White
SKU: #154320
Part: #USB20A5W
UPC: 883778306969
Description
USB Charger Duplex Receptacle, 20A 125V with USB Charging Ports
This USB charger duplex receptacle is designed for USB charging and power applications, providing both standard electrical outlets and integrated USB ports. Suitable for indoor dry environments, it supports 20 amperes at 125 volts and features a 2-pole, 3-wire grounding configuration. Ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connectivity and USB power integration.
Specifications
- Application: USB Charging/Power
- Current: 20 amperes
- Voltage Rating: 125V
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Color: White
- Width: 2.1 in
- Mounting: Mounting Screws
- Connection: Terminal Screws
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Product Weight: 4.0 lbs
- Manufacturer: Hubbell Wiring Device-Kellems
- Country of Origin: China
- Manufacturer Part #: USB20A5W
Features
- Duplex receptacle with two 5A USB Type A charging ports
- 20A, 125V rating supports high power electrical devices
- Composite construction for durability
- Terminal screw connections for secure wiring
- Compatible with standard 5-20R NEMA configurations
- Designed for mounting with screws for stable installation
