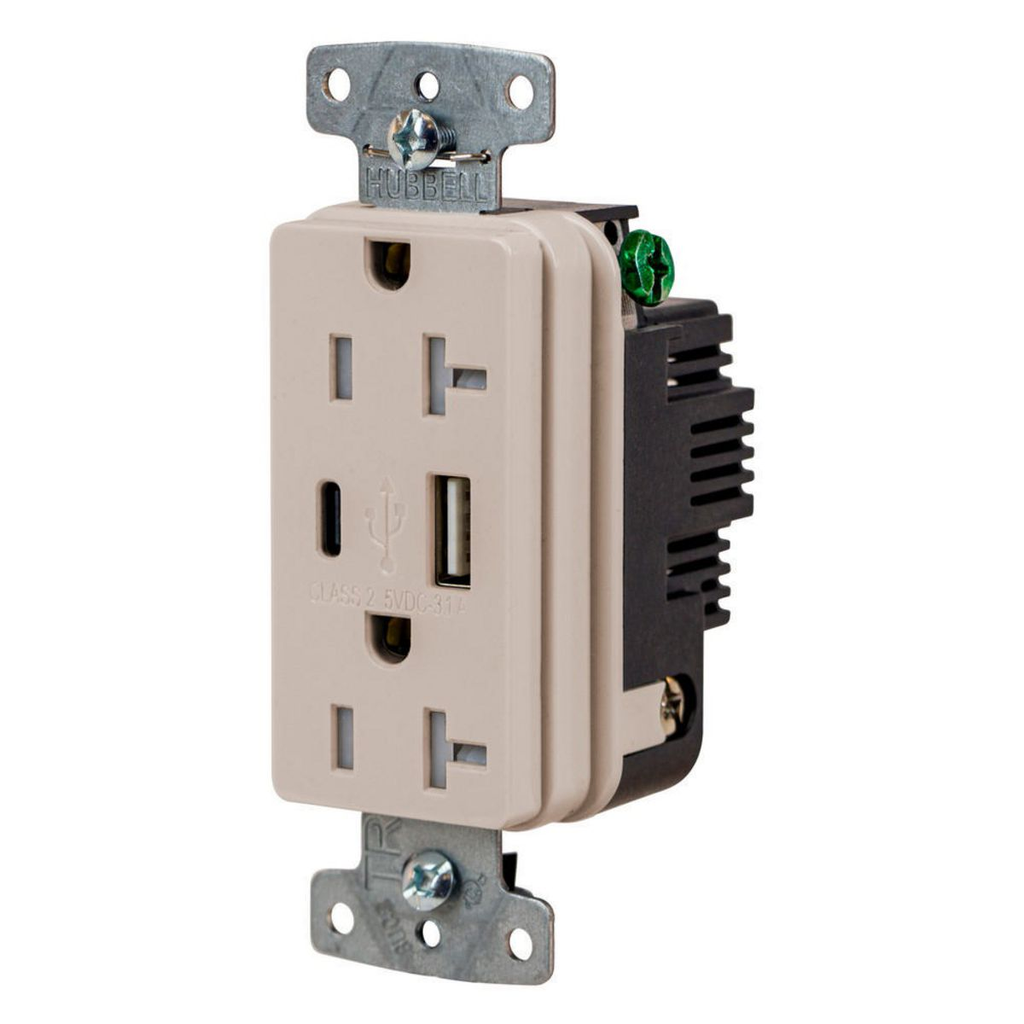

USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding – USB Charging Solution

This USB Charger Duplex Receptacle is designed to provide combined electrical power and USB charging capability in a standard single gang opening, suitable for residential and commercial electrical distributors and lighting solutions providers. It integrates a 20 amp, 125 volt duplex receptacle with dual USB ports (one Type A and one Type C), delivering up to 3.1 amps DC output for charging portable electronics. The device is ideal for applications requiring both traditional power outlets and USB charging, supporting efficient power delivery in indoor dry environments.

Specifications

• Application: USB Charging/Power
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Connection: Back Wire Screws
• Mounting Method: Mounting Screws
• Material: Composite
• Color: Almond
• Width: 2.1 in
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Product Weight: 3.0 lbs
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: USB20ACLA

Features

• Dual USB ports including one Type A and one Type C for versatile charging options
• 3.1 amp DC USB output capable of charging two tablets simultaneously
• Tamper-resistant duplex receptacle for enhanced safety
• Back wire screw terminals for secure and reliable wiring
• Compatible with standard single gang electrical wall boxes
• UL and FCC compliant, tested for Class B digital device interference limits
• LED indicator for USB and line voltage power status
• Composite construction for durability and electrical safety
