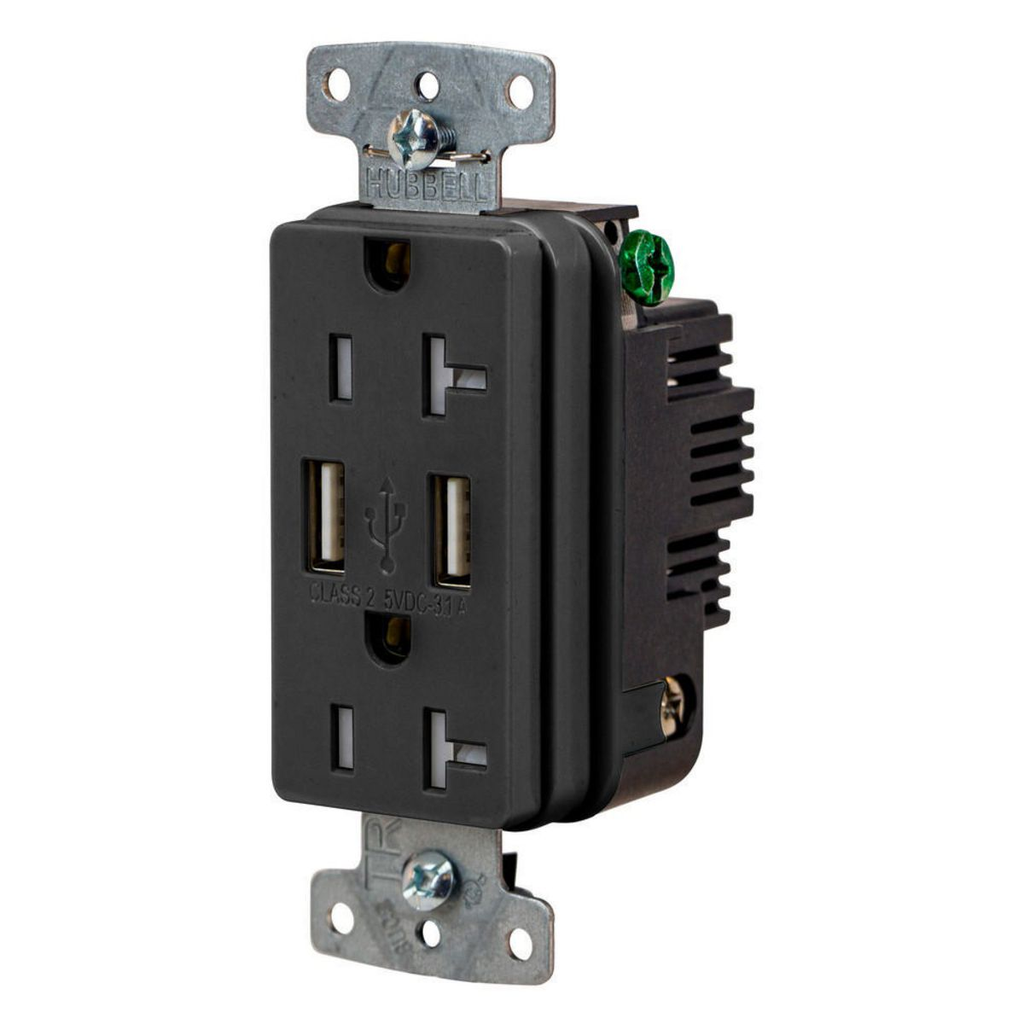

USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding – USB Charging Solutions

This USB Charger Duplex Receptacle is designed for electrical distributors and lighting solutions providers seeking reliable wire and cable accessories with integrated USB charging capabilities. It features a 20-amp, 125-volt rating suitable for residential and commercial indoor dry environments. The device combines two standard duplex receptacles with two Type A USB ports delivering a high power 3.1 Amp, 5 Volt DC output for efficient USB charging.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB20ABK
• Current Rating: 20 amperes
• Voltage Rating: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Composite
• Color: Black
• Connection Type: Back Wire Screws
• Mounting Method: Mounting Screws
• Product Weight: 3.0 lbs
• Width: 2.2 in
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• USB Output: 3.1 Amp, 5 Volt DC (Two Type A USB Ports)
• Terminal Accommodation: #14 to #10 AWG copper stranded or solid conductor
• Certifications: cULus Listed to UL498, UL1310
• Flammability Rating: UL 94V-2
• Operating Temperature: Maximum continuous 75°C, minimum -40°C (without impact)

Features

• High power USB charging ports rated for 10,000 plug insertions
• Tamper resistant grade duplex receptacle compatible with standard wiring devices
• Back wire screw connections for secure and reliable wiring
• Reinforced thermoplastic face and base for durability
• Zinc plated steel mounting strap and screws for corrosion resistance
• Complies with USB BC1.2 Battery Charging and USB Power Delivery 3.0 specifications
• Designed for installation by qualified electricians following NEC and local codes
