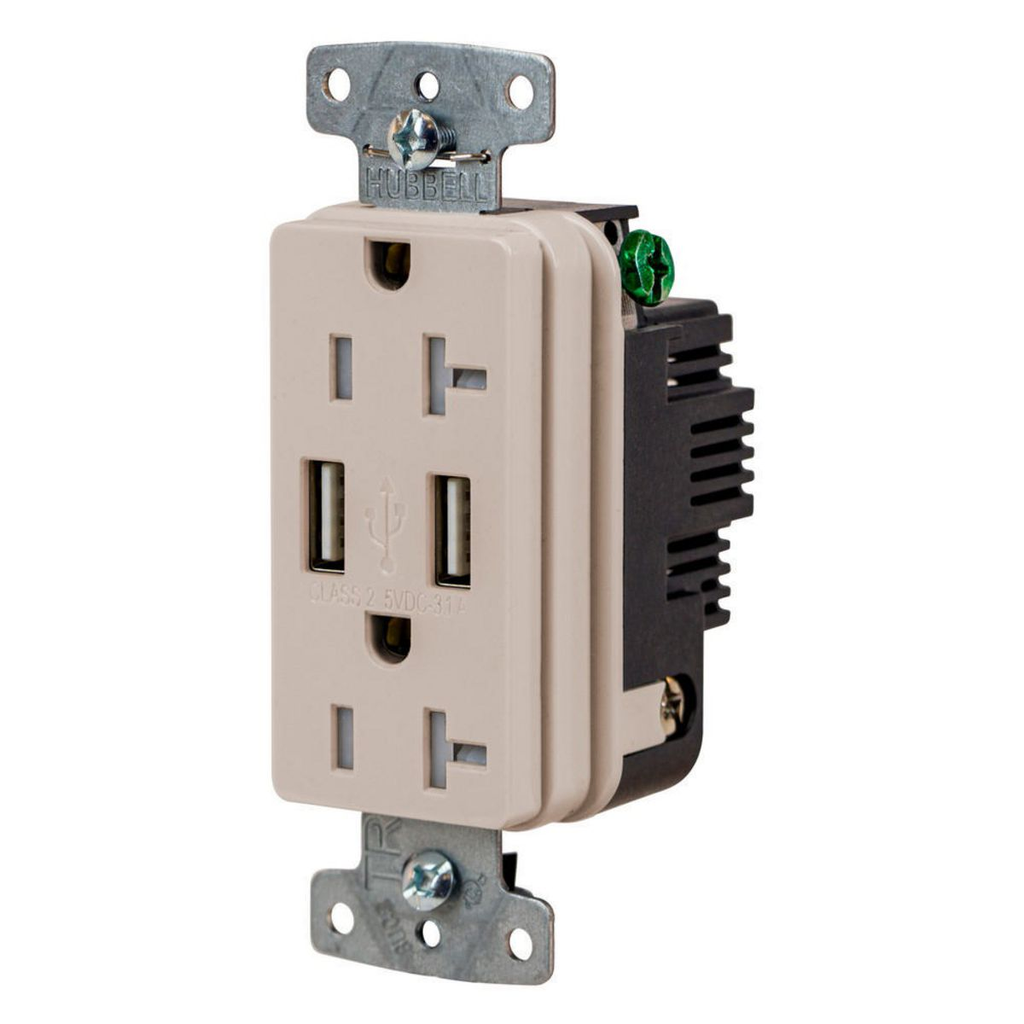

USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding – USB Charging Solutions

This USB Charger Duplex Receptacle provides combined electrical and USB charging power in a single device. Designed for USB Charging/Power applications, it features two 3.1 Amp USB ports alongside a 20 Amp, 125 Volt, 2-pole, 3-wire grounding duplex receptacle. Ideal for residential and commercial electrical distributors, lighting solutions, wire and cable, or switchgear suppliers, this device supports simultaneous charging of portable electronics while delivering standard power outlets.

Specifications

• Amperage: 20 amperes
• Voltage: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Connection: Back Wire Screws
• Mounting Method: Mounting Screws
• Material: Composite
• Color: Almond
• Width: 2.2 in
• Product Weight: 3.0 lbs
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB20ALA
• Country of Origin: China

Features

• Duplex receptacle with two integrated USB charging ports delivering a combined 3.1 Amp DC output
• Back wire screw terminals for secure electrical connections
• Tamper-resistant design enhances safety
• Compatible with standard single gang electrical boxes (minimum 3” x 2” x 2-1/2”)
• Complies with FCC Class B digital device limits to minimize interference
• Energy efficient USB charger with LED indicator for power status
• Composite construction provides durability and electrical insulation
