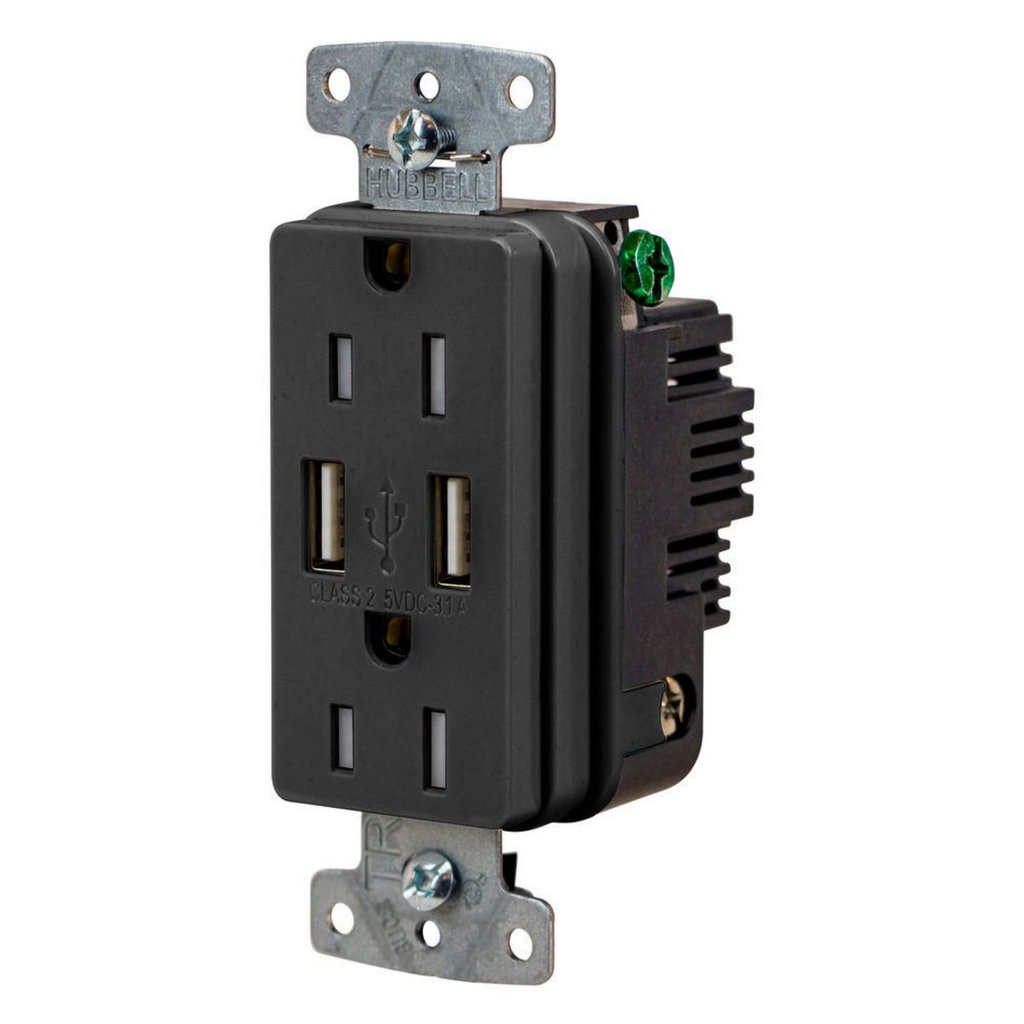

USB Charger Duplex Receptacle, 15A 125V – USB Charging Power Outlet

This USB Charger Duplex Receptacle provides a reliable solution for electrical distributors and lighting solutions providers seeking integrated USB charging capabilities alongside standard power outlets. Designed for indoor dry environments, it combines a 15 ampere, 125 volt duplex receptacle with two 3.1 amp, 5 volt USB Type A ports. Ideal for applications requiring simultaneous power and USB charging, this device supports wiring configurations common in commercial and residential settings.

Specifications

• Amperage: 15 amperes
• Voltage Rating: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire grounding
• USB Ports: Two Type A, 3.1 Amp, 5 Volt output
• NEMA Rating: 5-15R
• Material: Composite face and base with zinc plated steel mounting strap
• Connection Type: Back Wire Screws
• Mounting Method: Mounting Screws
• Dielectric Strength: Withstands 1500 V minimum
• Environmental Conditions: Indoor dry locations unless additional protection is provided
• Product Weight: 3.05 lbs
• Dimensions: Width 2.1 inches
• Country of Origin: China
• Certifications: cULus Listed to UL498 and UL1310

Features

• High power USB output rated at 3.1 Amps, 5 Volts DC
• Two USB Type A ports rated for 10,000 plug insertions and removals
• Tamper resistant grade duplex receptacle compatible with standard wiring
• Stainless steel USB port contacts for durability
• Certified for current interrupting at full rated current
• Complies with USB Battery Charging Specification BC1.2 and USB Power Delivery 3.0
• UL 94V-2 flammability rating ensuring fire resistance
• Rated for operation from -40°C to 75°C continuous without impact
