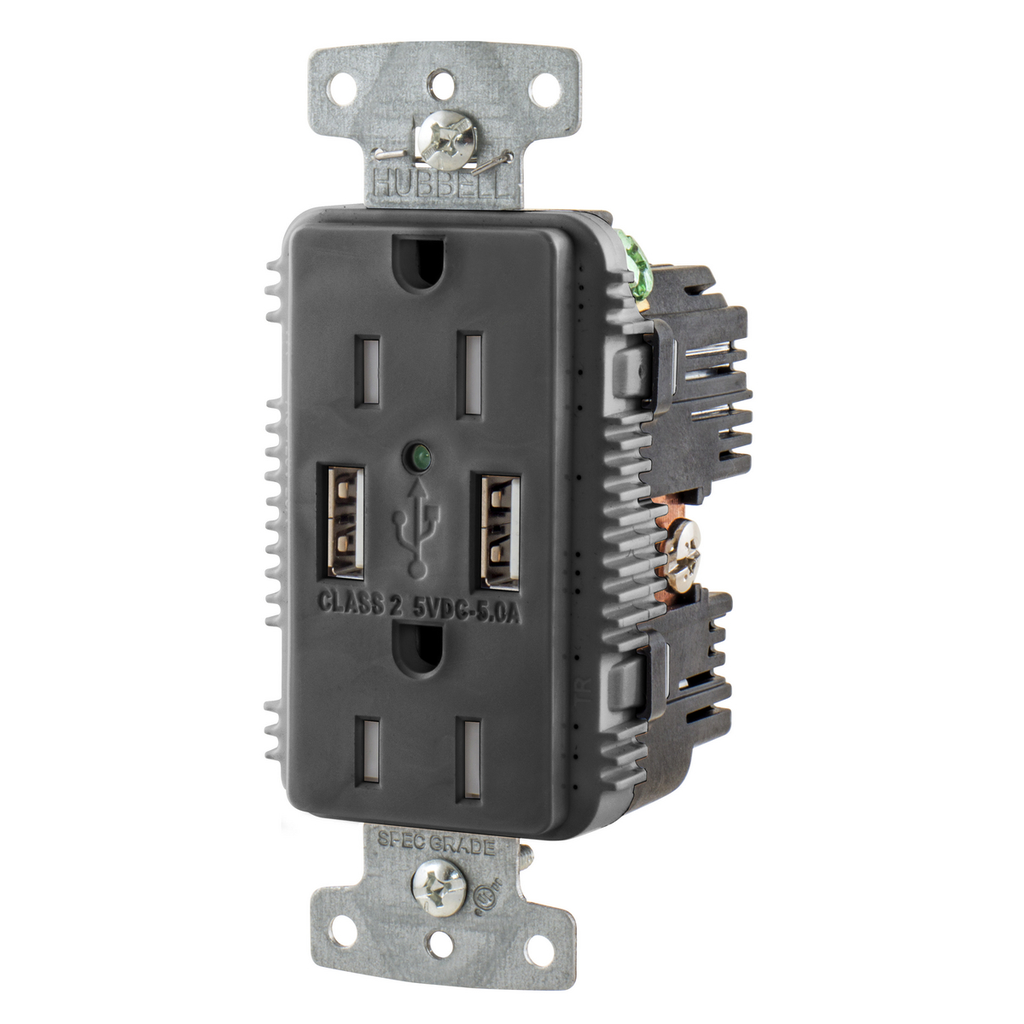

USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 2) 5A USB Ports, Black
SKU: #153719
Part: #USB15A5BK
UPC: 883778306921
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 2) 5A USB Ports, Black
SKU: #153719
Part: #USB15A5BK
UPC: 883778306921
Description
USB Charger Duplex Receptacle with USB Charging Ports
This USB Charger Duplex Receptacle is designed for USB charging and power applications, providing a combined electrical outlet and USB charging solution. It is ideal for electrical distributors and lighting solutions providers looking to offer integrated wire and cable connectivity with USB power functionality. The device features a 15A, 125V duplex receptacle with 2-pole, 3-wire grounding, and includes two 5A USB ports. Its black composite construction and terminal screw connections support reliable installation in indoor dry environments.
Specifications
- Current: 15 amperes
- Amperage Rating: 20 A
- NEMA Rating: 5-15R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Composite
- Color: Black
- Width: 2.1 in
- Product Weight: 4.05 lbs
- Connection: Terminal Screws
- Mounting: Mounting Screws
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: USB15A5BK
Features
- Duplex receptacle with integrated USB charging ports
- Two 5A USB ports for simultaneous device charging
- Grounding type: 2-pole, 3-wire grounding for safety
- Black composite housing for durability and aesthetics
- Terminal screw connection for secure wiring
- Mounting screws included for straightforward installation
- Designed for indoor dry environments unless additional protection is applied
