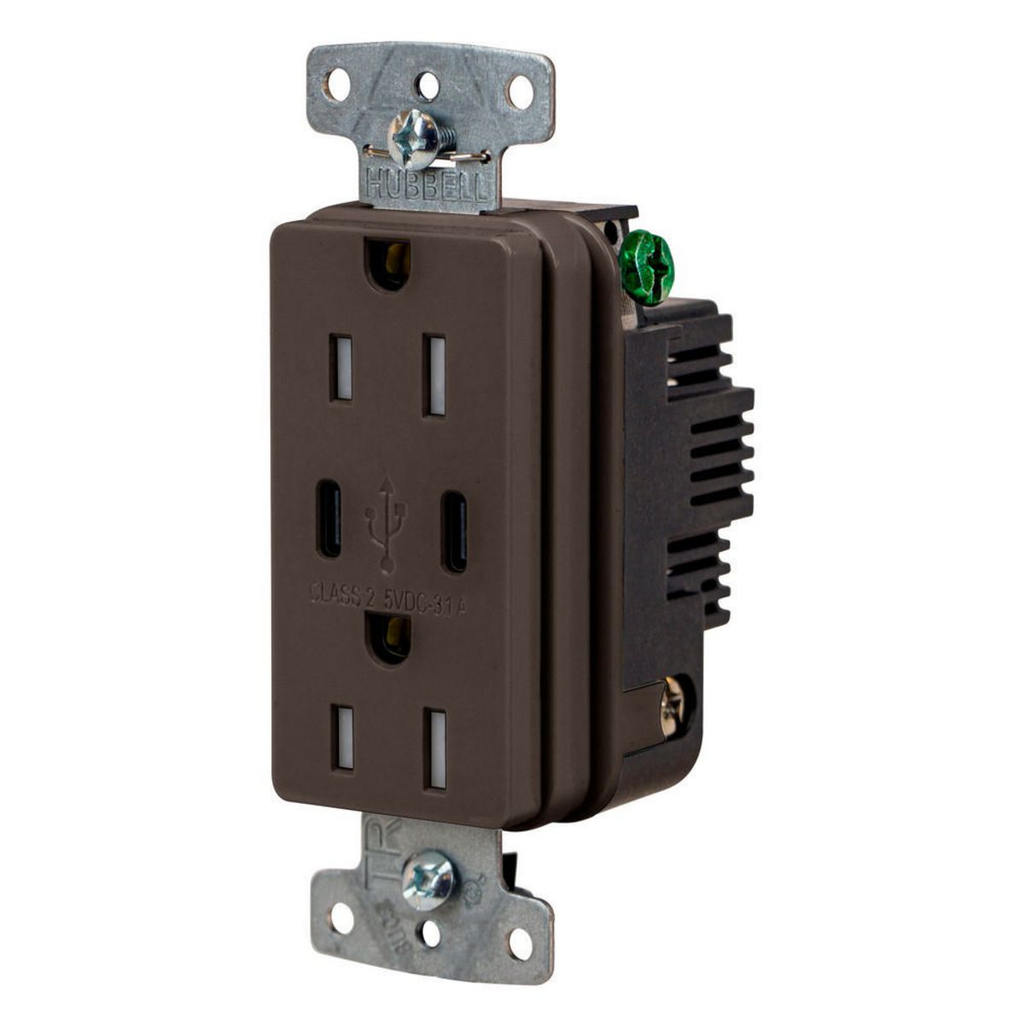

USB Charger Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding – USB Charging Solution

This USB Charger Duplex Receptacle combines a standard 15 amp, 125 volt electrical outlet with two high-power 3.1 amp, 5 volt USB ports, designed for efficient USB charging and power delivery. Ideal for electrical distributors and lighting solution providers, this device integrates wire and cable connectivity with tamper-resistant duplex receptacle functionality, suitable for indoor dry environments. It supports 2-pole, 3-wire grounding wiring and is compatible with standard 3-inch by 2-inch by 2.5-inch electrical wall boxes.

Specifications

• Current Rating: 15 amperes
• Voltage Rating: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-15R
• USB Output: 3.1 Amp, 5 Volt DC
• Connection Type: Back Wire Screws
• Material: Composite
• Color: Brown
• Width: 2.1 in
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Product Weight: 4.0 lbs
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China
• Certifications: cULus Listed to UL498, UL1310

Features

• High power USB charging with 3.1 Amp, 5 Volt output suitable for multiple device charging
• Two Type A USB ports rated for 10,000 plug insertions and removals
• Tamper resistant duplex receptacle design enhances safety and code compliance
• Back wire screw terminals accommodate #14 to #10 AWG copper conductors
• Reinforced thermoplastic face and base provide durability
• Stainless steel USB port construction for extended reliability
• Certified for current interrupting at full rated current and complies with USB BC1.2 Battery Charging and Power Delivery Specifications
• UL 94V-2 flammability rating with operating temperature range from -40°C to 75°C continuous
