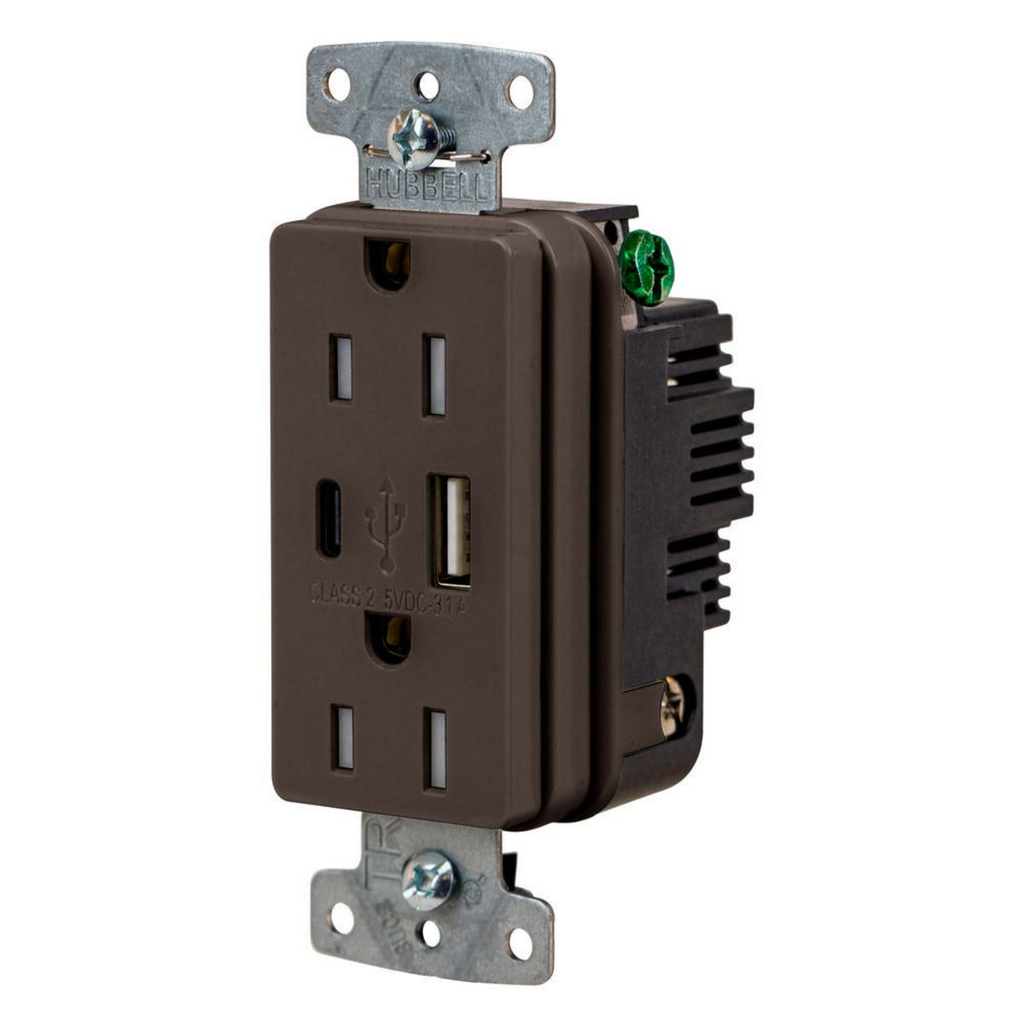

USB Charger Duplex Receptacle, 15A 125V with USB Charging

This USB Charger Duplex Receptacle is designed for electrical distributors and lighting solutions providers requiring integrated power and USB charging capabilities. It offers a 15 amp, 125 volt duplex receptacle with 2-pole, 3-wire grounding and includes dual USB ports—a 3.1 amp "C" and "A" port—for charging USB-powered devices. Ideal for indoor dry environments, this device supports wire and cable installations with back wire screw connections and mounting screws for secure installation.

Specifications

• Application: USB Charging/Power
• Current: 15 amperes
• Amperage Rating: 15 A
• Voltage: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-15R
• Connection: Back Wire Screws
• Mounting Method: Mounting Screws
• Material: Composite
• Color: Brown
• Width: 2.1 in
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• USB Charging Ports: (1) 3.1 A USB-C and USB-A ports
• Product Weight: 3.2 lbs
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB15AC

Features

• Integrated USB charger supplying up to 3.1A DC for USB-powered devices
• Tamper resistant duplex receptacle compliant with NEC box fill requirements
• Back wire screw terminals accommodate #14 to #10 AWG copper conductors
• Compact design suitable for standard single gang electrical wall boxes
• Class B digital device compliant with FCC part 15 for reduced interference
• Durable composite construction with brown finish for aesthetic integration
• Installation by qualified electricians recommended per national and local codes

Downloads & Links

• Installation Manuals Asset Reference
• Catalog Full Asset Reference
• Warranty Document Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
