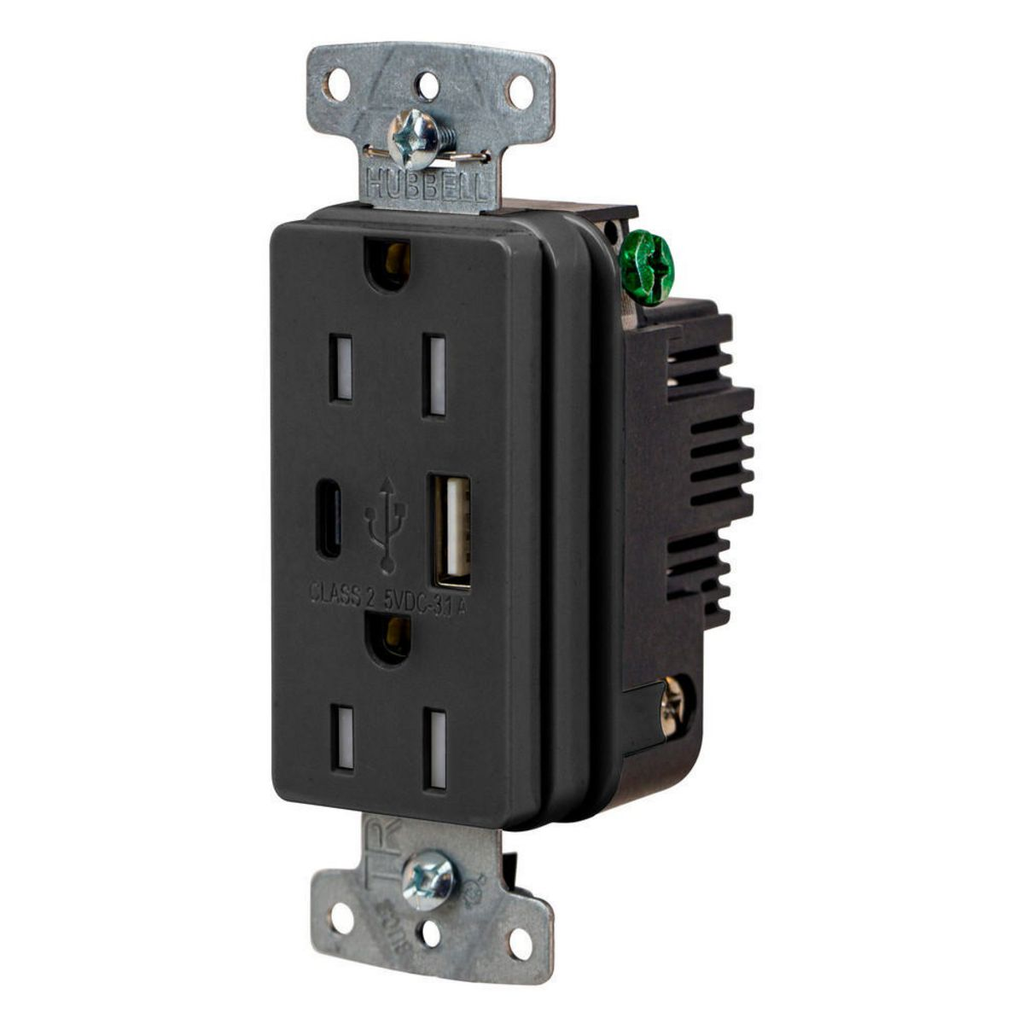

USB Charger Duplex Receptacle 15A 125V with USB Charging Ports

This USB Charger Duplex Receptacle provides a combination of standard electrical outlets and high-power USB charging ports, designed for indoor use in dry environments. It is suitable for electrical distributors and lighting solutions requiring integrated wire and cable devices with USB power capabilities. The device features tamper-resistant duplex receptacles rated at 15 amperes and 125 volts, with two USB ports (one Type-A and one Type-C) delivering a combined 3.1 Amp, 5 Volt DC output for efficient charging of electronic devices. It is ideal for installation in standard single-gang electrical boxes and supports back wire screw connections for secure wiring.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: USB15ACBK
• Current Rating: 15 amperes
• Voltage Rating: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• USB Output: 3.1 Amp, 5 Volt DC (one Type-A port, one Type-C port)
• Material: Composite
• Color: Black
• Dimensions (Width): 2.1 in
• Connection Type: Back Wire Screws
• Mounting Method: Mounting Screws
• NEMA Rating: 5-15R
• Dielectric Strength: 1500 V Withstand
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Product Weight: 2.95 lbs
• Certifications: cULus Listed to UL498, UL1310; Complies with USB BC1.2 Battery Charging and 3.0 Power Delivery Specifications

Features

• High Power 3.1 Amp USB charging output with both Type-A and Type-C ports
• Tamper Resistant Grade Duplex compatible for enhanced safety
• USB ports rated for 10,000 insertion/removal cycles with stainless steel contacts
• Reinforced thermoplastic face and base for durability
• Zinc plated steel mounting strap and screws for corrosion resistance
• Certified for current interrupting at full rated current
• Supports #14 to #10 AWG copper stranded or solid conductors
• Complies with FCC Class B digital device limits to minimize interference
