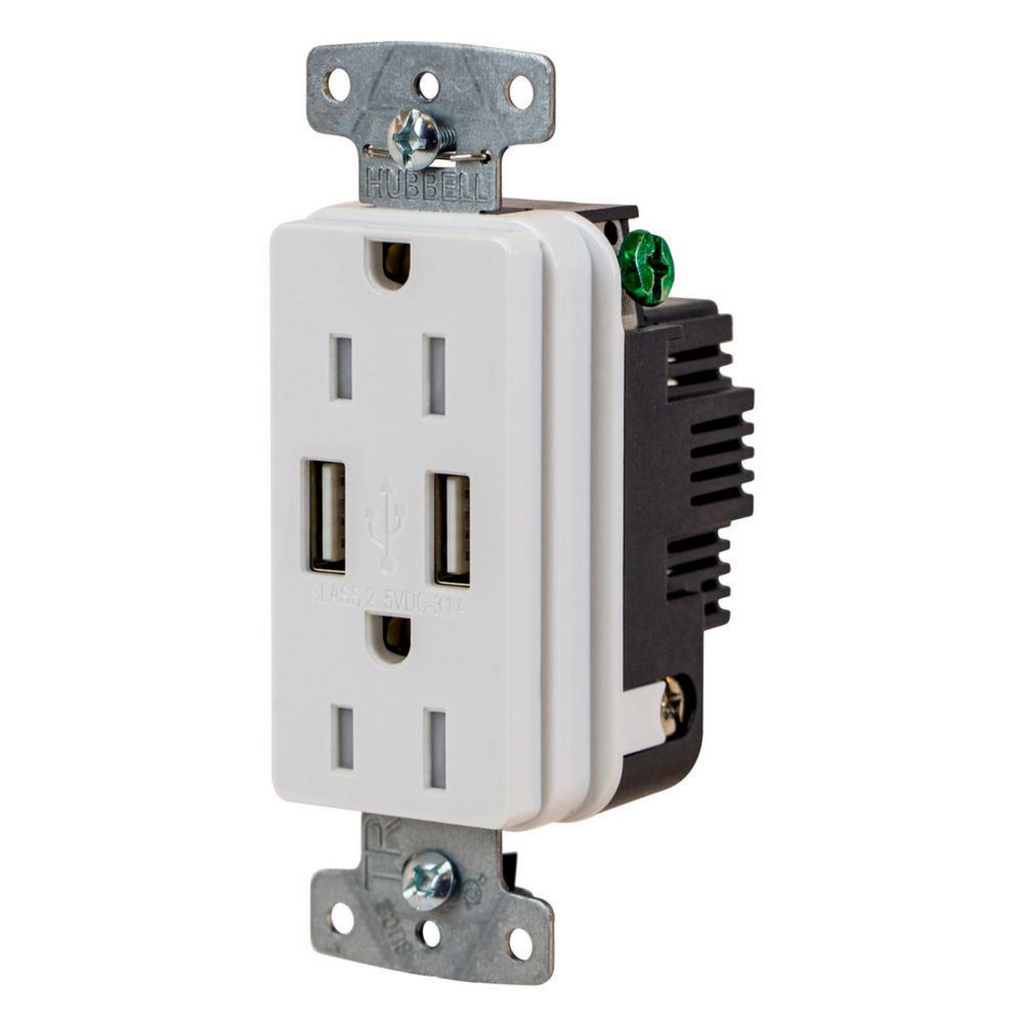

USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding
SKU: #153985
Part: #USB15AW
UPC: 883778309878
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding
SKU: #153985
Part: #USB15AW
UPC: 883778309878
Description
USB Charger Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding | USB Charging Solutions
This USB Charger Duplex Receptacle combines a standard 15 amp, 125 volt electrical outlet with two integrated USB charging ports capable of delivering 3.1 amps total DC output. Designed for indoor dry environments, it is ideal for residential and commercial applications requiring both electrical power and USB charging in a single device. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, it supports efficient power delivery and device charging in one compact unit.
Specifications
- Application: USB Charging/Power
- Amperage Rating: 15 A
- Current: 15 amperes
- Voltage: 125 V
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- NEMA Rating: 5-15R
- Connection: Back Wire Screws
- Mounting Method: Mounting Screws
- Material: Composite
- Color: White
- Width: 2.1 in
- Dielectric Strength: 1500 V Withstand
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Product Weight: 1.3 lbs
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: USB15AW
Features
- Two USB ports providing up to 3.1 A DC output for simultaneous device charging
- Duplex receptacle with tamper-resistant design (implied by NEMA 5-15R rating)
- Back wire screw connections for secure and reliable wiring
- Composite material construction for durability
- Compact size fits standard single gang electrical boxes
- Complies with FCC Class B digital device limits for residential installations
